IN100 Mortise Lock

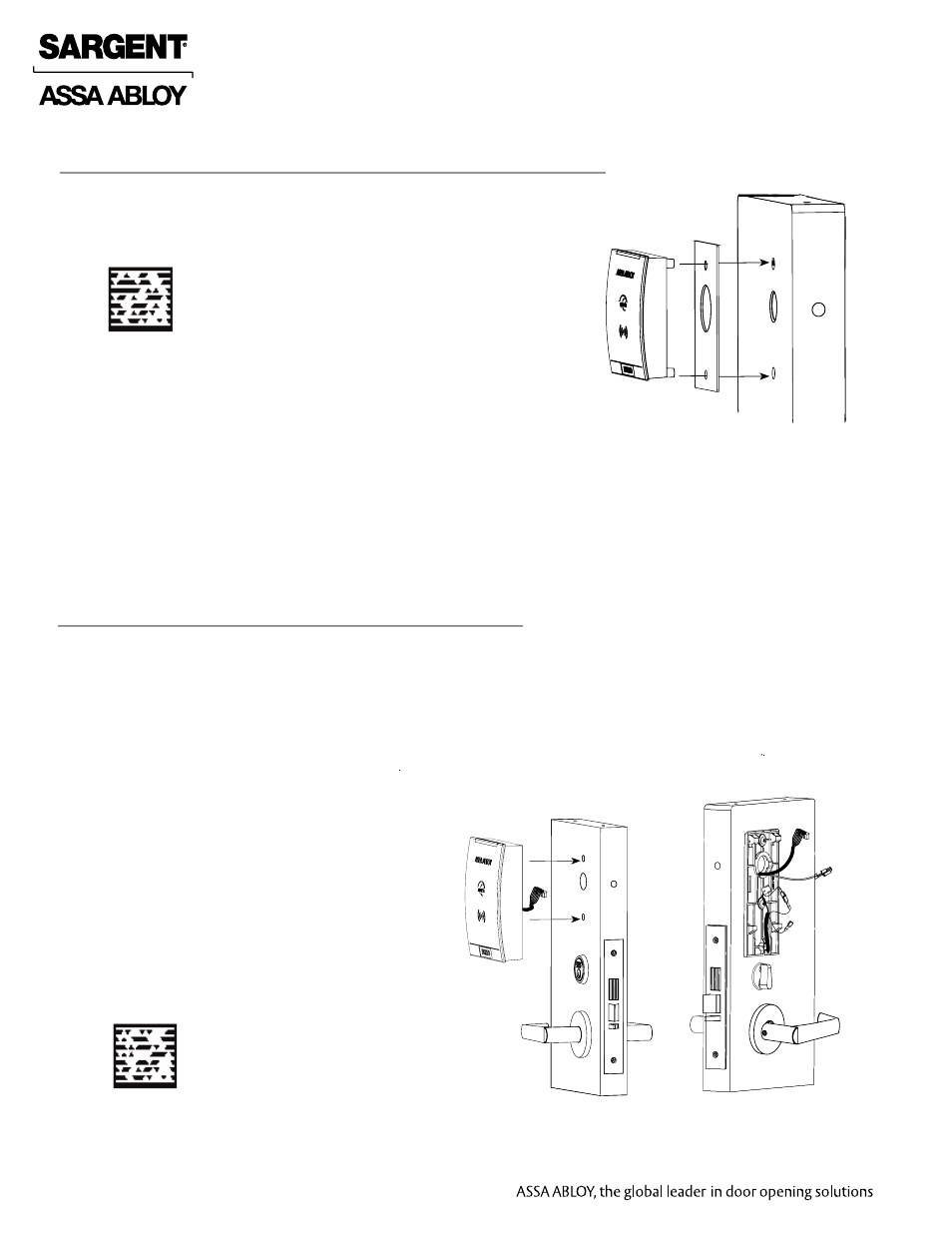

13 Outside Reader Installation
1. Orient the reader so the HID logo is at the bottom
and the lens is at the top.
2. Feed the ribbon cable through the door (from out
side to inside).
3. Install the reader to the outside of door by aligning
the mounting posts with the door preparation holes.
Hold the reader in position with hand.
4. Tighen the (2) through bolts on the inside of the door
to secure the reader.
HID Reader
Outside of Door Inside of Door
Fig. 13A
Fig. 13B
Gasket required for exterior doors (not required for fire rating). Figure 12.
1. Place the gasket on the on the reader posts and ensure the shape is
aligned with the edge of the reader.
12 Gasket Installation (Optional P/N 52-1332)
Fig. 12
Scan this Microsoft® Tag using your mobile phone
to see a video of this installation step. The Microsoft
Tag mobile app is required to scan the Tag.
Download the free mobile app at http://gettag.mobi
Scan this Microsoft® Tag using your mobile phone
to see a video of this installation step. The Microsoft
Tag mobile app is required to scan the Tag.
Download the free mobile app at http://gettag.mobi
