Ultra-cut 400 xt – Tweco 400 XT Ultra-Cut Plasma Cutting System User Manual
Page 35
ULTRA-CUT 400 XT
Manual 0-5275
INSTALLATION
3-13
Art # A-09417
2. Don’t hook onto the fiber to pull on the cable.
Art # A-09418

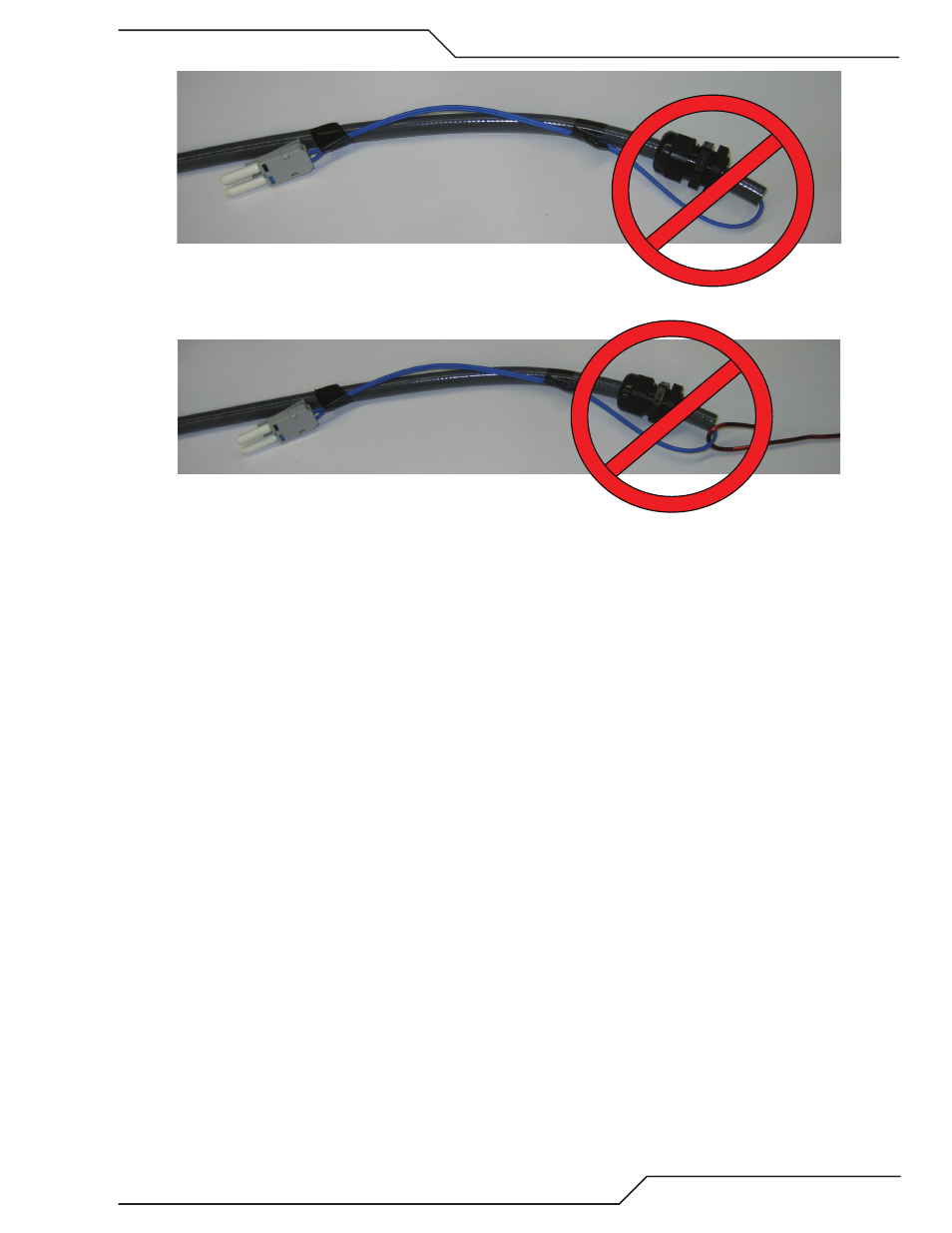

3. Once the fiber cable is installed in the CCM or gas control make sure the strain relief nut is securely tightened onto the
hose so the hose can’t pull out of it like this:
