ULTRA-CUT 400 XT
3-10 INSTALLATION Manual 0-5275

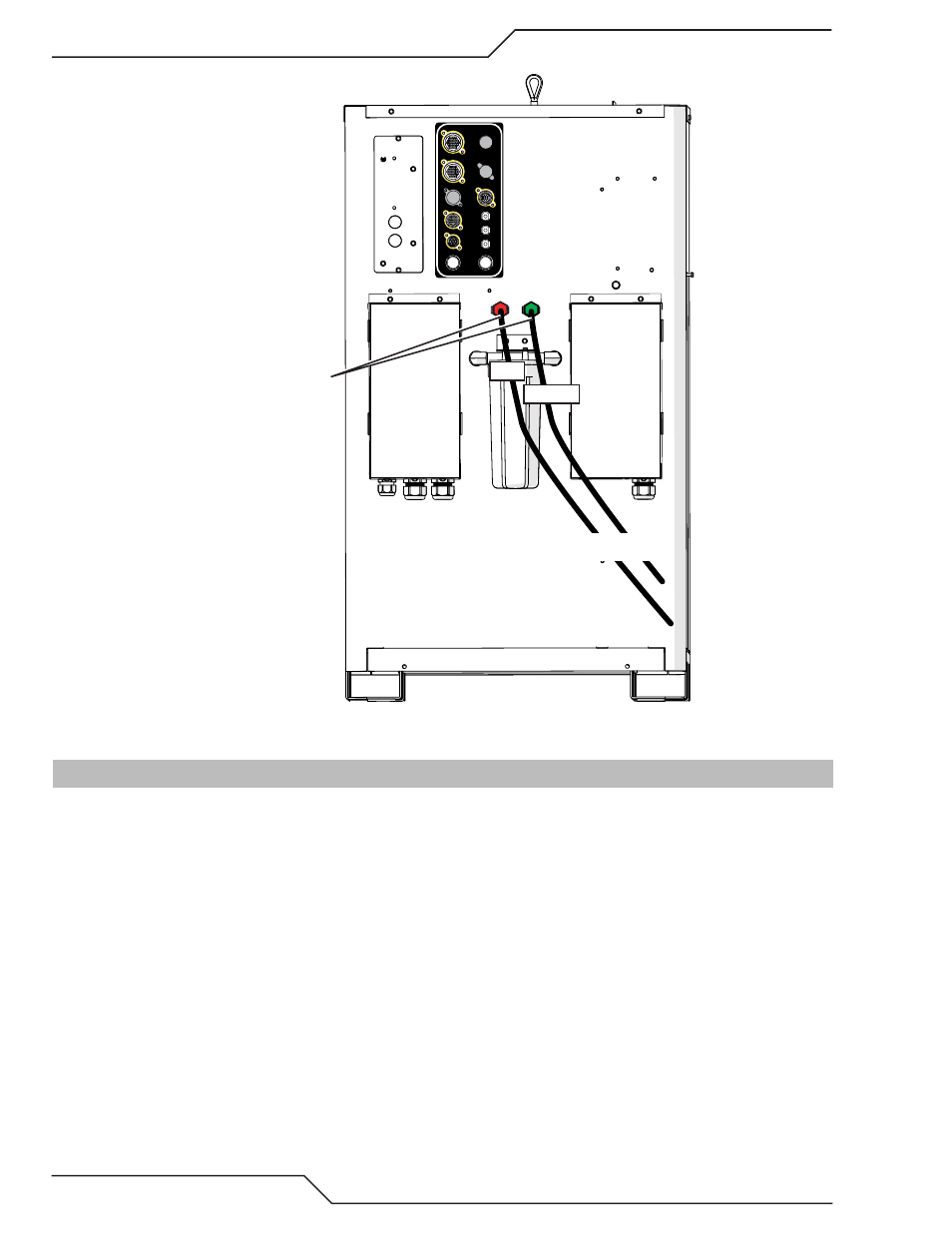

COOLANT
RETURN SUPPLY
Coolant Connections
RED
GREEN
To HE-400 Heat Exchanger
Art # A-11992
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
3.10 Connect Cables for CNC, Remote Arc Starter, GCM and HE 400
1. Connect one end of each cable to the power supply.
2. Connect the other end of the CNC cable to the CNC device .
3. The CNC cable shield must be attached to ground at the CNC end.
