OK to Move output — Active when cutting arc is established, arc is transferred. Used to signal cutting table to start X-Y mo-
tion. Relay contacts rated 1A @ 120 VAC or 2� VDC when SW� set for contacts. When SW� is set for DCV, output supplies 15-1�
VDC @ 100 ma. May be wired parallel with Pilot On to start cutting machine motion as soon as pilot established.
5 OK to Move2 – Provides a second set of N.O. contacts that close when arc transfer is detected. Contacts are rated for maximum
of 2� VAC/DC @ 1A. Simplified CNC Circuit.
5 +10V @ 10ma. For Remote CC Pot – Previously CCM versions if one wanted to use a potentiometer for the Remote Analog
Current Control (CC) input an external 10 V supply was required for Pot High.. Now an isolated (from main plasma circuits) 10V
supply is provided. Recommended value of the pot is 5K or 10K.

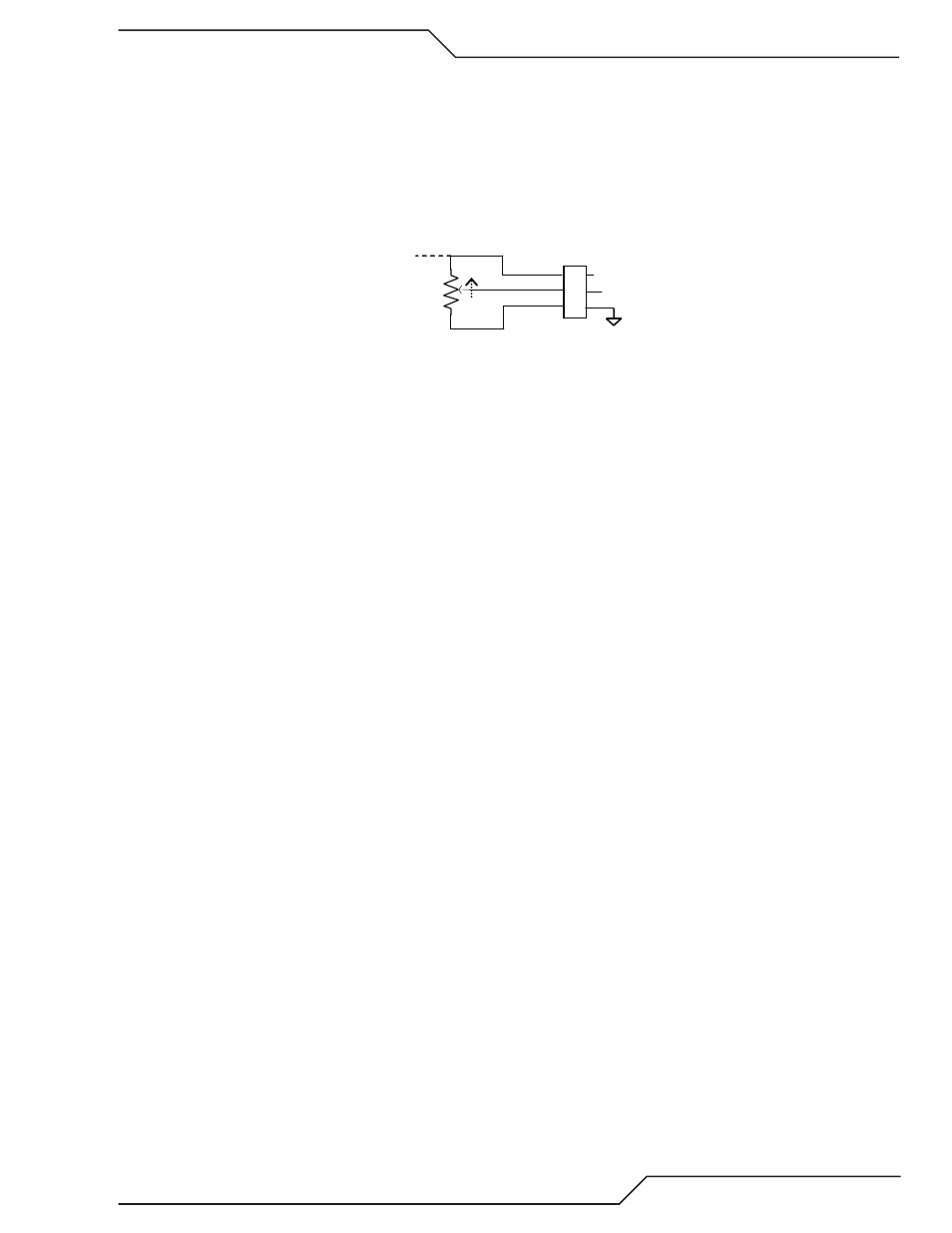

Ext. +10V
11
10
9
TB1
+10V
WIPER
Art # A-09246
5 Plasma Marking Select (Remote) – Plasma Marking, available only with DFC 3000, may be activated with a contact closure
between TB3-1 & TB3-2 if SW�-�, DIP switch on the CPU board (smaller of the 2 CCM boards), is also on. Opening the con-
nection between TB3-1 & TB3-2 switched back to normal cutting mode. For Ultracut power supplies It is OK to leave SW�-� on
whether you are marking or not.
