ULTRA-CUT 400 XT
7-2 TORCH INFORMATION Manual 0-5275

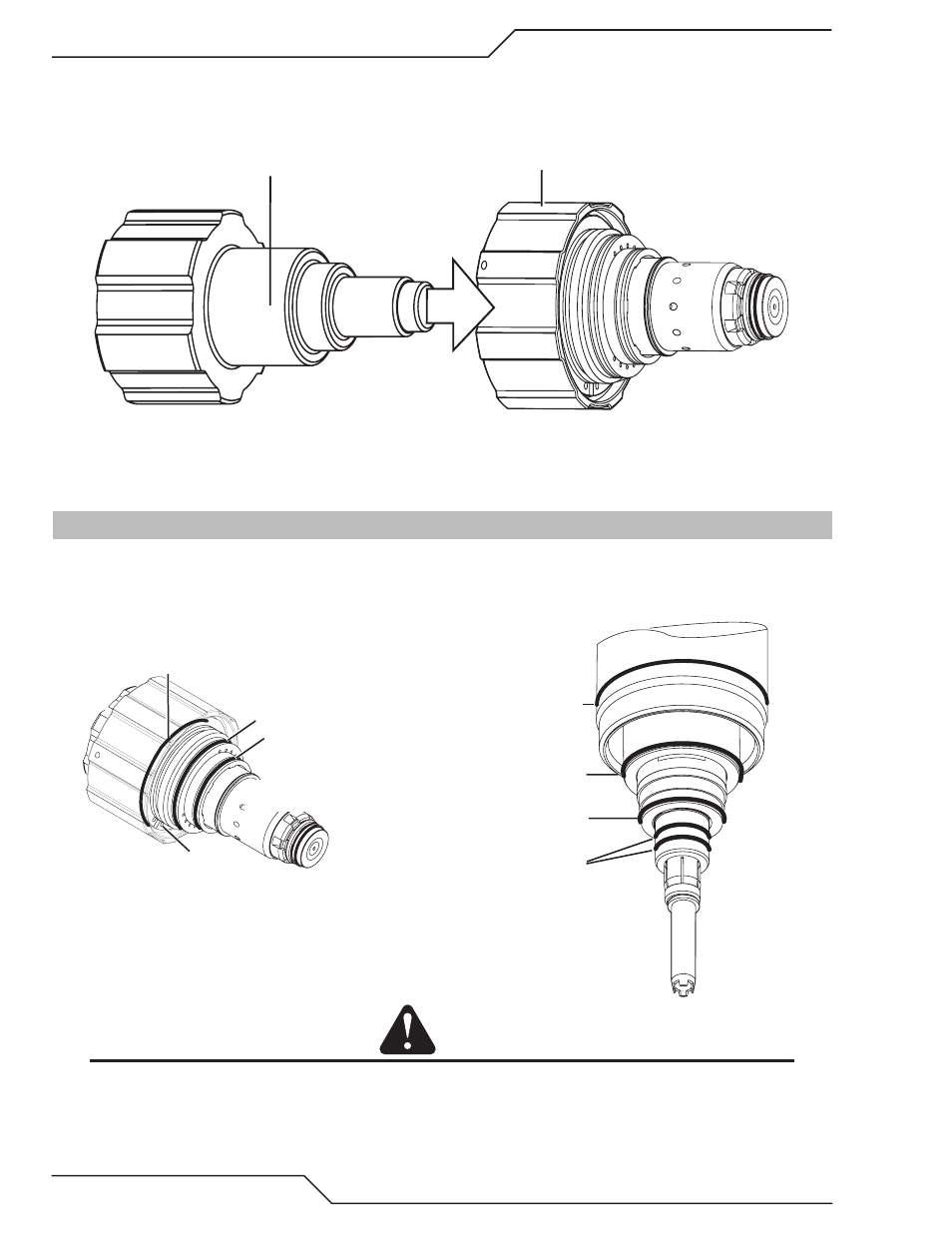

2. Take the Removal Tool off the back of the Cartridge Assembly Use the removal tool to push the consumable parts out of
the Cartridge.
Cartridge Tool Cartridge Assembly
Art # A-04345_AB
7.02 O-Ring Lubrication
Lubricate all three O-Rings on the Cartridge Assembly and all three O-Rings on the Torch Head periodically with O-Ring
Lubricant supplied. Remove the snap ring on the cartridge assembly and slide the locking ring downward for access to the
O-Ring under the locking ring.
O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Locking Ring)
O-Ring, Cat. No. 9-3028
Art # A-04071_AC
Snap Ring
Cartridge Assembly
Art # A-04066_AC
O-Rings
Cat. No. 9-3027
Cat. No. 9-3026
Cat. No. 9-3025
Torch Head
Cat. No. 9-9041
CAUTION
Use only Thermal Dynamics No. 9-4893 O-Ring Lubricant (Christo Lube MCG-129) with this torch part.
Use of other lubricants may cause irreparable damage to the torch.
