Appendix iv: typical mechanized system cable – Tweco 3000 Merlin User Manual
Page 58
APPENDIX
A-4
Manual 0-2532

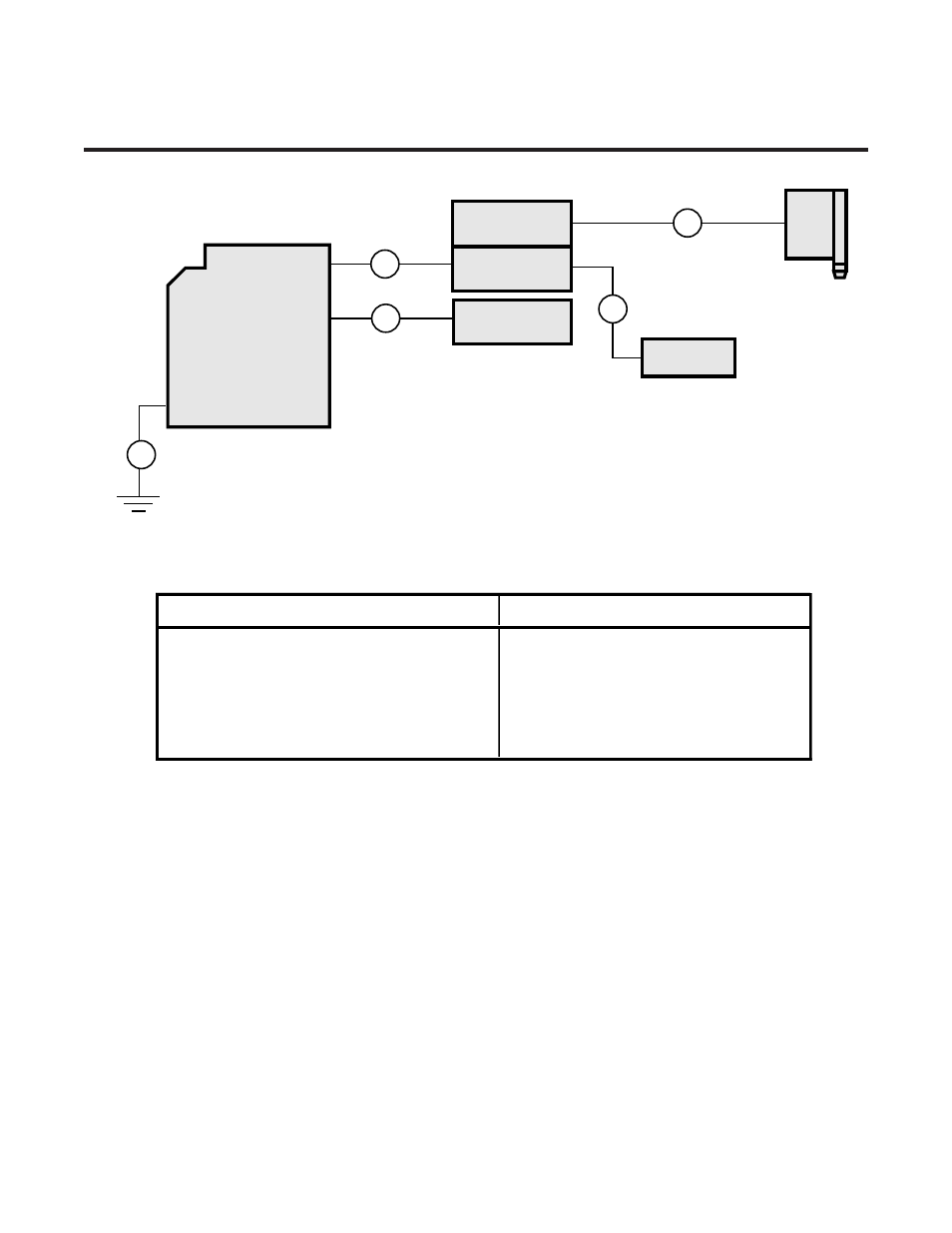

APPENDIX IV: TYPICAL MECHANIZED SYSTEM CABLE
INTERCONNECTION DIAGRAM
Torch Lifter
Assembly
CNC
CONTROL
WORK
GROUND
E
B
POWER
SUPPLY
A-01014
SC-10 Standoff
Control
RC6010 Remote
Control
GC3000 Gas
Control Option
A
D
C
Cable Description
Letter Designation
Remote Control to Power Supply
A
Torch Lifter Assembly to Power Supply
B
Remote Control to CNC Controls
C
Gas Control Option to Power Supply
D
Work (Ground) to Power Supply
E
