OPERATION

4-4

Manual 0-2532

9. Remote Control and CNC Interface Connector

NOTE

For use with Remote Control RC6010 or
Standoff Control SC10. Refer to the Remote
Control (RC6010) Instruction Manual 0-2478
or the Standoff Control (SC10) Instruction
Manual 0-2479 for more information.

REMOTE CONTROL connector (J15) used to inter-
face remote controls with mechanized systems. The
connector can be used to interface the Power Sup-
ply with one of the following:

• Optional Remote Control (RC 6010) which al-

lows the operator to control all system func-
tions from a remote location.

• Optional SC-10 Standoff Control or other stan-

dard control (CNC) which allows the operator
to control various functions of the mechanized
system from a remote location.

10. High Flow Water Shield

Output connector to allow the use of the Optional
High Flow Water Shield on the system.

11. CNC Cable Strain Relief

Used to interface a CNC cable to the Power Base
Unit when the CNC cable does not have a connector
installed. The CNC cable is fed through the strain
relief and connected to an internal terminal strip
(TB2).

12. Optional Gas Selection Interface Connector

Connector used to interface the Power Supply to the
Optional Gas Control (GS3000) Accessory. The Gas
Control Accessory connects to the connector marked
GAS CONTROL (J63).

13. Optional PLASMA GAS Selection

Optional panel with multiple ports (manifolds) for con-
nection to four plasma gases. The gas manifolds
are controlled by the Gas Control Accessory. Each
fitting is an inert B type.

OUTPUT

AIR

PLASMA

INPUT

N

2

PLASMA

INPUT

O

2

PLASMA

INPUT

PLASMA GAS

Ar/H

2

PLASMA

INPUT

A-01011

Plasma Gas

Manifold

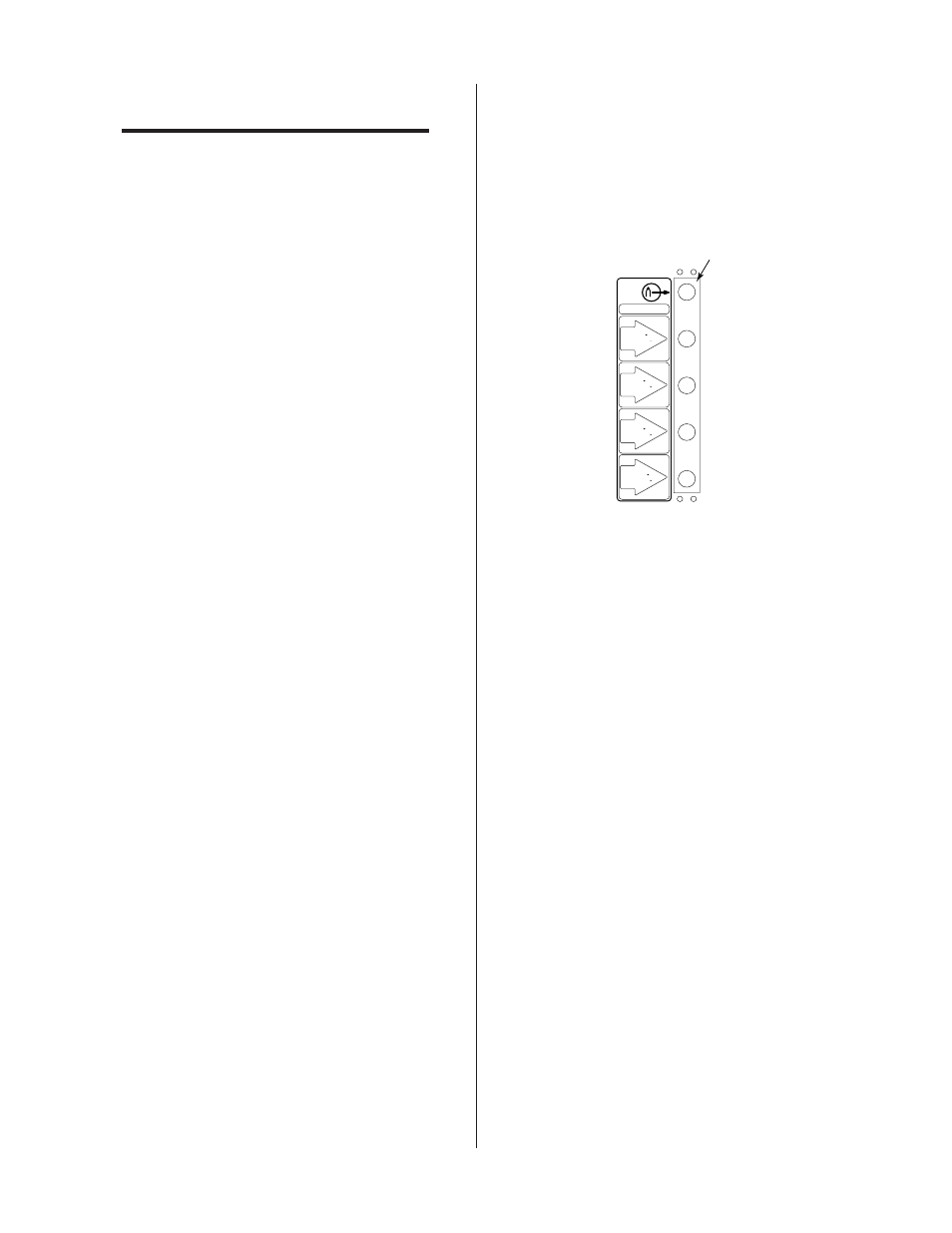

Figure 4-6 Optional PLASMA Gas Selection

14. Optional Gas Secondary (N2) Input Fitting

Optional 1/4" NPT female gas fitting used to supply
the secondary gas (N2) to the system.

15. Optional Gas Secondary (OTHER) Input Fitting

Optional 1/4" NPT female gas fitting used to supply
the secondary gas (OTHER) to the system.
