SoundOff Signal Mighty Night Light - Manual

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns”
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to [email protected].
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
Important! The cable from the back
of the light must be straight and relaxed
for approximately the first inch. This is
necessary to maintain the integrity of
the light and comply with warranty.
OPERATION:
Connect RED wire to +10-30Vdc source
either direct or through a flasher (see
recommended flasher on reverse side)
.
Connect BLACK wire to ground (-).
Wire Diagram
See reverse side for recommended
flasher
Please see reverse for
Technical Specifications
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
EAUSSMBØFWC 6.12
Important Information:
INSTALLATION:
The orientation of the SURFACE MOUNT
LED FLOOD LIGHT is optional. The
light may be mounted vertically or
horizontally.
1) Determine a clean, flat location on
the vehicle to mount the SURFACE
MOUNT LED FLOOD LIGHT.
2) Using the template provided on the
reverse side of this page mark and
drill appropriate holes as shown on
the same surface that the warning
light will be in contact with. Note that
every effort has been made to make
a full scale template but variances
may occur. It is the responsibility
of the installer to ensure accurate
dimensions.
3) Drill the 2-  7/32” holes for the 10-24
carriage bolts.
4) Drill a  3/8” hole for the cable to pass
through the web of the push bumper.
Note: this hole must be free of burrs
and sharp edges to prevent damage
to the wires.
5) Insert cable through 3/8” hole and
insert carriage bolts through 7/32”
holes.
6) Place flat washer and nut on carriage
bolts and tighten using reasonable
force. DO NOT OVER-TIGHTEN!
7) Make electrical connections.

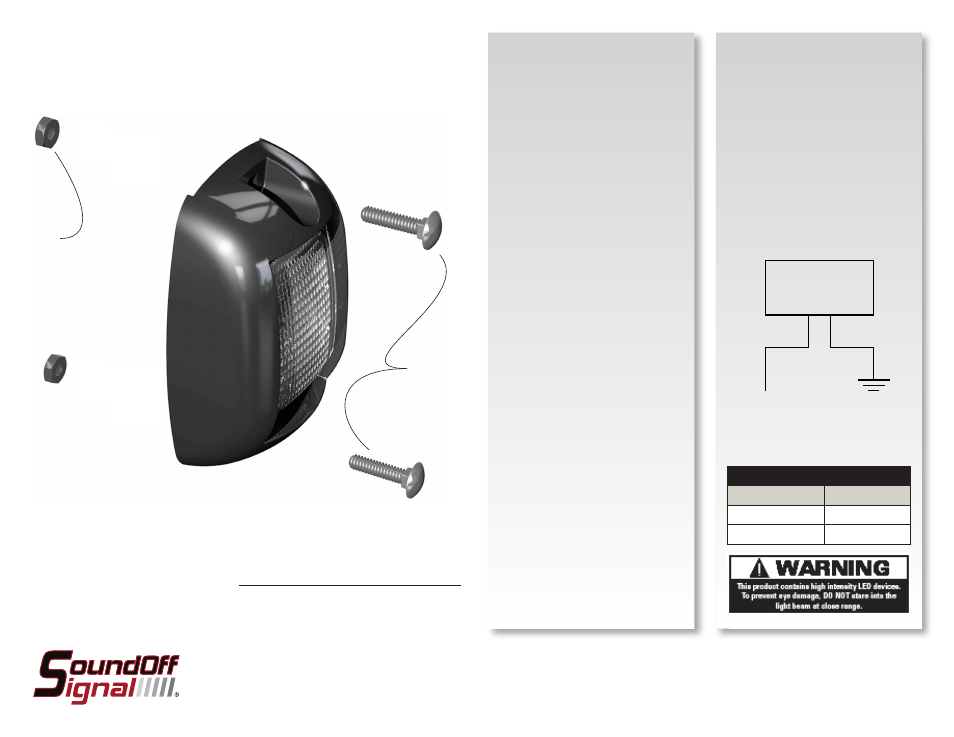

CARRIAGE
BOLTS
WIRE HOOK-UP TABLE
WIRE COLOR: CONNECT TO:
RED +10-30Vdc
BLACK Ground (-)
SURFACE MOUNT LED
FLOODLIGHT
EAUSSMBØFWC - WITH 45° FLOOD LENS
+10-30Vdc Earth (-)
RED BLACK
EAUSSMBØFWC
FLOOD LIGHT
NUT
