SoundOff Signal PAR 36 Work Lights (10-50 Vdc) User Manual

Warning

background image

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns” link along the left

column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to skip the automated message.

Questions or comments that do not require immediate attention may be emailed to [email protected].

1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns” link along the left

column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to skip the automated message.

Questions or comments that do not require immediate attention may be emailed to [email protected].

1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!

ELECTRICAL CONNECTIONS:

See diagram below for required electrical
connections. Connect the RED wire to
+10-50Vdc through a customer supplied
5A fuse and switch. Connect the BLACK
wire to a reliable ground.

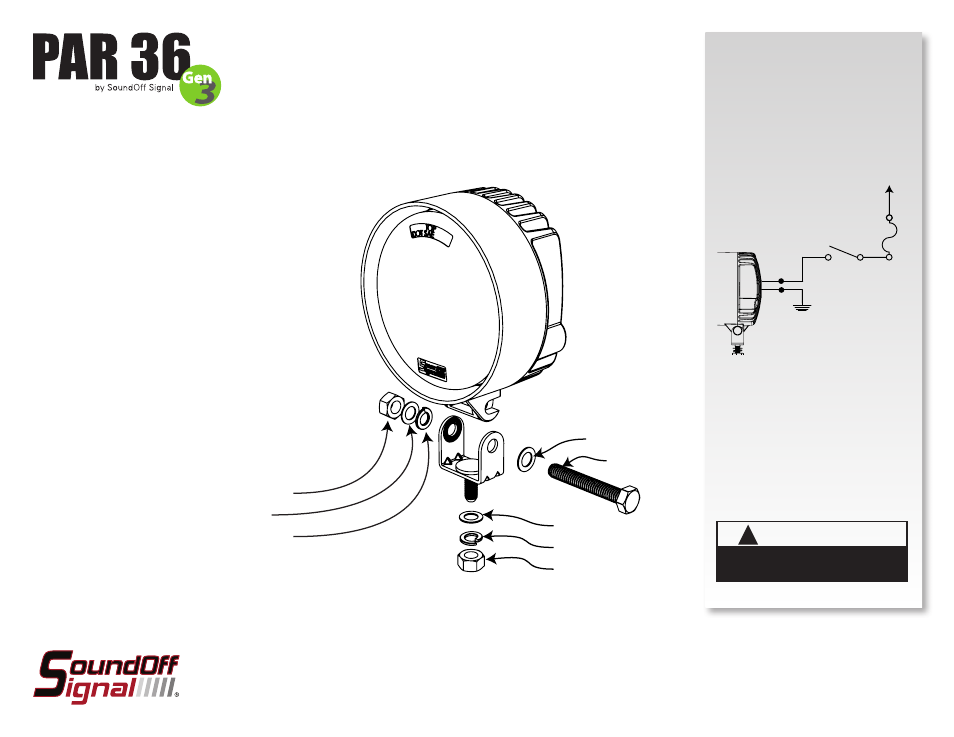

MECHANICAL ATTACHMENT:

Assemble Mounting bracket as shown in
the diagram to the left. All bolts should be
torqued to a maximum of 25 in-lbs.

!

WARNING

This product contains high intensity LED devices.

To prevent eye damage, DO NOT stare into the

light beam at close range.

EWLA(xxxx)DBD(x)ØW 03.12

5/16” FLAT WASHER

5/16”-18x2” BOLT

5/16” FLAT WASHER

5/16” SPLIT LOCK WASHER

5/16”-18 NYLON LOCK NUT

5/16”-18 NYLON LOCK NUT

5/16” FLAT WASHER

5/16” SPLIT LOCK WASHER

(-) GROUND

(5A) FUSE

+Vdc

BLACK

RED

PAR 36, 1000 Lumen (10-50 Vdc)

Flood Pattern #EWLA1ØØØDBDFØW

Spot Pattern #EWLA1ØØØDBDSØW

Trapezoid Pattern #EWLA1ØØØDBDTØW

PAR 36, 500 Lumen (10-50 Vdc)

Flood Pattern #EWLAØ5ØØDBDFØW

Spot Pattern #EWLAØ5ØØDBDSØW

Trapezoid Pattern #EWLAØ5ØØDBDTØW
