PAR 36 LED Work Lights (10-16 Vdc)

Flood Pattern #EWLB(yyyy)DBDFØW

Spot Pattern #EWLB(yyyy)DBDSØW

Trapezoid Pattern #EWLB(yyyy)DBDTØW

(yyyy) = Lumen Ouptut: Ш35Ш, Ш5ШШ, 1ШШШ or 14ØØ

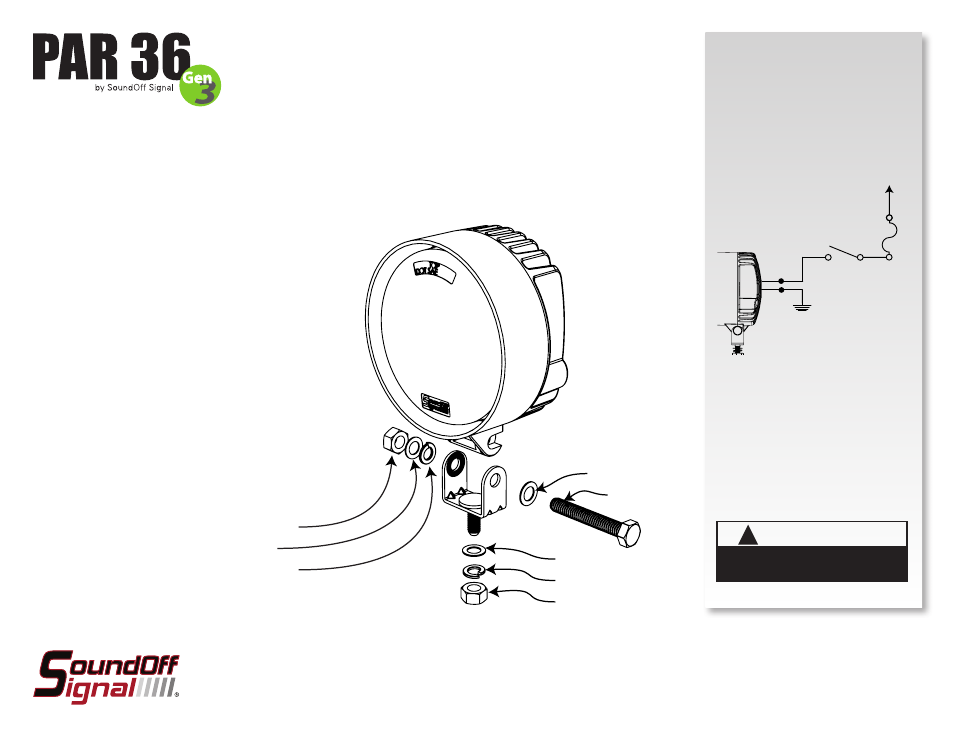

ELECTRICAL CONNECTIONS:

See diagram below for required electrical
connections. Connect the RED wire to
+10-16Vdc through a customer supplied
5A fuse and switch. Connect the BLACK
wire to a reliable ground.

MECHANICAL ATTACHMENT:

Assemble Mounting bracket as shown in
the diagram to the left. All bolts should be
torqued to a maximum of 25 in-lbs.

!

WARNING

This product contains high intensity LED devices.

To prevent eye damage, DO NOT stare into the

light beam at close range.

EWLB(xxxx)DBD(x)ØW 03.12

5/16” FLAT WASHER

5/16”-18x2” BOLT

5/16” FLAT WASHER

5/16” SPLIT LOCK WASHER

5/16”-18 NYLON LOCK NUT

5/16”-18 NYLON LOCK NUT

5/16” FLAT WASHER

5/16” SPLIT LOCK WASHER

(-) GROUND

(5A) FUSE

+Vdc

BLACK

RED
