WARNING

: Warning devices are strictly

regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.

!

WARNING

This product contains high intensity LED devices.

To prevent eye damage, DO NOT stare into light

beam at close range.

PATTERN SELECTION

1. Connect BLACK wire to ground.
2. Connect RED wire to +Vdc.
3. Connect GREEN and BLUE wires to +Vdc.
4. With power applied to the two wires

momentarily apply power to WHITE wire to
change the directional arrow patterns.

5. While changing patterns, the UltraLITE will

display the left arrow pattern.

6. When you have chosen the directional arrow

pattern, disconnect GREEN and BLUE wires
from power.

7. Connect BROWN wire to +Vdc and

momentarily apply +Vdc to WHITE wire to
change the warning pattern displayed on the
UltraLITE.

8. When you have selected the warning pattern

for the UltraLITE, disconnect BROWN wire
from power.

9. You

are

finished configuring the UltraLITE.

EL3D12A(xxx) 3.09

END MODULE WARNING

1 Traffic

Mover

Simultaneous

2 Q-Switch

Alternating

3 RoadRunner

Alternating

4 Power

Pulse

Alternating

5 Progressive

Alternating

Simultaneous: 1 and 12 together

Alternating: 1 alternates with 12

ARROW PATTERNS for
12 MODULE UltraLITE - 10+2 COLOR

1 Solid

Fast

High

Power

2

Solid Plus

Fast

High Power

3 Sequential

Fast

High

Power

4

Sequential2 (2 lights)

Fast

High Power

5 Chaser

Fast

High

Power

6 Solid

Slow

High

Power

7

Solid Plus

Slow

High Power

8 Sequential

Slow

High

Power

9

Sequential2 (2 lights)

Slow

High Power

10 Chaser

Slow

High

Power

11 Solid

Fast

Low

Power

12

Solid Plus

Fast

Low Power

13 Sequential

Fast

Low

Power

14

Sequential2 (2 lights)

Fast

Low Power

15 Chaser

Fast

Low

Power

16 Solid

Slow

Low

Power

17

Solid Plus

Slow

Low Power

18 Sequential

Slow

Low

Power

19

Sequential2 (2 lights)

Slow

Low Power

20 Chaser

Slow

Low

Power

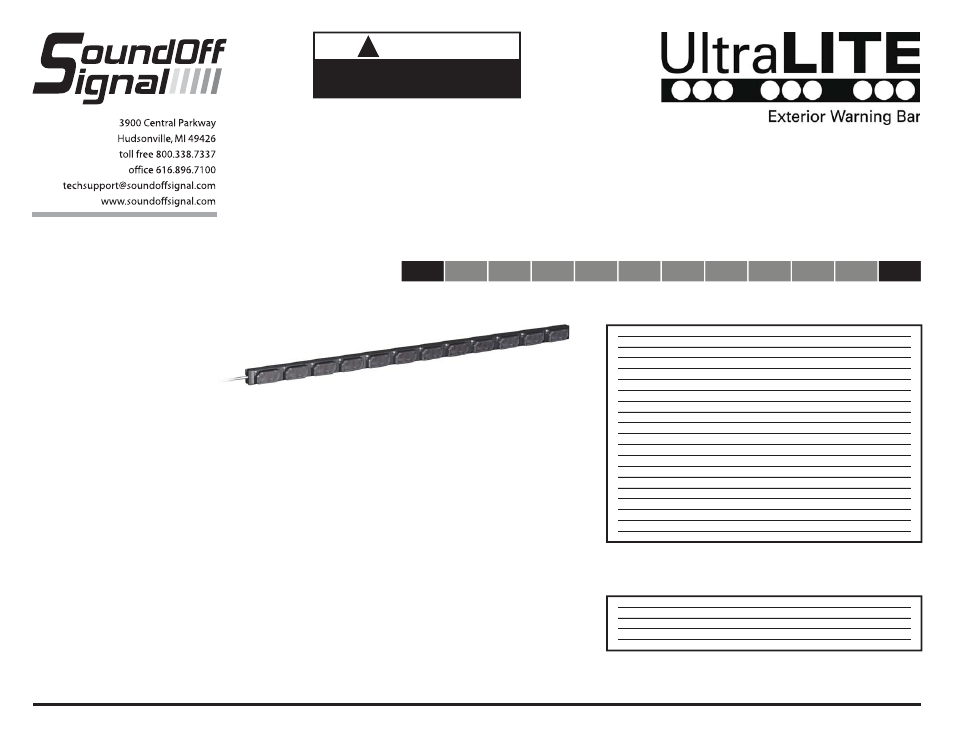

12 MODULE EXTERIOR BAR

DIRECTIONAL ARROW

W/ SINGLE WARNING TIPS

CONFIGURATION INSTRUCTIONS

12v: EL3D12A1Ø(x)

10-30v: EL3D12A1Ø(x)-24

10-30v w/ 50’ CABLE: EL3D12A(x)L(x)-24
