Powers 470 Series VisuGuard Pressure-Balancing Tempering Valve with LCD Temperature Display - Manual (Page 4)

29
28
27
26
25
24
23
22
21
19
20
30
31

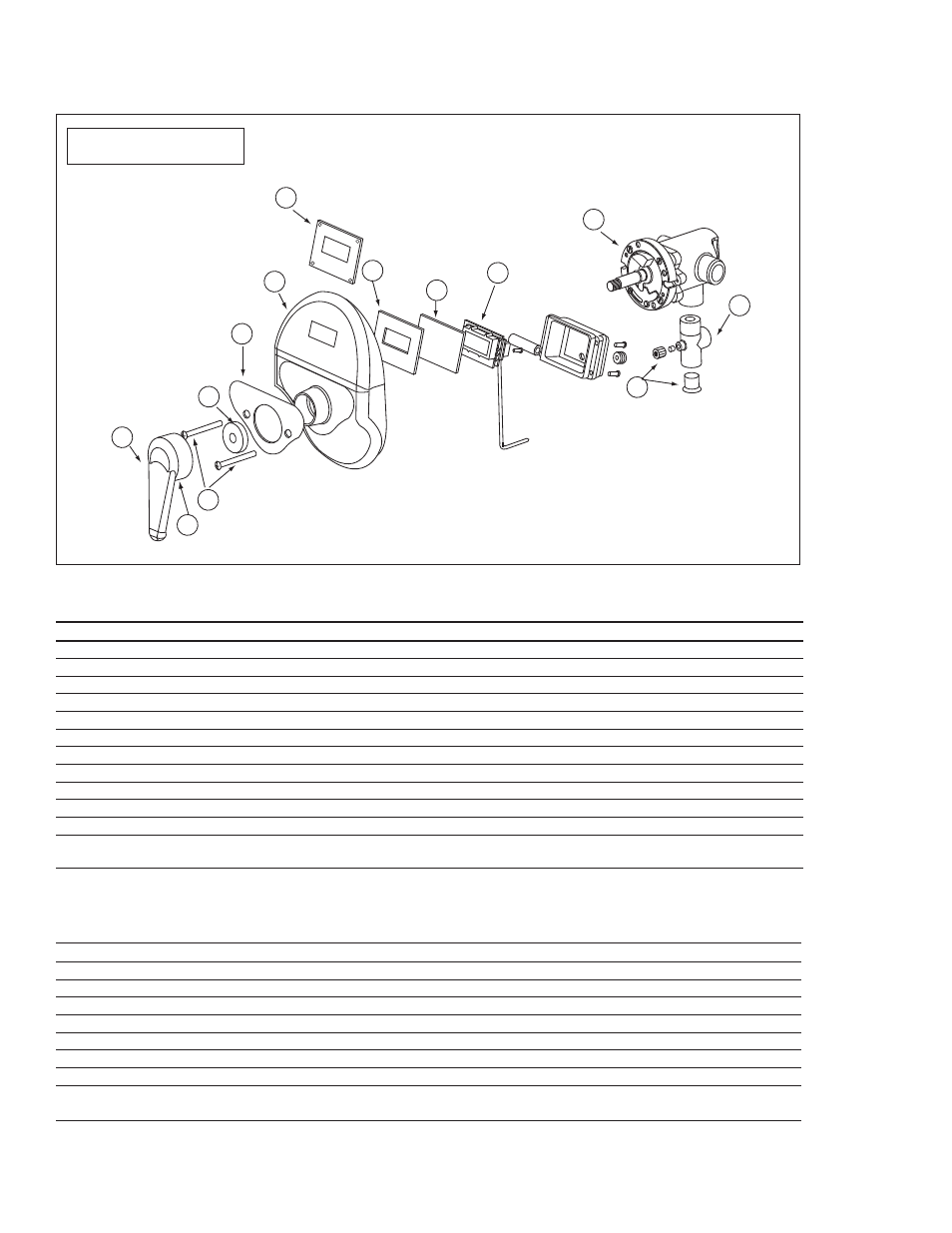

Series 473 VisuGuard LCD Pressure equalizing mixer.
Poppet-type construction. Adjustable maximum temperature stop.
Item Part Description Kit/Part No. Quantity Material
19 Nut, Ferrule, and 5/8” Sweat Plug 473-044 1 Brass & Copper
20 Probe Fitting N/A Brass
21 3 Port Mixer with Probe Fitting 473-033 1 Brass
22 Temperature Display with Probe 473-039 Various
23 Display Lens 473-041 1 Lexan
24 Gasket Display 473-041 1 Foam
25 Cover Plate 473-038 1 Chrome Plated Metal
26 Graphic Insert 473-043 1 Polycarbonate
27 Stem Gasket 473-045 1 Foam
28 Cover Plate Screws (Powder Coated) 473-042 10 Stainless
29 Handle & Set Screw 473-035 1 Chrome Plated Metal & Stainless
30 Window Plate for Non-Electronic
Model N473 & N474
NLA 1 Chrome Plated Metal
31 Set Screw 088-200 1 Stainless Steel
VisuGuard LCD Kits
Kit/Part No. Description Includes:
473-035 Handle Kit Handle and Set Screw
473-037 Stem Extension Kit Stem Extension, (2) Long trim plate screws
473-038 Cover Plate Kit Cover Plate, Graphic Insert, Screws and Gaskets
473-039 Temperature Display Kit Electronic Display (F /C ), Housing, Lens and Gasket
473-041 Lens Kit Lens and Gasket
473-042 Coated Screw Kit (10) Powder Coated Screws
473-043 Graphic Insert Kit Graphic Insert
473-044 Installation Kit Cover Plate Gasket, Stem Gasket, Compression Nut,
Ferrule, and Plug
473-045 Gasket Kit Cover Plate Gasket, Stem Gasket, and (2) Coated Screws
See laser etched ring to
determine valve model.
