Powers 470 Series VisuGuard Pressure-Balancing Tempering Valve with LCD Temperature Display User Manual
Page 3
3

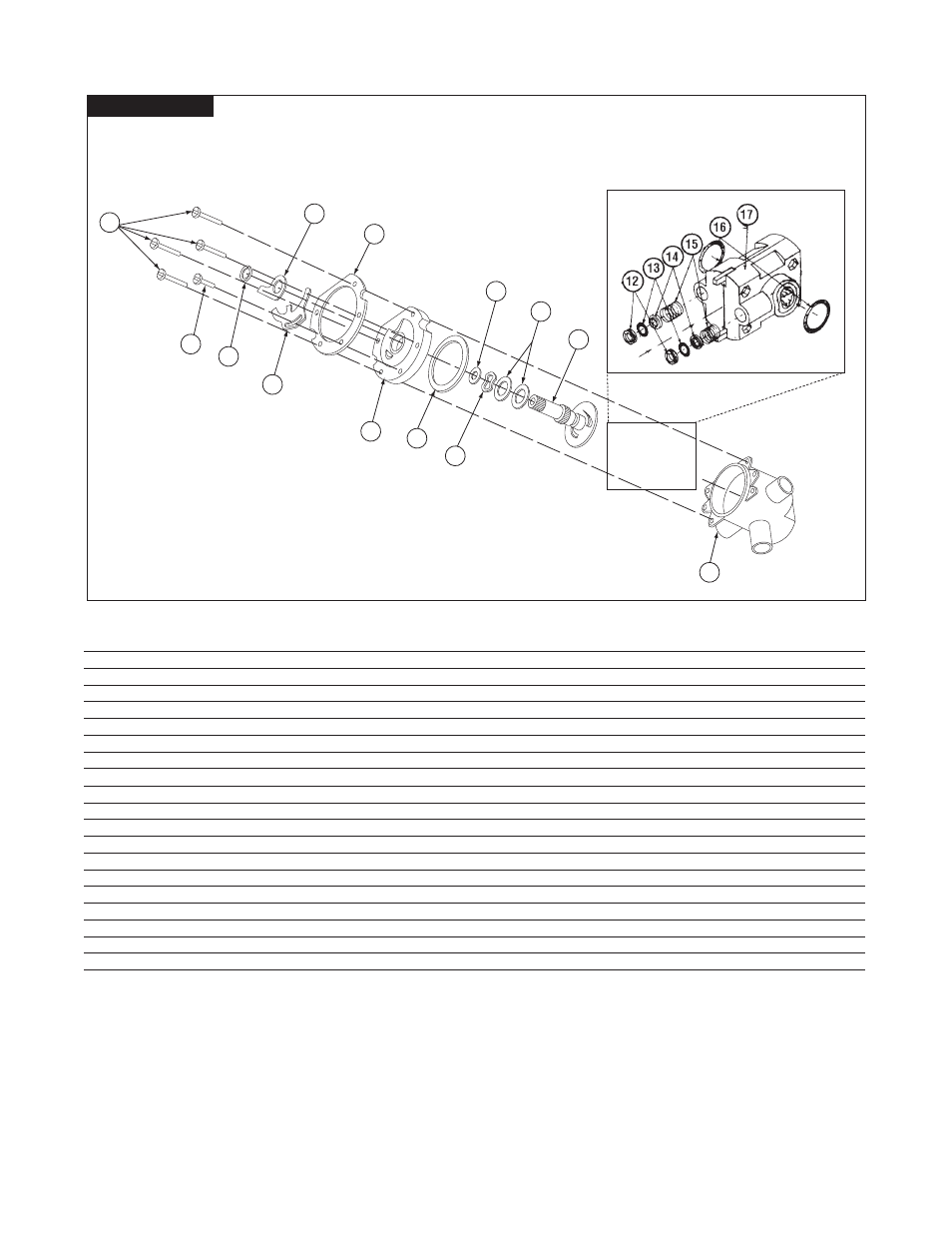

Valve Assembly
1
2
3
4
5
6
7
8
9
3
10
11
18
Series 470 VisuGuard LCD Pressure equalizing mixer.
Poppet-type construction. Adjustable maximum temperature stop.
Item
Part Description
Kit/Part No.
Quantity
Material
1
Bonnet Screws (10-32 x 5/16")
030-885
4
Stainless Steel
2
Adjustment Stop Screw (10-32 x 5/16")
030-884
1
Stainless Steel
3
O-Rings (3/8" x 1/2" x 1/16")
047-020
4
Buna-N
4
Maximum Temperature Stop
401-218
1
Brass
5
Adjustment Stop
401-278
1
Stainless Steel
6
Support Ring
410-377
1
Stainless Steel
7
Bonnet
401-162
1
Noryl
8
Bonnet Gasket (Rainbow Style)
410-146*
1
Rubber
9
Wavy Washer
410-145*
1
Stainless Steel
10
Flat Washers
410-144
4
Synthane
11
Throttling Stem
410-375
–
Brass Stem Celcon Plate
12
Shut-off Disc
400-023
1
Buna-N
13
O-Rings (2)
410-366
25
Buna-N
14
Guide
410-427
1
Brass
15
Spring
410-138
1
Monel
16
O-Ring
047-031
1
Buna-N
17
Cartridge
410-440
1
Celcon
18
Valve Body
–
1
Brass
Parts
