Powers 470 Series VisuGuard Pressure-Balancing Tempering Valve with LCD Temperature Display User Manual
Technical instructions, Description, Specifications

IS-P-VISULCD
Technical Instructions
2
Celcon Chamber
4
Maximum
Temperature
Stop
Bonnet
Hot Water Supply
1
Balancing
Poppet
Assembly
Cold Water Supply
3
Mixing Plate
Stem

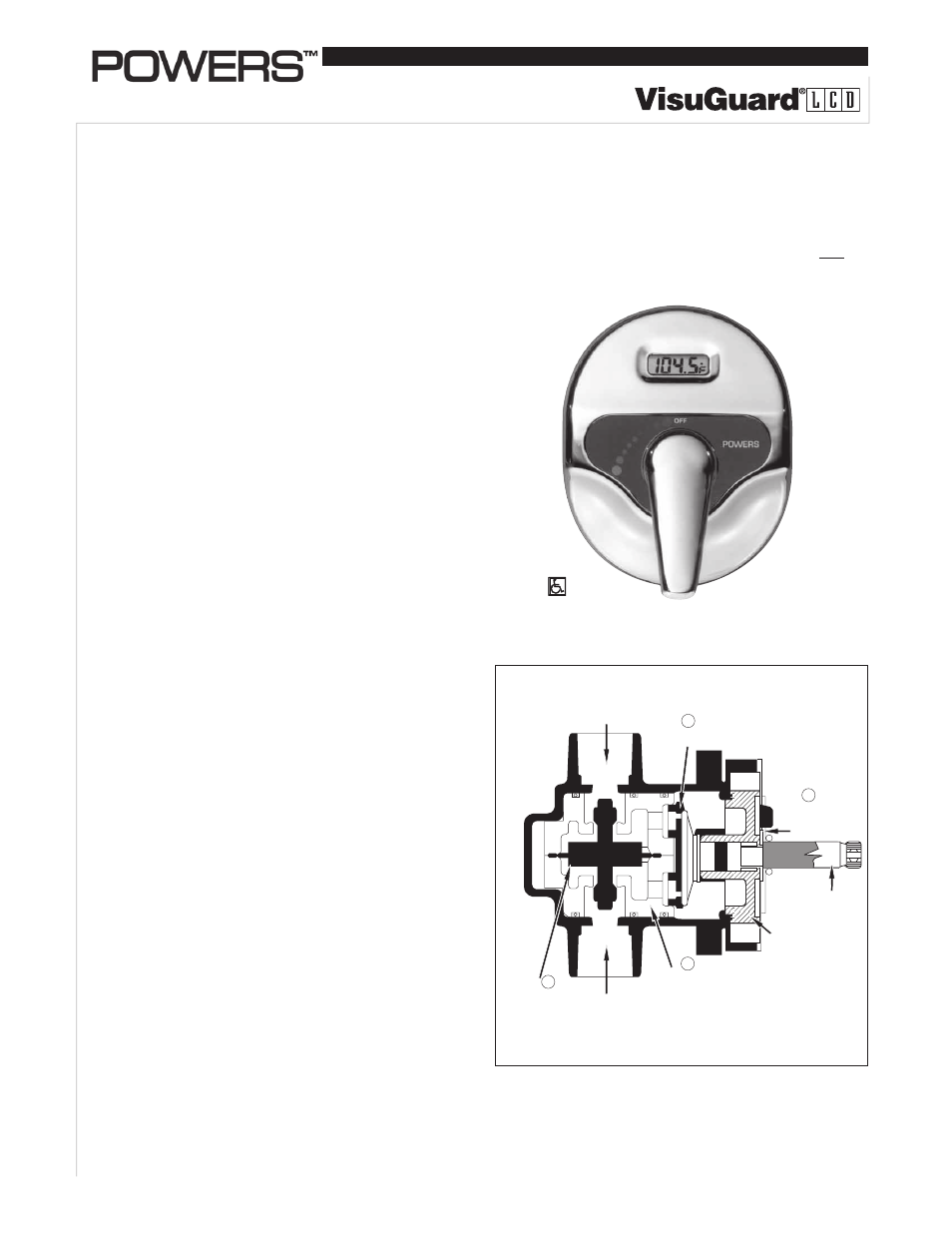

FIGURE 1 – OPERATION
F473 shown
C473 Celsius
Description
n
Concealed, tub and shower or shower only pressure
balancing mixer with battery operated, LCD temperature
display for use in shower applications. Features a single
AAA alkaline battery for up to four years of continuous life.
Rugged, brass valve body construction with diaphragm-
type pressure balancing mechanism. Cartridge compo-
nents manufactured of Celcon
®
to resist lime buildup and
corrosion. Adjustable handle rotation stop reduces risk of
handle overadjustment. Opens in cold water position to
maximize bather safety. Battery and temperature display
are housed in an easy-access, watertight enclosure.
Valve trim features:
• Ergonomically-designed, chrome-plated, metal-cast face-
plate and handle
• ADA-compliant handle operation
Specifications
n
Connections
. . . . .
1/2" NPT inlets and 1/2" sweat outlets
Battery
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single AAA alkaline
Temperature Display
. . . . . . . . .
1/2" [13 mm] LCD readout
(factory set for either °C or °F; accurate to 1/10 of a degree )
Temperature Range (Display)
. . . .
-58–158°F [-50–70°C ]
Capacity
. . . . . . . . . . . . . . . . . . . . . .
6.0 gpm @ 45 psi differential
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
[22 L/min @ 310 kPa]
........................................................ (±0.5 gpm [±1.9 L/min])
Maximum Inlet Temperature
. . . . . . . . . . . . . . . .
180°F [82°C]
Maximum Operating Pressure
. . . . . . .
125 psig [862 kPa]
Handle Rotation Stop
. . . . . . . . . . .
Standard and adjustable
Wall Seal Gasket
. . . . . . . . . . . . . . . . . . . . . .
Supplied with valve
Agency Approvals
. . . .
Meets requirements of ASSE 1016
............................... CSA approved, ADA-compliant handle
Shipping Weight
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7 lbs. [2.1 kg]
Application
n
The Visuguard LCD is particularly recommended in show-
ers and shower bath installations for motels, hotels, dormi-
tories, health care facilities, and single family residences.
Operation (SeeFigure 1)
n
Hot and cold water enter their respective ports and the
flow of water is equalized through the action of the bal-
ance poppet (1). The entire balancing poppet assembly
is contained in a Celcon chamber (2). This chamber is
replaceable as a complete cartridge. After the hot and
cold flows are equalized, they are mixed by the action of
a mixing plate (3). As the temperature adjustment stem is
rotated from shutoff to maximum hot water temperature,
the mixing plate passes the required proportion of hot and
cold water to produce the control point. With the adjust-
ment stem in its full clockwise position, shutoff is obtained
by closing both supplies.
The maximum temperature stop (4) allows the user to set the
maximum discharge temperature. This mixer does not rec-
ognize supply water temperature changes, so any variation
in the water temperature will affect the control point
and the
maximum temperature setting.
NOTE: Following any maintenance of unit, maximum tem-
perature stop must be reset. See page 4 for instructions.
