Banner DUO-TOUCH Run Bar with STB Buttons - Manual (Page 11)

240.0
[9.46"]
23.5 [0.93"]
38.0 [1.50"]
2x Ø28.0 [1.10"]
(3/4" NPT) Knockout
2x Ø22.0 [0.87"]
(1/2" NPT) Knockout
87.0
[3.43"]
50.3 [1.98"]
137.3
[5.41"]
474.0 [18.66"]
139.2 [5.49"]
4X 6.2 [0.24"]
2X Ø23.0 [0.91"]
Knockout Ø31.0 [1.22"]
Knockout
240.0 [9.46"]
76.1 [3.00"]
2x Ø8.9 [0.35"]
2x Ø28.0[1.10"] (3/4" NPT) Knockout
Ø22.0 [0.87"] (1/2" NPT) Knockout
Ø22.0 [0.87"]
(1/2" NPT) Knockout
or QD Connector
26.3
[1.04"]
x5 1
:Cover Screws; torque to 40 in-lbs
after wiring is completed
1

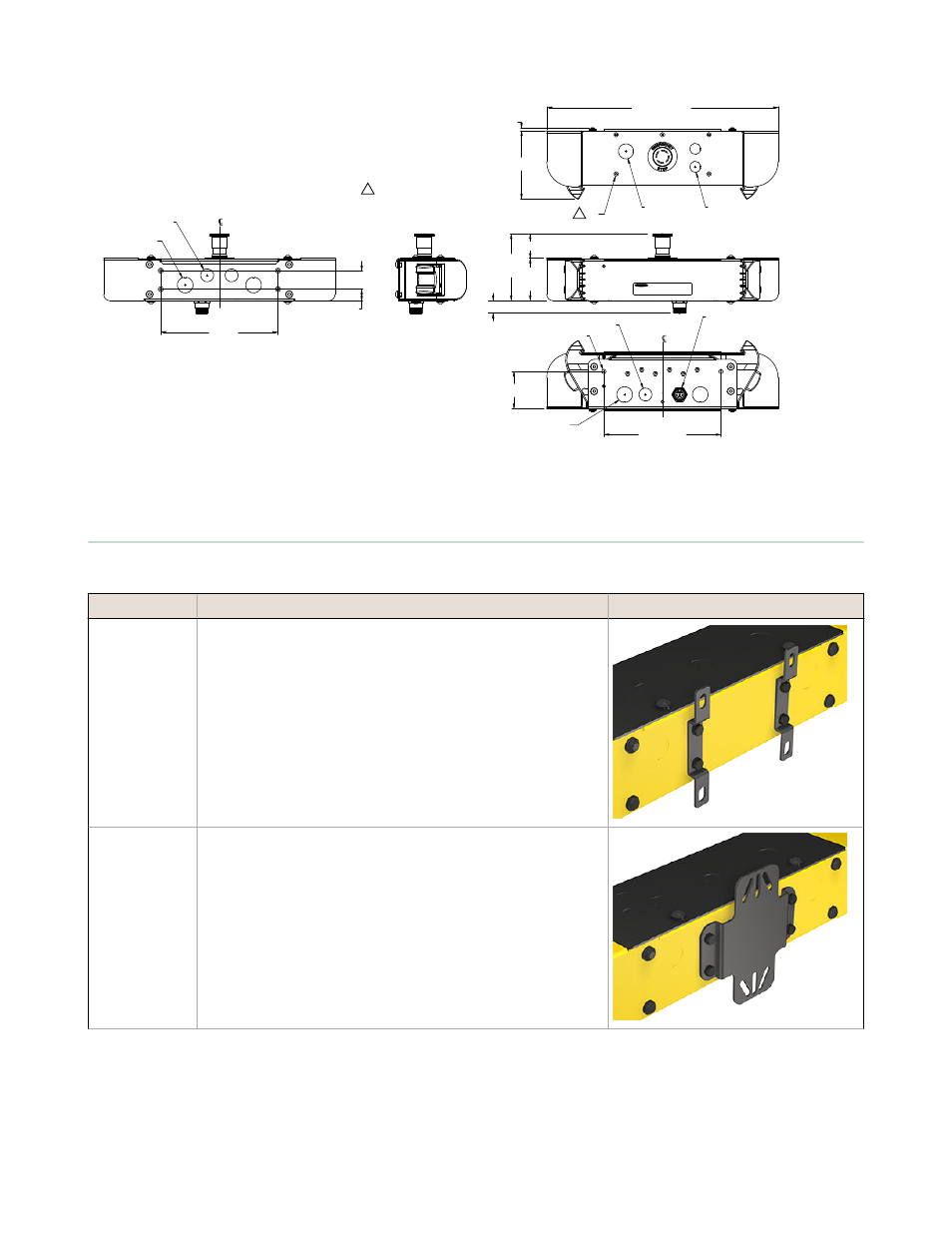

Figure 13. STBVP6-RB2 Dimensions
Accessories
Mounting Brackets for the STBVP6-RB1 Run Bar
Model Description
STBA-RB1-MB1 • Pair of wall-mount brackets; run bar “hangs” on vertical
surface
• Slotted holes for vertical adjustment
• Made of 12 ga cold-rolled steel with black powdercoat paint
STBA-RB1-MB2 • Universal-mount bracket; allows run bar to mount to vertical
stand or surface
• Slotted holes for adjustment
• Made of 12 ga cold-rolled steel with black powdercoat paint
DUO-TOUCH Run Bar with STB Buttons
