Pc-2200 – Bowers Group Advanced Electronic/Air Column PC-2200 User Manual
Page 25

PC-2200
BOWERS METROLOGY page 25 /32 version 2.06 -E

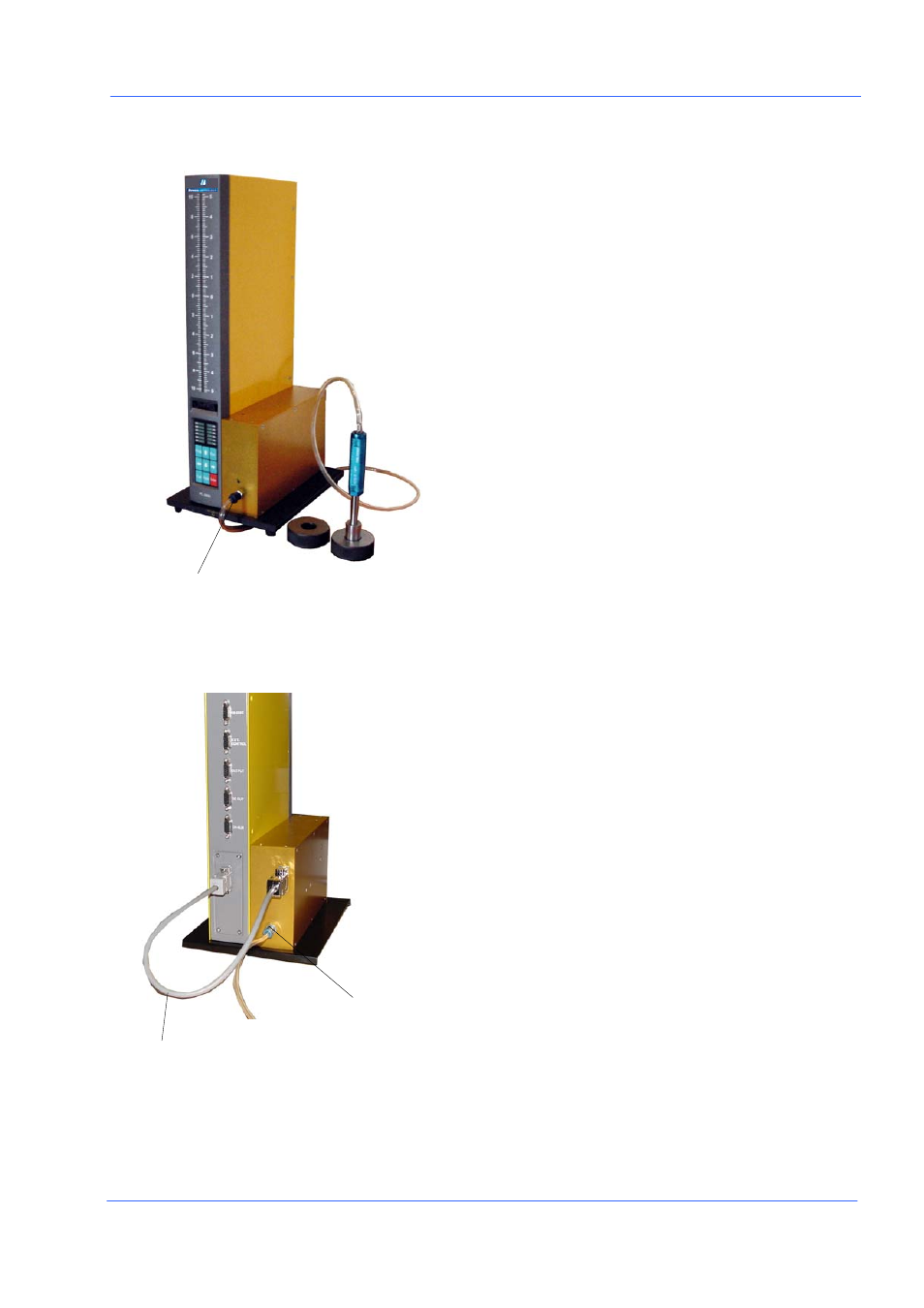

Chapter 5. PNEUMATIC INSTALLATION
Not less than 3 bar of air should be supplied.
1. Fix the column and the converter on
the aluminum base.
2. Fix the hose of the air probe
to nipple of converter.
Hose nipple for the air probe
3. Connect the cable PC-2332 between the
converter and the analog board.
4. Connect the air supply hose to the hose
nipple on the converter.
Connection cable PC-2332.
Air supply hose nipple
