PRINTER SYSTEM SETTINGS 1 - 2

Determining values

From the lines to the right of the Y (yellow), M (magenta), and C (cyan) pattern, find the values of the
straightest lines.

You can also use the densest colors of the grid to find the straightest lines. The colors printed at the
highest density are those next to the straightest lines.

If 0 is the value nearest the straightest line, you do not need to adjust the color registration. If the value
is not 0', follow the steps outlined in Entering Values on page 1-3.

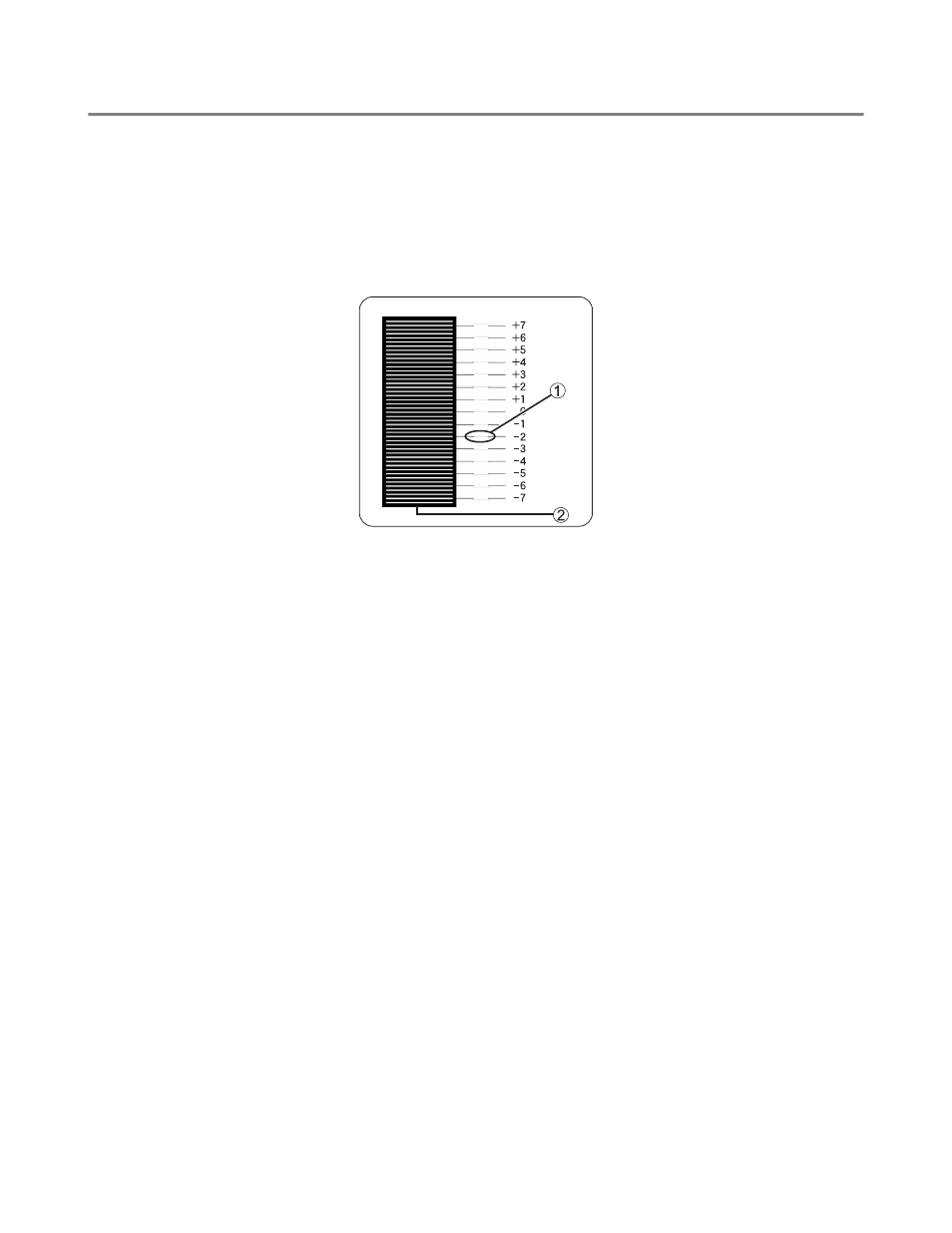

1. Straightest line

2. Lattice pattern
