5-2
GV3000/SE Operator Interface Module (OIM) User Guide, Version 2.0
5.2
Using the Quick Start Exit Menu
Quick Start automates the process of entering the values for selected parameters by
taking you to the next Quick Start parameter when a parameter value is accepted. If
you want to go back to a previous parameter or exit Quick Start before the process is
complete, press
. The Quick Start exit menu is displayed, as shown in figure 5.1.
The exit options are:
•
Return to previous step: Goes back to the previous parameter. After you accept that
parameter value, Quick Start resumes from that parameter. To go back several
parameters, you can press
and select “Return to previous step” as many
times as needed.
•
Exit Quick Start using changes: Exits Quick Start and accepts any changes.
•
Exit Q.S. without using changes: Exits Quick Start and ignores all changes.
•
Press
to leave the exit menu and return to the Quick Start parameter entry
screen you were in.
To select an option, use
or
to move the cursor to the option you want, then
press .

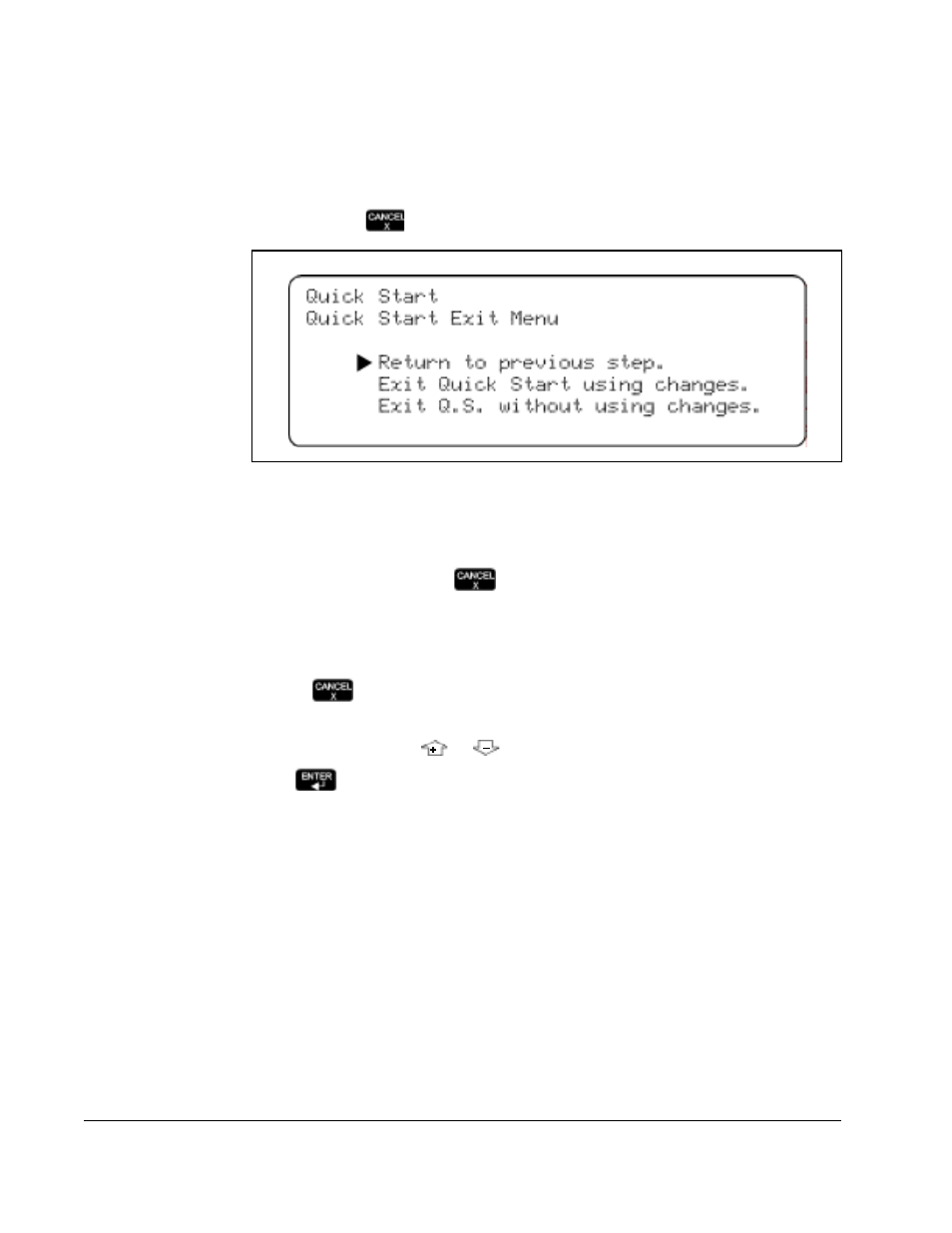

Figure 5.1 – Quick Start Exit Menu
