Rockwell Automation GV3000/SE Operator Interface Module (OIM) User Guide User Manual
Page 32

4-2
GV3000/SE Operator Interface Module (OIM) User Guide, Version 2.0
To view the rest of the menu, press
. The full Main Menu includes:
•
Quick Start
•
Speed Control
•
Application Setup
•
Performance Tuning
•
Motor Data
•
Drive Status
•
Regulator Terminal Strip
•
Option Port Configuration
•
Memory Functions
•
Additional Parameters
Menus contain other menus and parameters.
To select an item in a menu, press
or
until the cursor (
) is pointed at the
item.
Press
. The menu or parameters in that menu item are displayed.
4.1.2 Using Help in Program Mode
In program mode, you can access help for the menus and parameter entry screens. To
access help, press
when the menu or parameter entry screen is displayed. When
you are done viewing the help screen, press
to return to the previous screen.
If
▲
or
▼
is shown on the help screen, more text is available. Press
or
to
display the rest of the text.

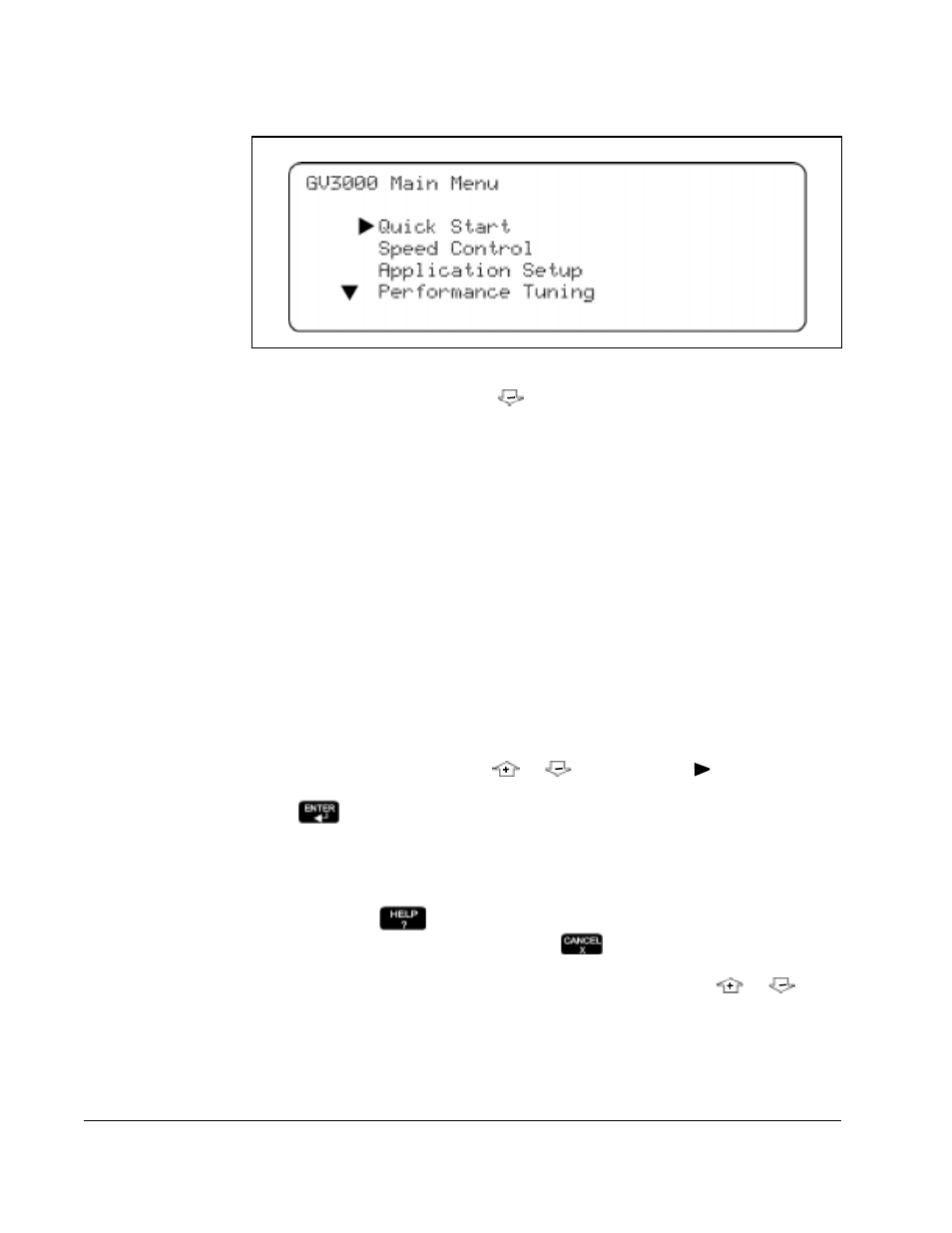

Figure 4.1 – Main Menu Screen
