Chapter 2 System Validation
Validate Your System
In this section, you review the Machine Overview and Machine Functions screens and explore the Status and Command
screens to test the manual control of the building block.

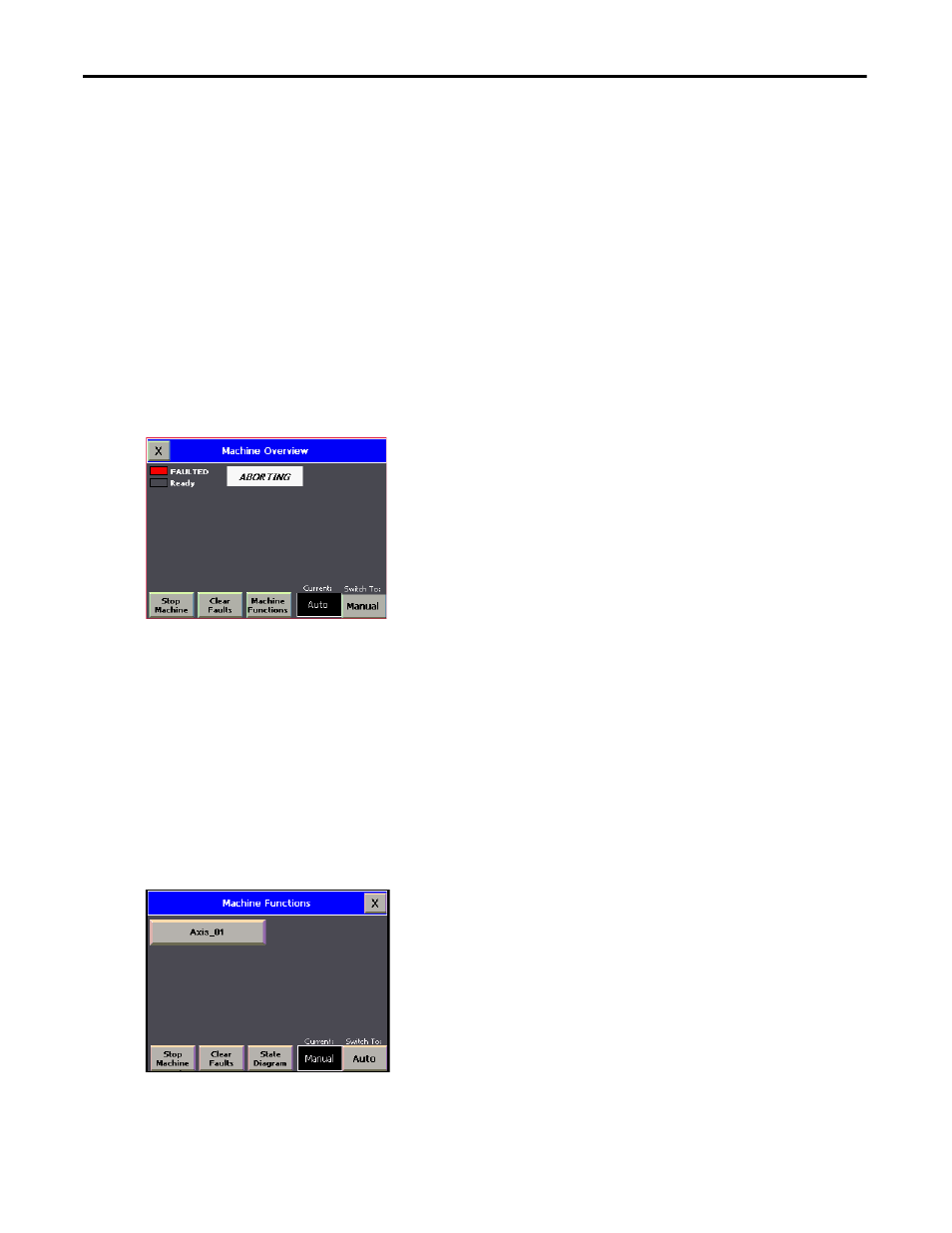

Understand the Machine Overview Screen
The Machine Overview screen in the default project is common to all CCATs. When this screen is first loaded, you can
complete the following tasks:
a. Return to the Configuration screen and exit the program.
b. View and change current machine state.
c. Start and stop Auto mode program.
d. Go to Machine Functions screen.
Understand the Machine Functions Screen
The Machine Functions screen is also common to all CCATs. You can complete the following tasks in the Machine
Functions screen:
a. Return to Machine Overview screen.
b. Look at a particular machine function or device in detail.
c. Start and stop Auto mode program.
d. View and change current machine state.
e. Go to State Diagram for an overview of machine state.
a
d c b
a
d e
b
c
