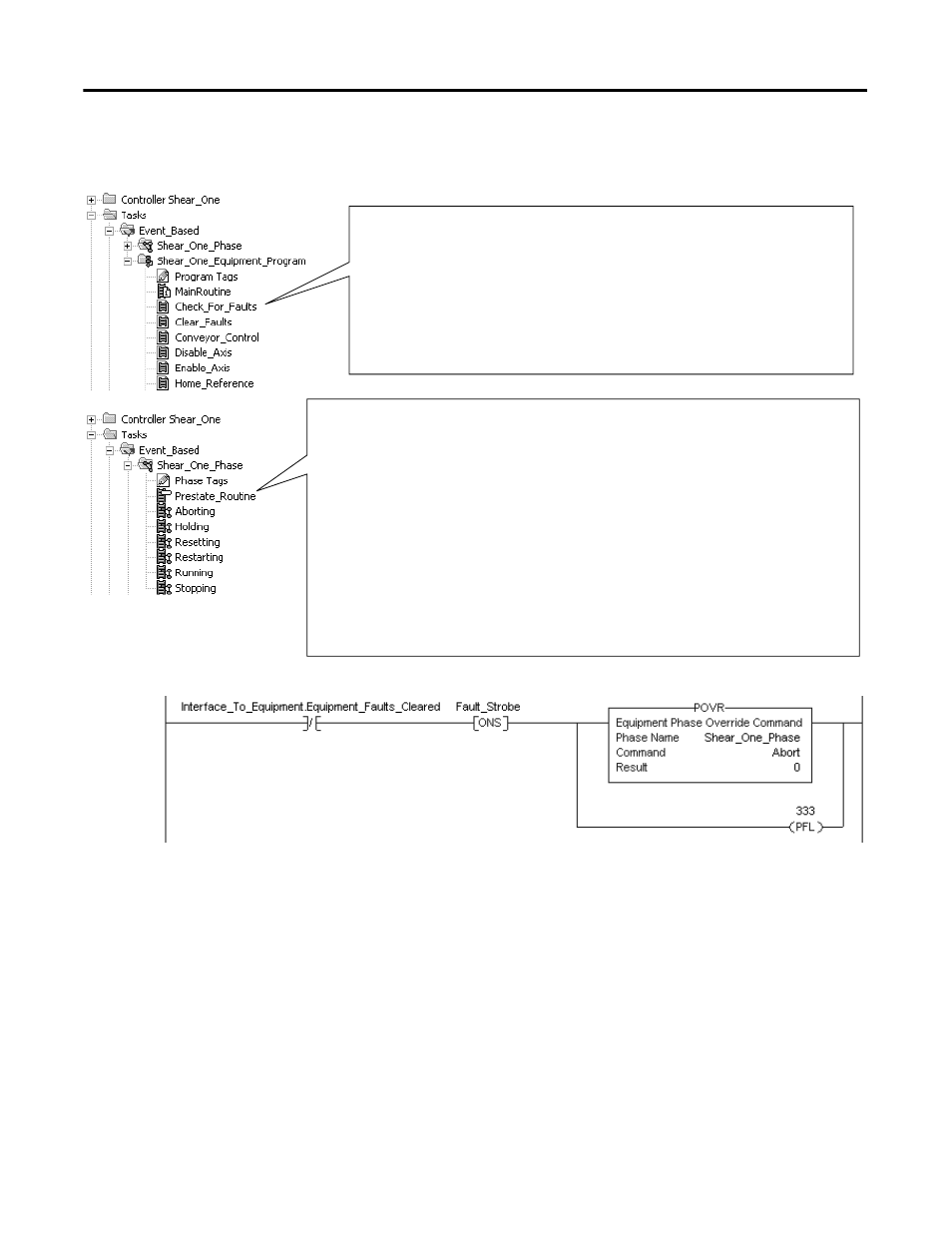

Example 3: Jam Detection
The equipment program watches for the following faults:
• Faulted axis
• Jammed material
If there is a fault, then
Local_Interface.Equipment_Faults_Cleared = 0. This tag is an alias for the
controller-scoped tag Shear_1.
The prestate routine of the equipment phase watches for the equipment program to signal a
fault.
• If Interface_To_Equipment.Equipment_Faults_Cleared = 0 then there is a fault.
• Both Interface_To_Equipment and Local_Interface are aliases for Shear_1, so they have
the same values.
If there is a fault Then
Give the Shear_One_Phase equipment phase the abort command. The POVR instruction
makes sure the command works even if someone has manual control of the equipment
phase through RSLogix 5000 software.
The PFL instruction sets the failure code for Shear_One_Phase = 333.
The Fault_Strobe keeps these actions to a single scan.
