Appendix c, Sin/cos linear encoder and kinetix 6000 drives, Introduction – Rockwell Automation LDC Iron Core Linear Servo Motors User Manual

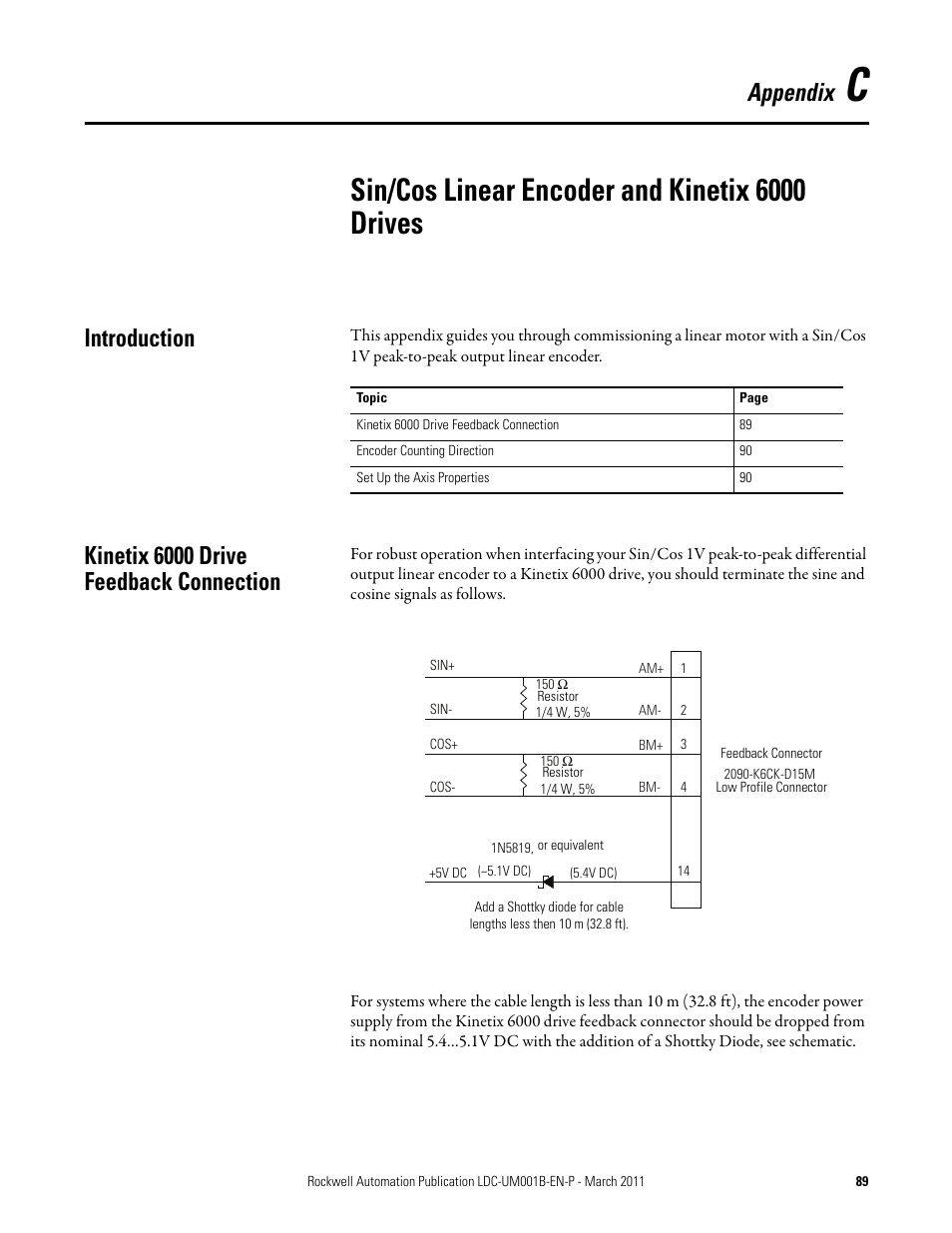

Page 89: Kinetix 6000 drive feedback connection, Appendix
