Verify motor encoder direction, Disable the drive, Note the actualpostion tag value – Rockwell Automation LDC Iron Core Linear Servo Motors User Manual

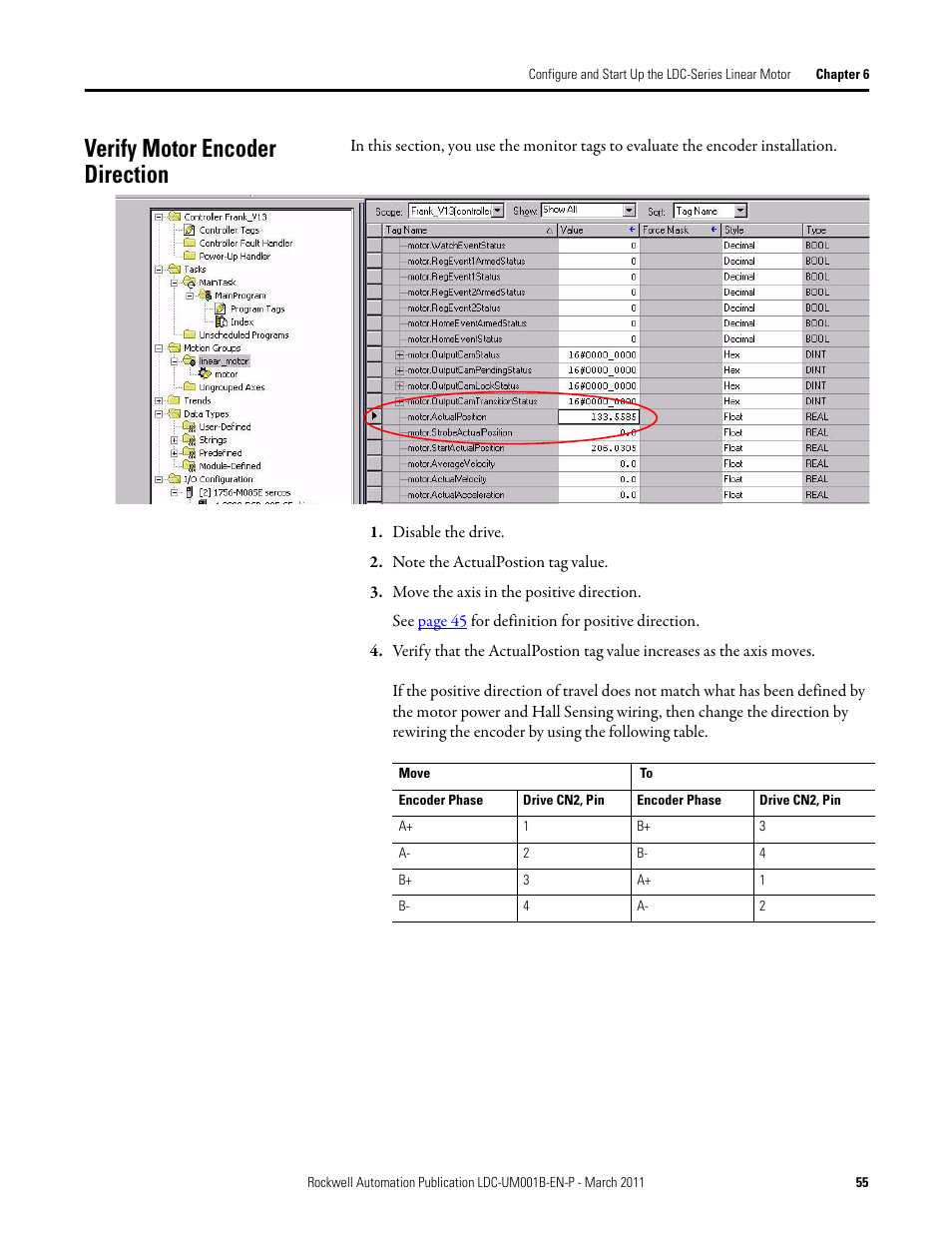

Page 55: Move the axis in the positive direction
