Configure ethernet/ip communication – Rockwell Automation 2711-ND3 PanelBuilder32 Quick Start Manual User Manual
Page 61

Publication 2711-QS003D-EN-P - June 2009
61
Configuring Communication Chapter 4
Configure EtherNet/IP
Communication
This section defines the communication settings for an EtherNet/IP
PanelView terminal and a ControlLogix controller on an Ethernet/IP
network.

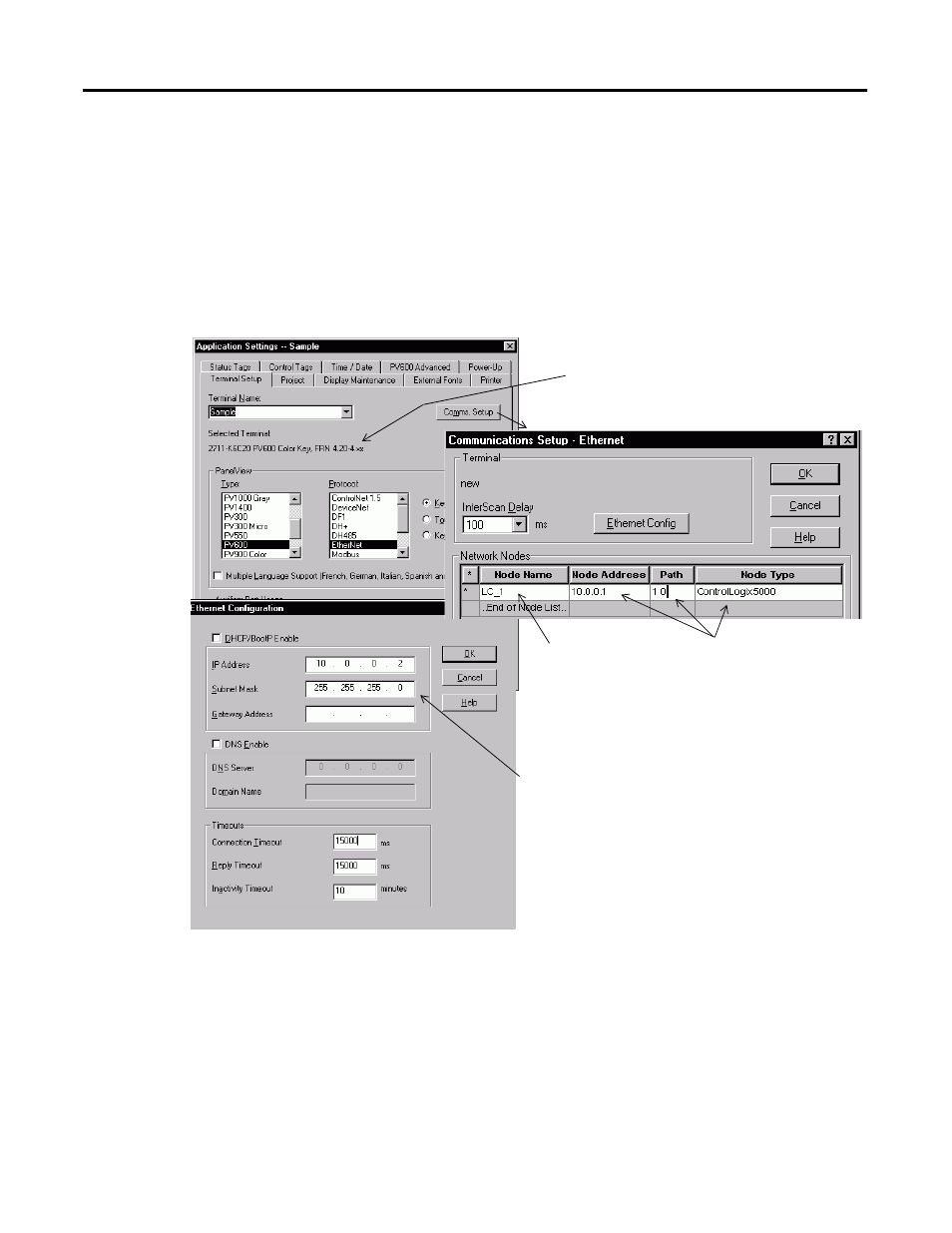

1. Select Application>Settings.
2. On the Terminal Setup tab, click the Comms. Setup button.
Set the properties as shown.
3. Click OK until you exit the Application Settings dialog.
Enter the Node Address, Path,
and Node Type as shown.
Verify that the catalog number and firmware
number matches your hardware.
Important: LC_1 is
entered to match the
Node name in the Tag
Editor.
Click the Ethernet Config button.
Set parameters as shown.
