Rockwell Automation 2706-LSW DL40 PLUS OFFLINE PROG.SFTWR.USER MANUAL User Manual
Page 100
5–13
Downloading/Uploading Message Files
Publication 2706-6.2
The DL40 Rack is the address assigned to the DL40 using DIP
Switch Bank #1 on the back of the DL40. Refer to the DL40 Plus
user manual (Publication 2706-6.1) for additional information.
The DL40 Group is the First I/O Group Number assigned to the
DL40 using DIP Switch Bank #1 on the back of the DL40
The PLC Address is the station number of the PLC-5 on the DH+
link to which the DL40 is attached. This address must match the
DIP switch settings on the PLC.
The PLC Type is the type of Allen-Bradley PLC-5 on the DH+ link
to which the DL40 is attached. Use the PLC-5/250 choice for a PLC
mounted in a Pyramid Integrator chassis.
Selecting a Hardware Device

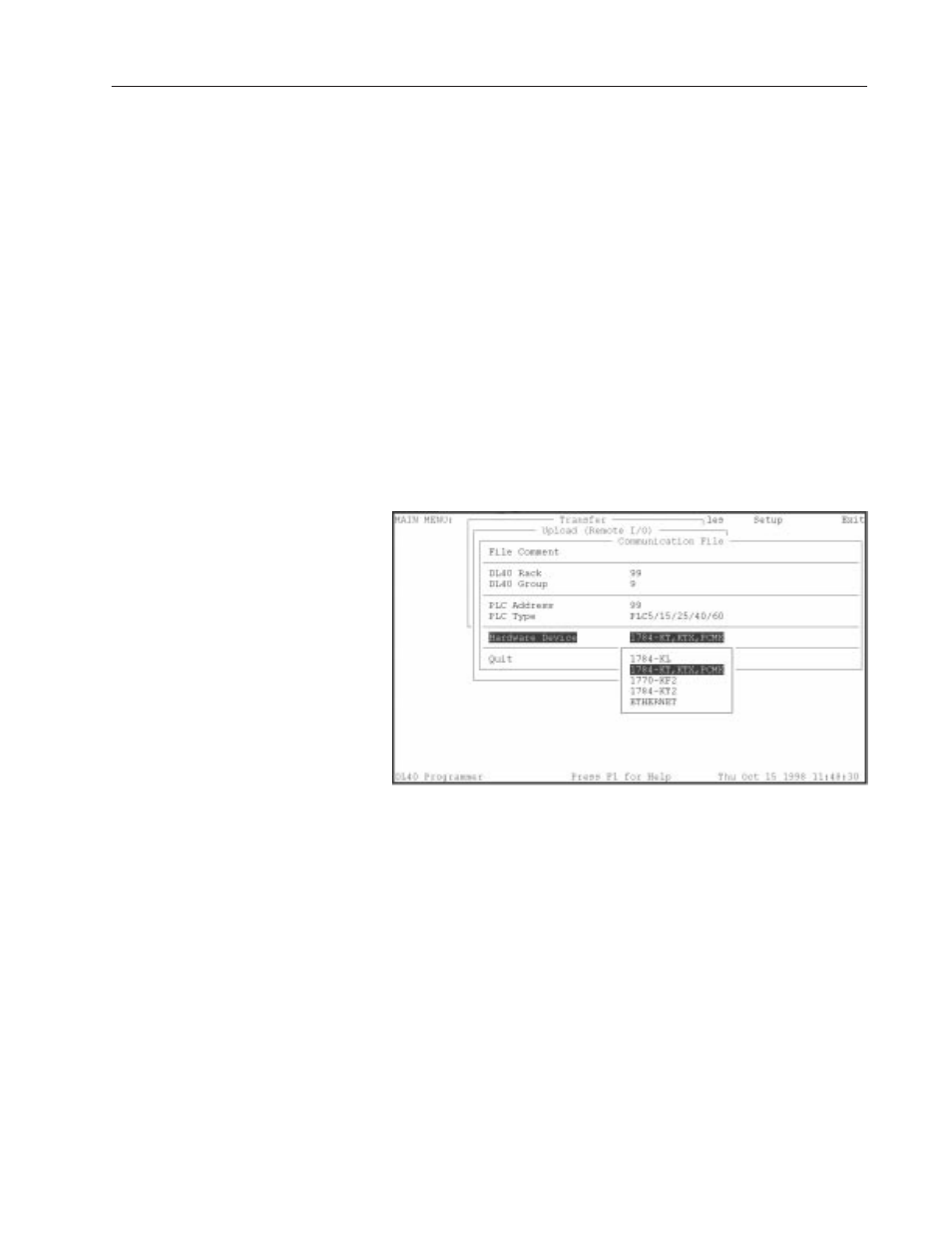

As shown below, you can select from a number of hardware devices:
Hardware Device window
Your hardware device choices appear in a list.
Parameter
Acceptable values
Hardware Device
1784-KL①
1784-KT, KTX, PCMK①
1770-KF2②
1784-KT2③
ETHERNET
① DH+ Device
② DH+ Device, Serial Interface
③ DH+ Device, Microchannel Bus
