2–2 Hardware Features
Publication 2755-6.9
The interface boxes route signals between the readers and other
devices. The interface boxes have the following switches and
connectors.
•
Auto-load switch. Allows you to load a new match code by
pressing the switch when the reader is scanning a bar code.
•
Trigger connector. Connects the interface box to a package
detector such as a PHOTOSWITCH
R
photoelectric sensor
(Catalog Nos. 42GRP-9000, 42GRU-9000, 42GRU-9200,
42GRC-9000, or 42GRR-9000). Contact your local
Allen-Bradley sales office or distributor for more information
regarding PHOTOSWITCH photoelectric sensors.
•
Scanner port. Connects the interface box to the reader cable.
•
Default switch. Allows you to restore factory configuration
settings to the reader.
•
Power switch. Provides power to the interface box and anything
connected to to the interface box.
•
Power port. Allows you to connect the power supply to the
interface box.
•
Mode switch. Allows you to toggle the 2755-LS7-IB1 host
communications between RS-232 and RS-485 communications.
•
RS-232 port. Connects the interface box to equipment with an
RS-232 port.
•
RS-485/422 port. Connects the interface box to equipment with
an RS-485 port (Catalog No. 2755-LS7-IB1) or RS-422 (Catalog
No. 2755-LS7-IB2).

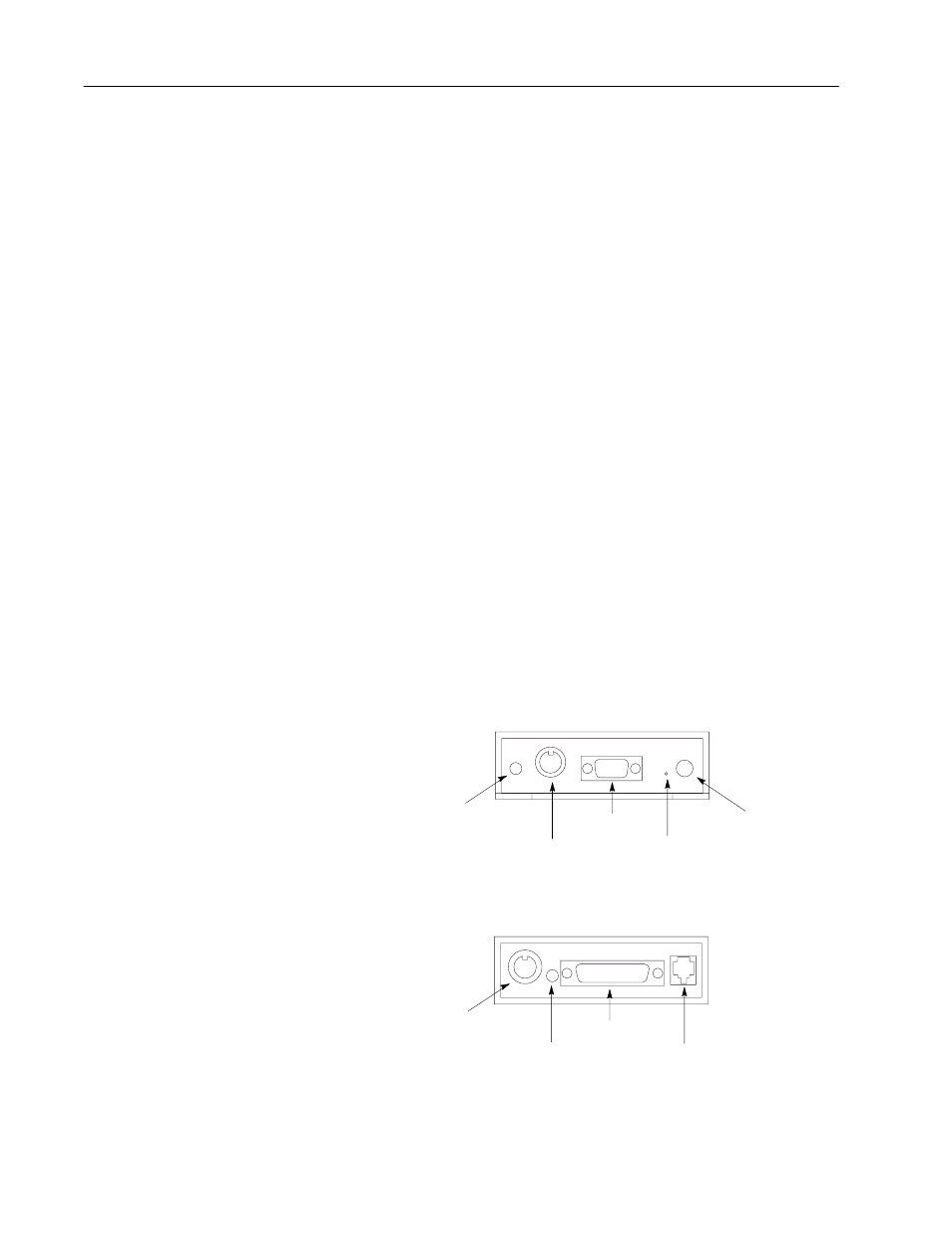

Front View
Auto-Load Switch
Trigger Connector
Scanner Port
Default Switch
Power Switch
Rear View
Power Port
Mode Switch
RS-232 Port
RS-485/422 Port
Interface Box Features
