Rockwell Automation 2755 AtomScan Bar Code Reader User Manual
Page 12
1–4
Introduction to AtomScan
+
Bar Code Readers
Publication 2755-6.9
4.

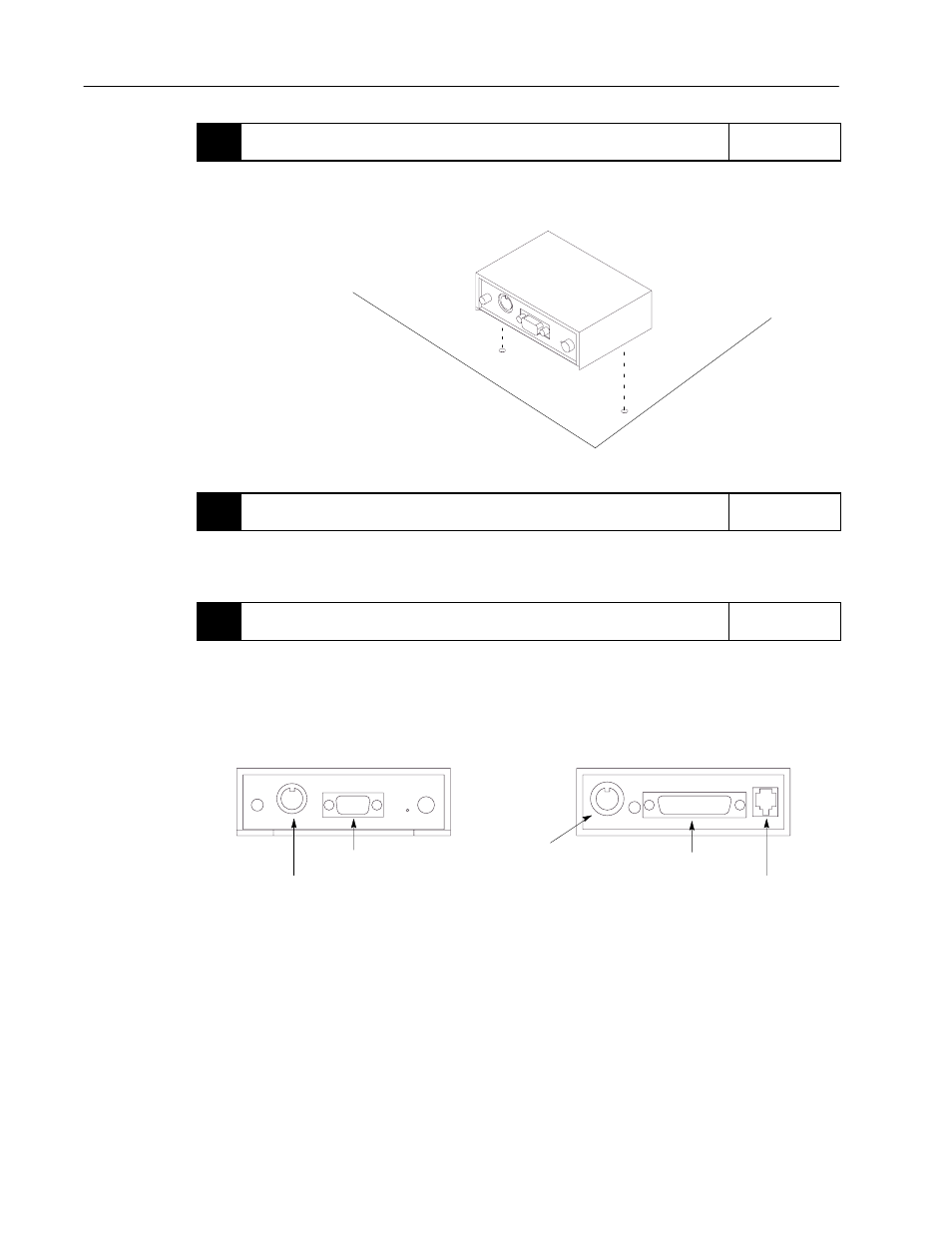

Install the interface box.
Reference
Mount the interface box to your mounting surface. Use # 6 screws with maximum penetration of
0.25 in. (6.35 mm).
Chapter 4
(Installing Your
Hardware)
Mounting Surface
Interface Box
5.
Install the power supply.
Reference
Place the power supply within 6 ft. (1.83 m) of the interface box.
Chapter 4
(Installing Your
Hardware)
6.
Connect the hardware components together.
Reference
If you are using an interface box, connect the reader, power supply, package detect, and host or
configuration terminal to the interface box. If you are not using an interface box, connect the reader to
the host device, power supply, and any input or output device via a custom cable.
Chapter 4
(Installing Your
Hardware)
Front View of Interface Box
Trigger Connector
Scanner Port
Rear View of Interface Box
Power Port
RS-232 Port
RS-485/422 Port
For information regarding installing the reader for use with an auxiliary monitor or in a daisy-chain
configuration, refer to chapter 4 of this manual.
Chapter 4
(Installing Your
Hardware)
