Breakdown justification

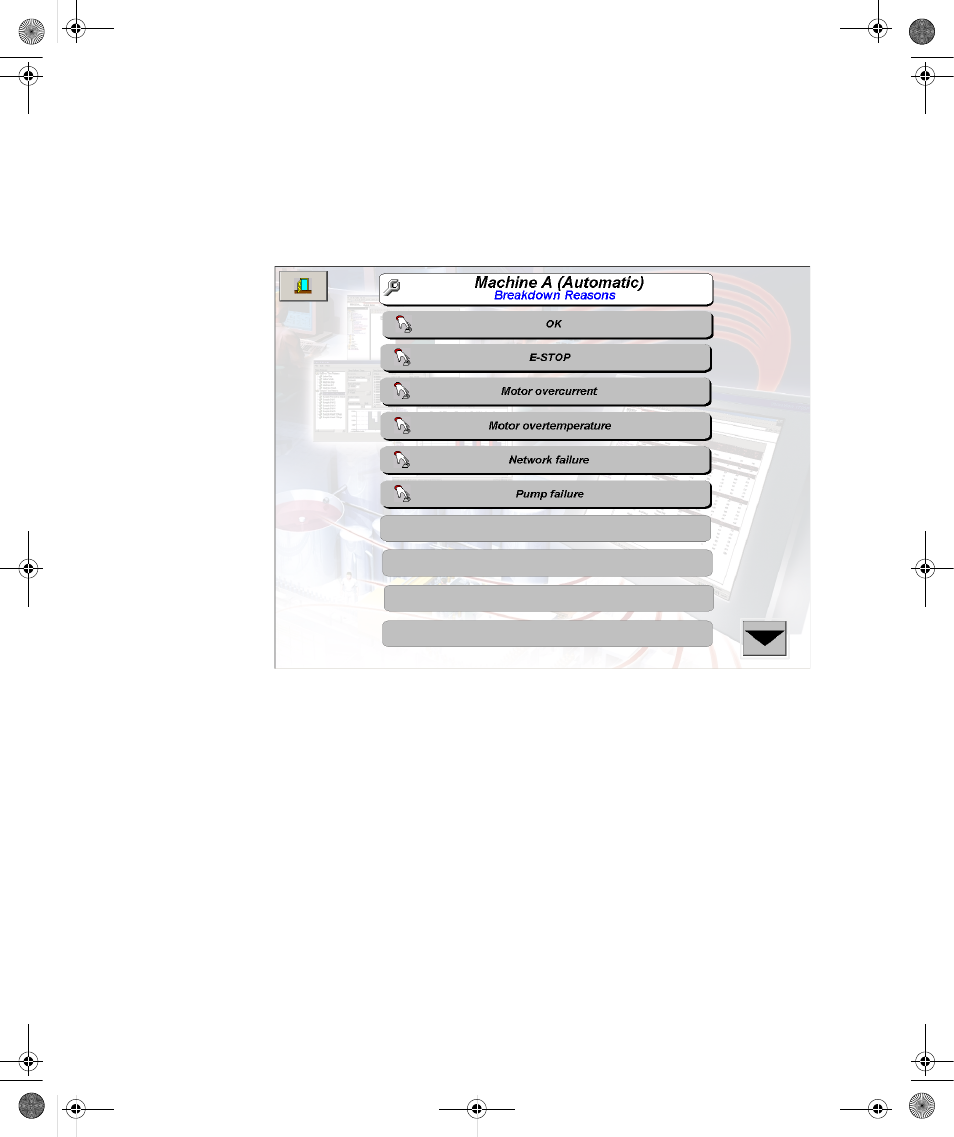

This display shows the breakdown reasons that have been configured for the workcell.
The Main Menu displays a selection button for each breakdown reason configured for the
workcell. The first 10 breakdown reasons are shown on the first display; select the down
arrow button to display the next 10 breakdown reasons.
To select a breakdown reason, click on the specific breakdown reason button.
After choosing a breakdown reason, select the Exit button in the top-left corner of the
display to return to the Workcell Menu display. The selected breakdown reason will be
shown in the breakdown box area of the Workcell Menu display (see “Workcell menu” on
page 63).
