6 • Operator Interface
Main overview

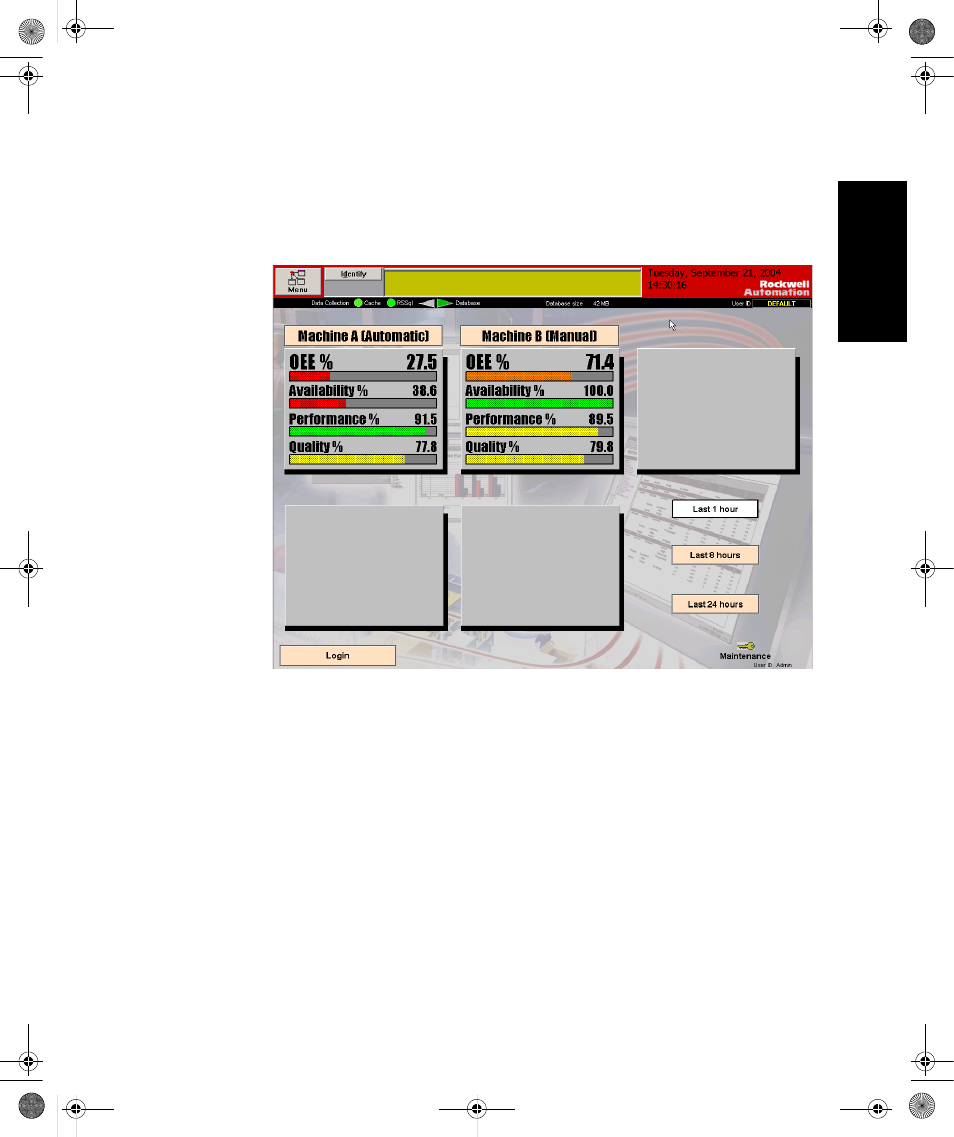

This display provides an overview of all workcells and shows their recent OEE ratings.
This is the initial display shown when the Operator Interface application is started. All
workcells that have been enabled in the configuration are shown along with their OEE
ratings.
Workcells that have been enabled in the configuration have a button shown which
contains the workcell description. Selecting the button with the workcell description
shows the workcell menu display for that workcell.
The OEE ratings are calculated for selected time period. There are three buttons available
to select the time period for which the OEE ratings of the workcells are shown:
For the Last 1 hour
For the Last 8 hours
For the Last 24 hours
