Mounting clearances

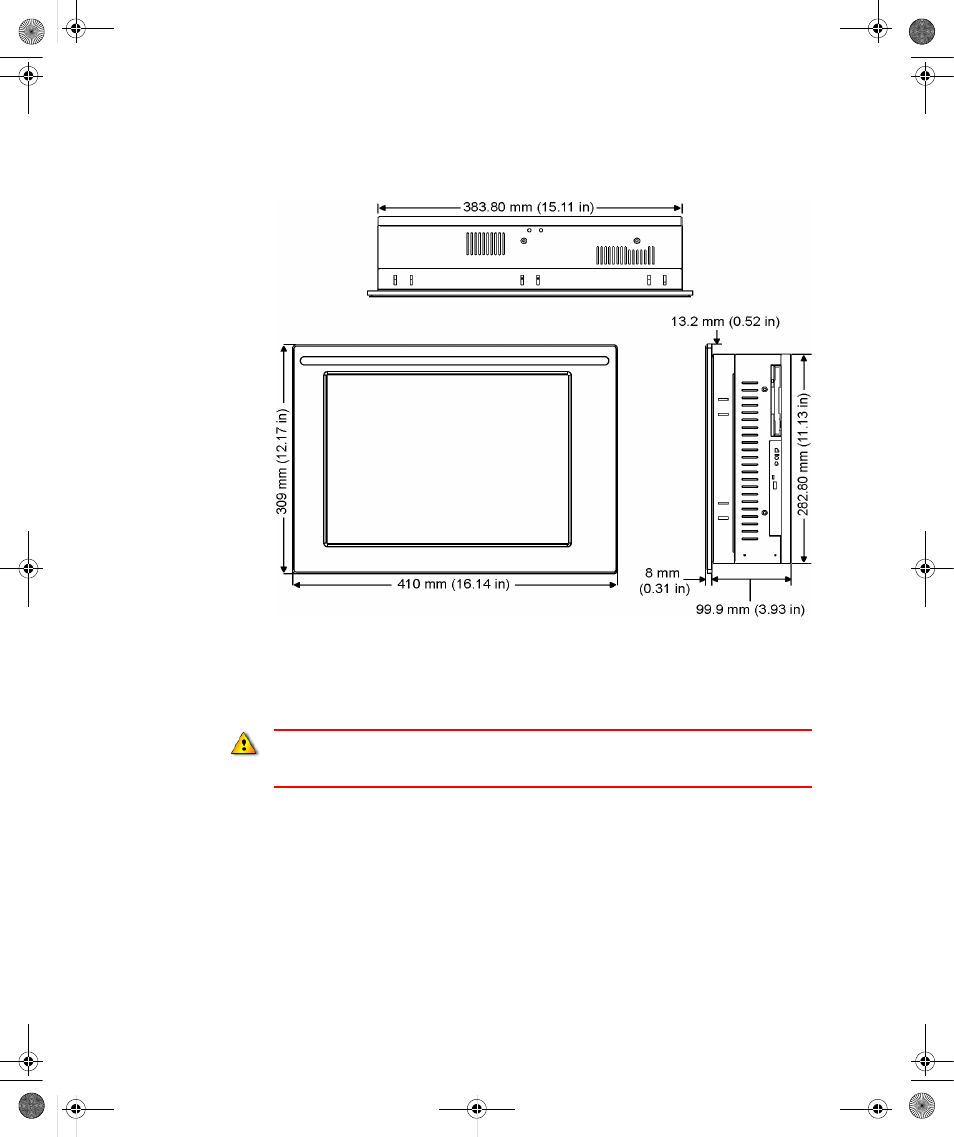

Allow adequate space for mounting, air flow, and maintenance. The figure below shows
recommended minimum clearances to other components within the rack or enclosure.
The VersaView Integrated Display Computer should not be operated within a confined space of
the dimensions shown below unless adequate ventilation or other cooling methods are used to
lower the air temperature within the enclosure.
