Rockwell Automation Discrete Machine Performance Solution User Manual
Page 57
5
•
D
ISCRETE
MPS C
ONFIGURATOR
A
PPLICATION
51
• • • • •
5 • Configurator
3. Make sure that RSView is running and the Discrete MPS application is loaded. Click
the OK button. The Configurator is ready to generate the Discrete MPS system
configuration.

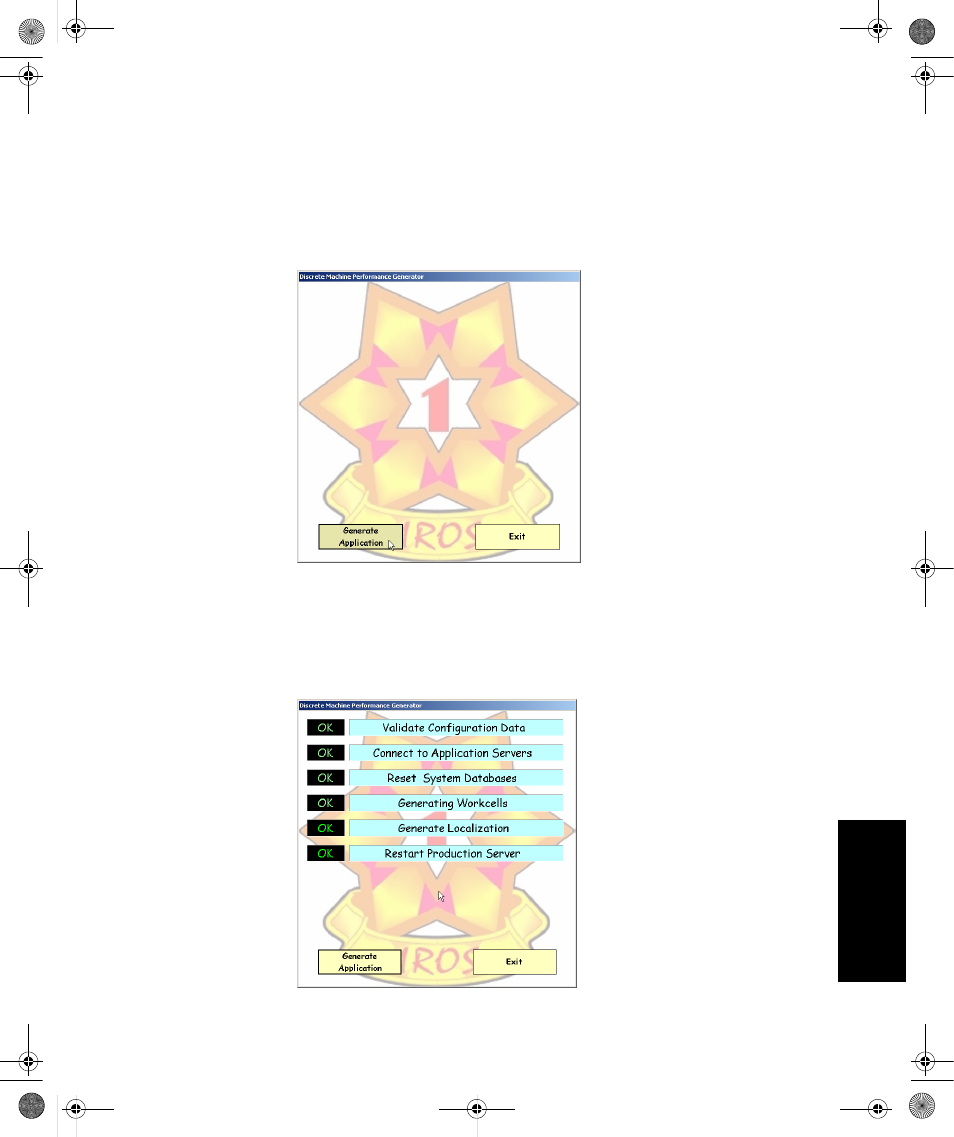

4. Click the Generate Application button. The Configurator will step through all of the
configuration steps required to generate the system configuration. The status to the left
of a step will display OK if the step was completed successfully, or Fail if the step
fails. If an error occurs, note any messages that are displayed and retry generating the
system configuration.
Discrete.book Page 51 Wednesday, December 8, 2004 2:22 PM
