4 • C OLLECTING P ERFORMANCE D ATA
27
• • • • •
4 • PerformancDat
a

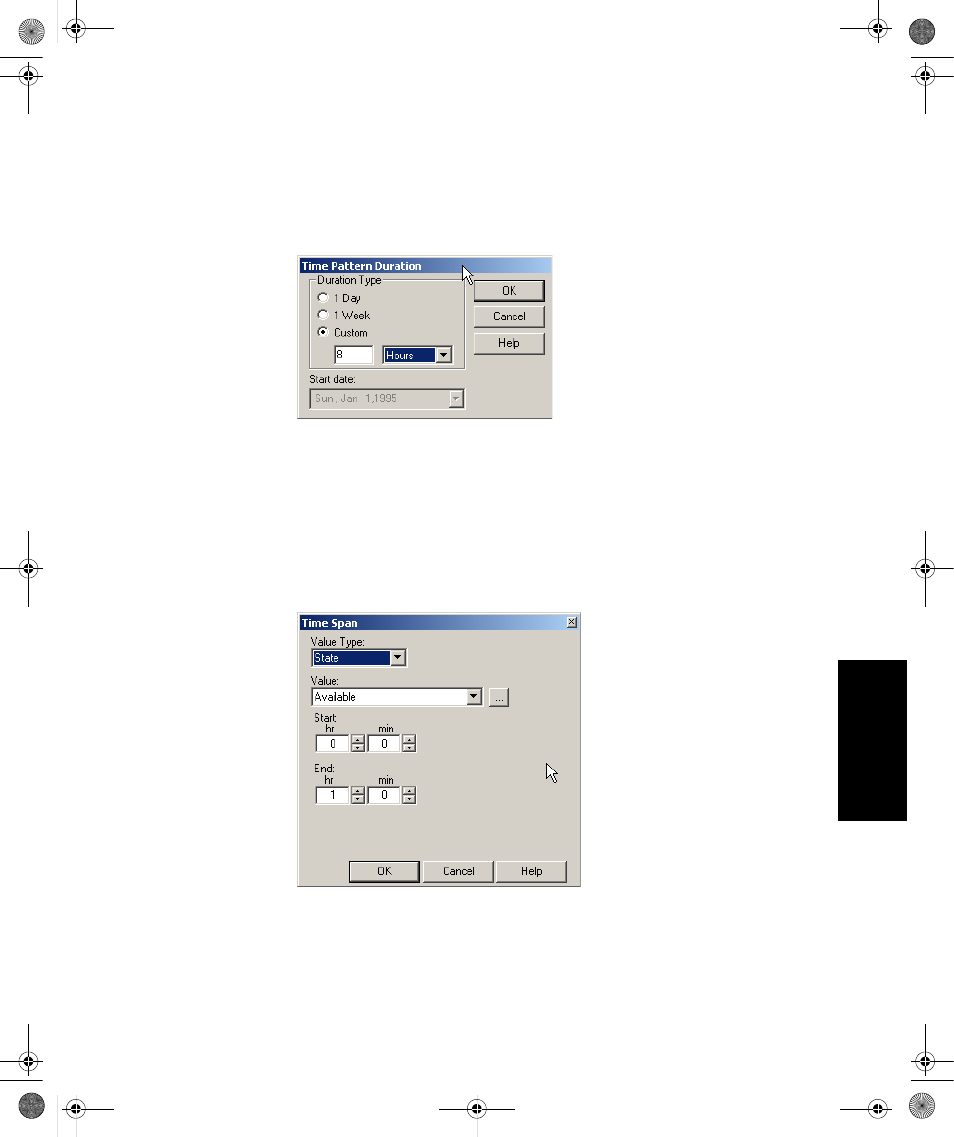

6. We want our shift to last 8 hours. Click the browse button (...) next to the Duration
box. The Time Pattern Duration dialog will display.
7. Select the Custom option for Duration Type and enter a duration of 8 Hours. Press
OK to return to the Time Patterns dialog.
8. In the Report Name box, enter Shift A. In the Shift number box, enter the shift
number that you want to use to refer to this shift when reporting on the Discrete MPS
data that is collected. For this example, enter 1 in the Shift box.
9. Right-click on the time span grid at the right and select New Time Span... from the
shortcut menu. The Time Span dialog will display.
10. Make sure the Value Type is set to State and the Value is set to Available.
