Page 36
Publication 8720MC-IN001D-EN-P — December 2002
2-2
8720MC Connector Data
Locating 8720MC Drive
Connectors and Indicators

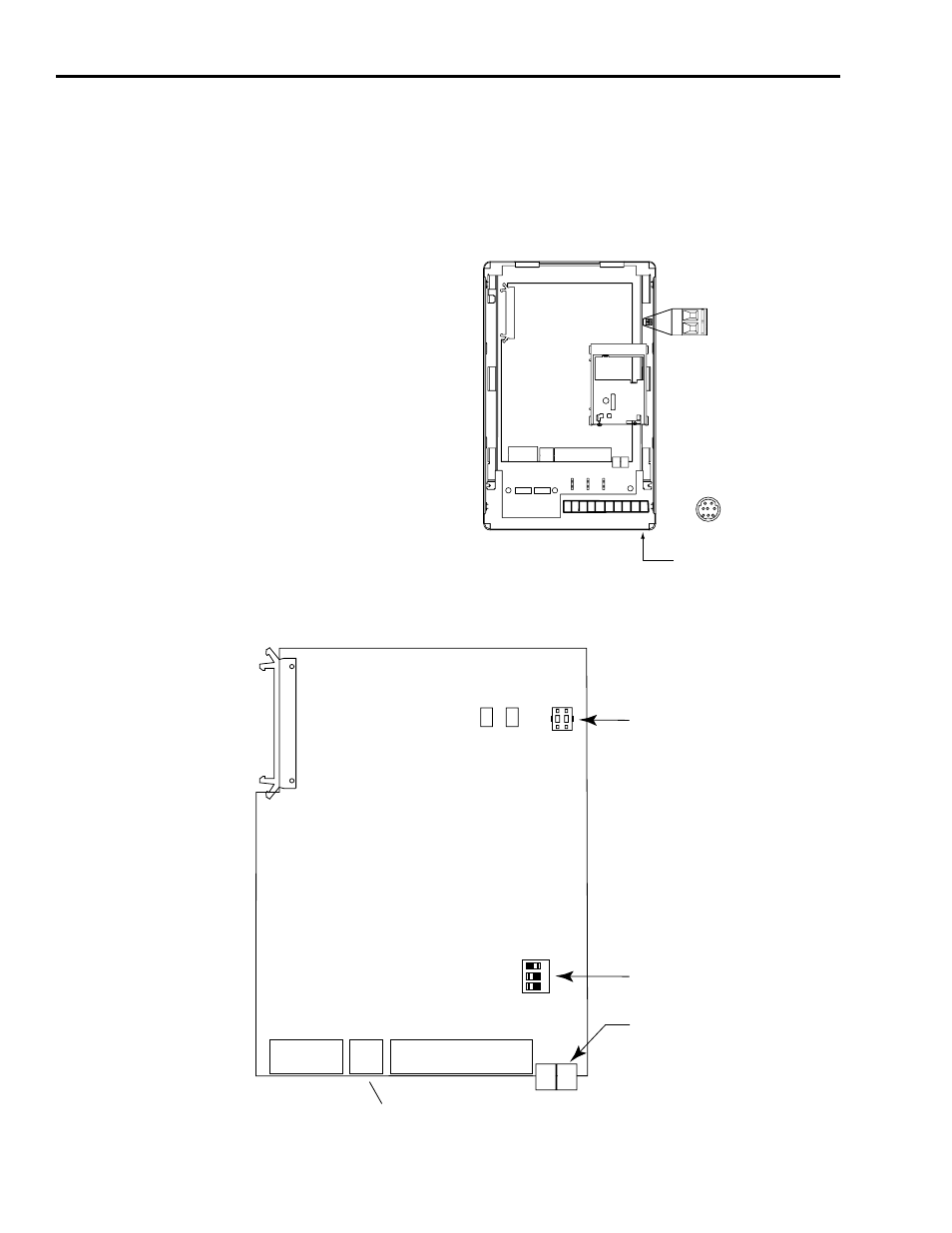

Use the figures below to locate the 8720MC drive connectors and
indicators. Figure 2.1 illustrates the location of the 8720MC control
board and TB1/TB4 on the base driver board. Figure 2.2 illustrates the
location of connectors and indicators on the 8720MC control board.
Figure 2.1
B Frame Chassis Connector Layout
Figure 2.2
8720MC Control Board Connector Layout
8720MC
Control
Board
P1
P4
P5
B Frame Chassis
TB1
Shield
Clamps
SCANport/DPI
Connector
(facing down)
1 2
2 1
TB4
+24V dc Logic Input
1 2 3
ON OFF
TX RX
P1
P4
P5
Power Structure
Ribbon Connector
Drive Status
LED
SERCOS Network
Status LED
SERCOS Node
Address Switch
SERCOS Baud Rate
and Optical Power Switches
SERCOS Fiber-Optic
Connectors
Discrete I/O
Analog Outputs
and Registration Inputs
Motor/Aux Feedback and
Analog Commands
8720MC Control Board
