Connecting to the external active shunt module, Connecting to the external active shunt module -24, Connecting to the external active shunt module , o – Rockwell Automation 8720MC High Performance Drives Installation Manual User Manual
Page 86: Connecting to, The external active shunt module

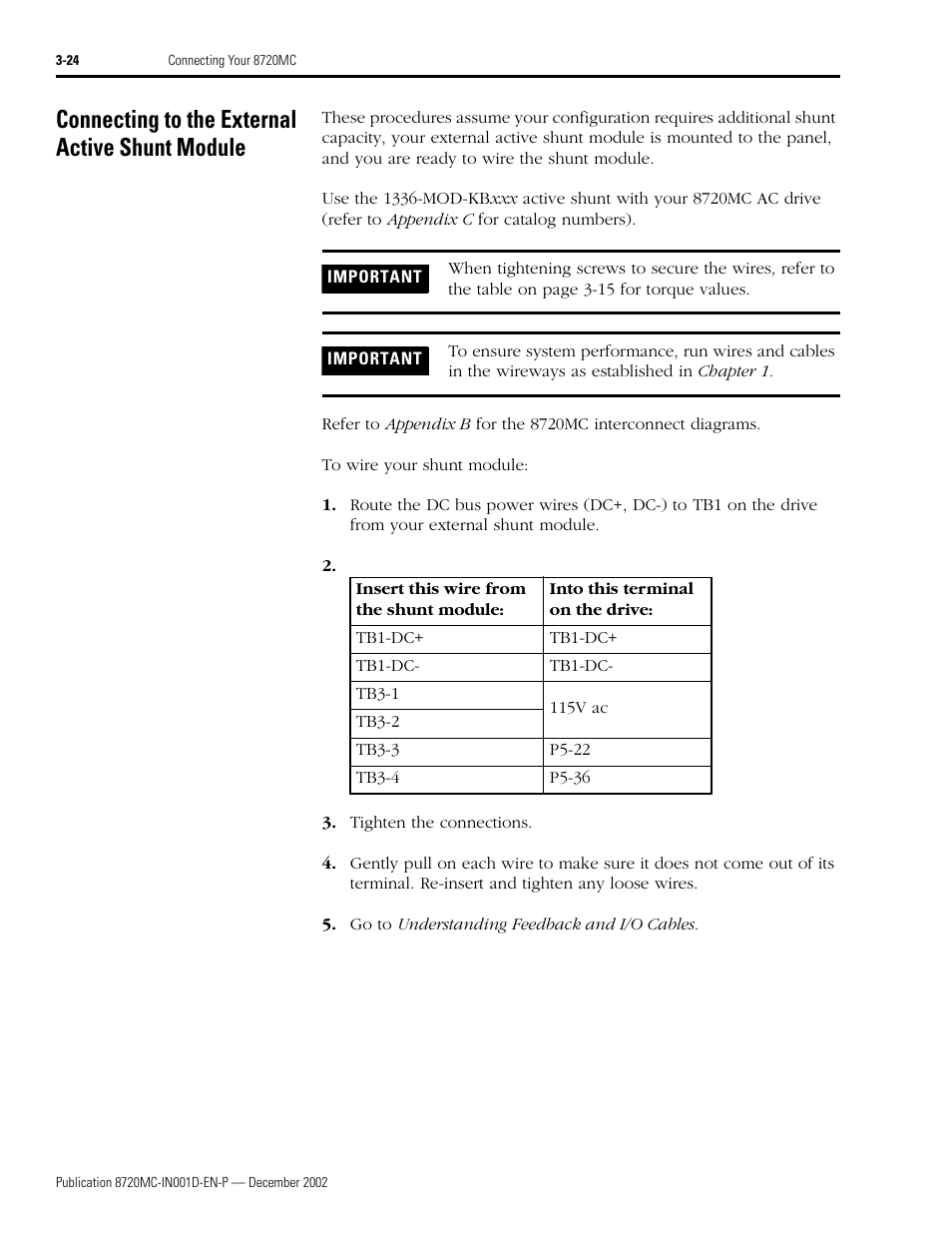

Connecting to the external active shunt module, Connecting to the external active shunt module -24, Connecting to the external active shunt module , o | Connecting to, The external active shunt module | Rockwell Automation 8720MC High Performance Drives Installation Manual User Manual | Page 86 / 133 See also other documents in the category Rockwell Automation Equipment:
