Loading an Application
Chapter 2
2–10
8. Highlight Download File to DTAM Plus and press [Return].

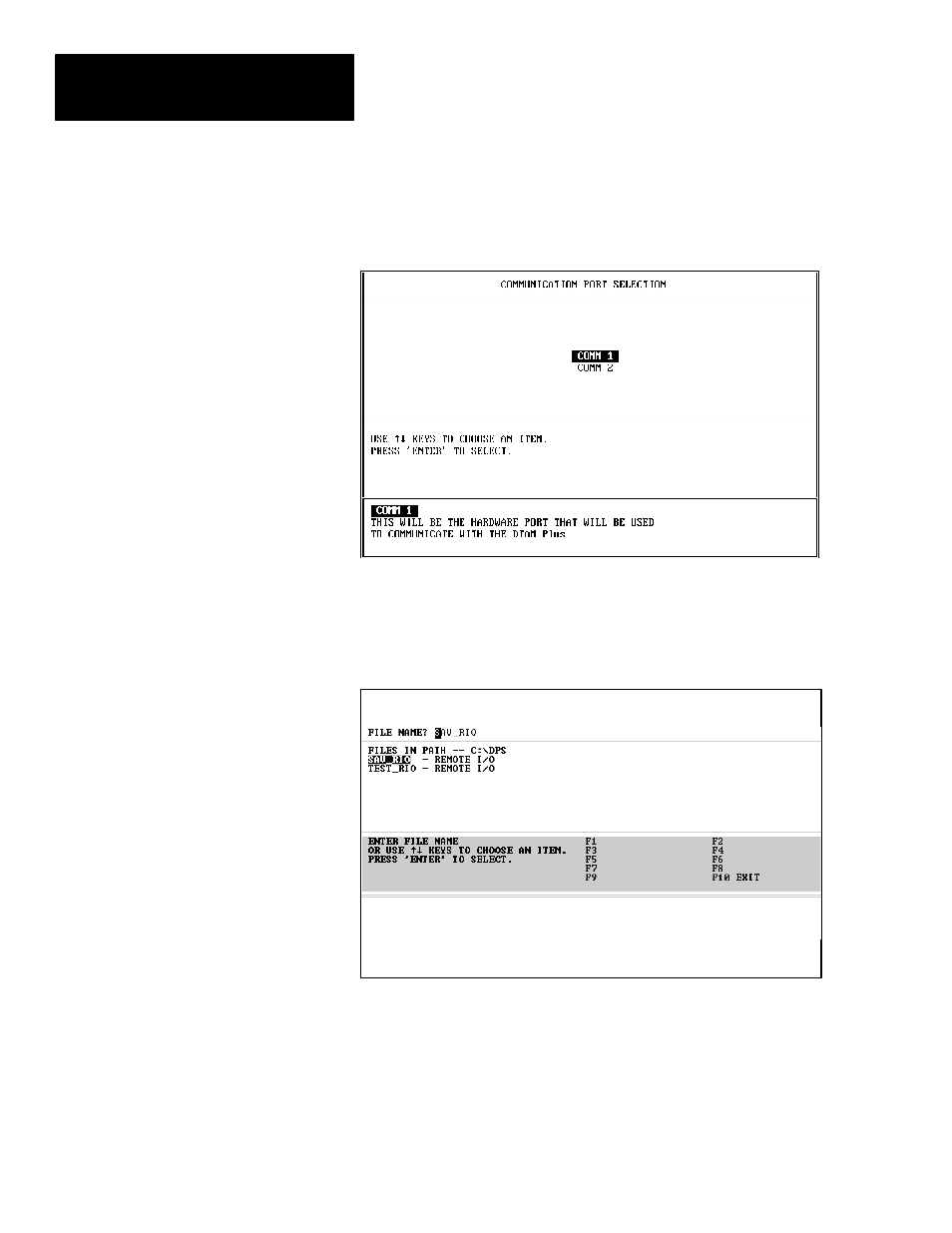

The Communication Port Selection screen appears.
. You will not see this screen if a
communication port was
specified during DPS
installation.
9. Highlight the serial port on your computer that is connected to the
DTAM Plus (COMM 1 or COMM 2) and press [Return].
10. When communication is established, this screen appears:
11. Enter or select the file you want to download. If the application file type
(DH-485, PLC5 DF1, or Remote I/O) is different from the existing
DTAM Plus operating system, you are prompted to download the new
operating system.
☞
If a communication link does not
occur in 10 seconds, you get an
error message. Check DTAM Plus
DIP switch settings and cable
connections.
☞
If a RAM memory error occurs,
make sure enough computer base
RAM is available. If other
programs such as windows are
running, reboot your computer to
exit to DOS.
Downloading an Application
