This chapter examines the analog input module’s data table, channel status, and
channel configuration word.
1769-IF4I Input Module
Addressing
The1769-IF4I memory map shows the output, input, and configuration tables
for the 1769-IF4I module.

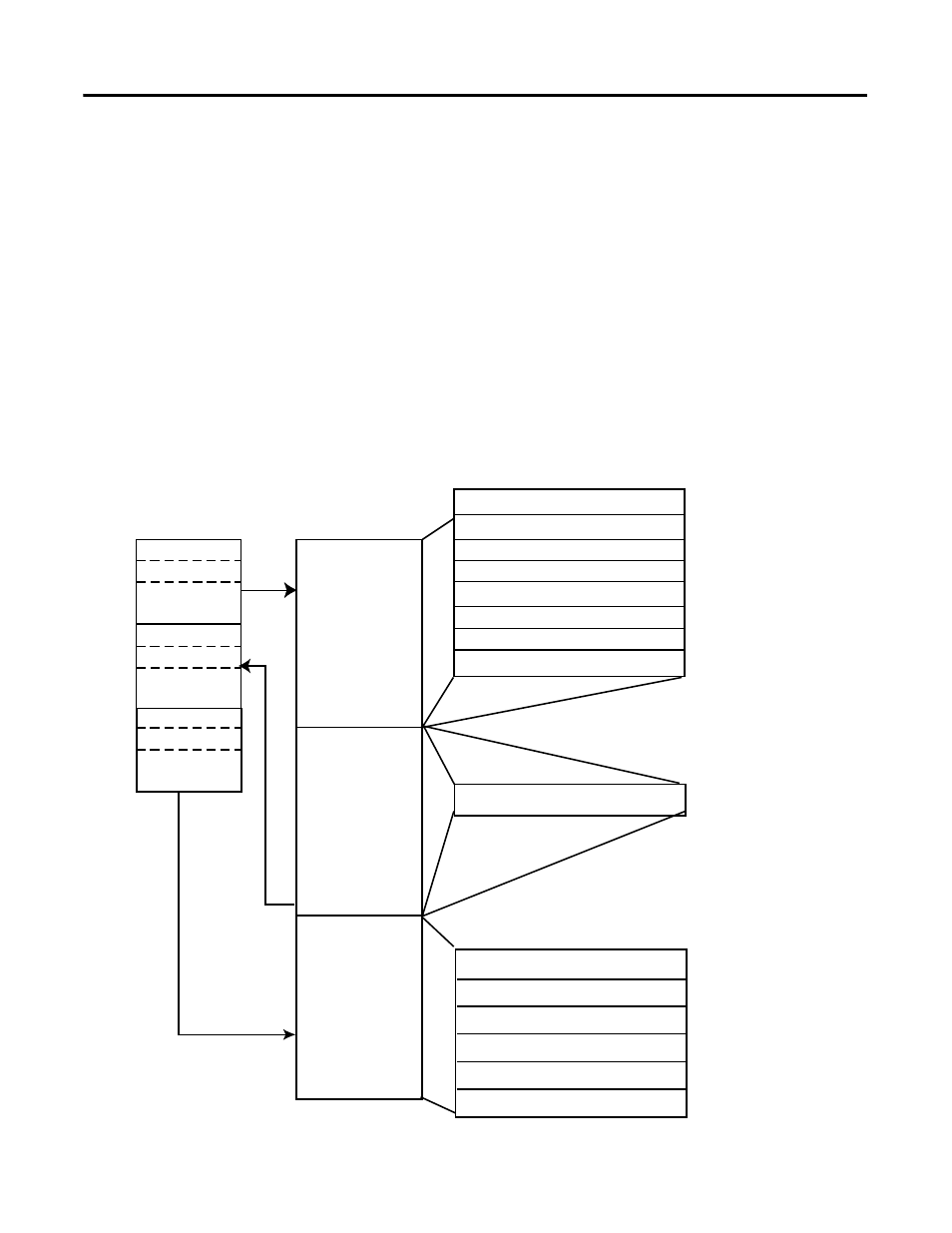

Figure 3.1 1769-IF4I Memory Map
Slot e
Input Image
File
Output Image
File
Configuration
File
Slot e
Slot e
Input Image
7 Words
Output Image
1 Word
Configuration File
26 Words
Memory Map
Bit 15
Bit 0
Channel 3 Configuration Words
Words 20 to 25
Channel 2 Configuration Words
Words 14 to 19
Channel 1 Configuration Words
Words 8 to 13
Channel 0 Configuration Words
Words 2 to 7
Clear Latched Alarm Bits
Word 0
High-/Low-alarm & Over-/Under-range
Word 6
General Status Bits
Word 5
Time Stamp Value Word
Word 4
Channel 3 Data Word
Word 3
Word 2
Channel 2 Data Word
Word 1
Channel 1 Data Word
Channel 0 Data Word
Word 0
Enable Time Stamp
Word 1, bit 15
Real Time Sample Rate
Word 0
