Overview 1-3

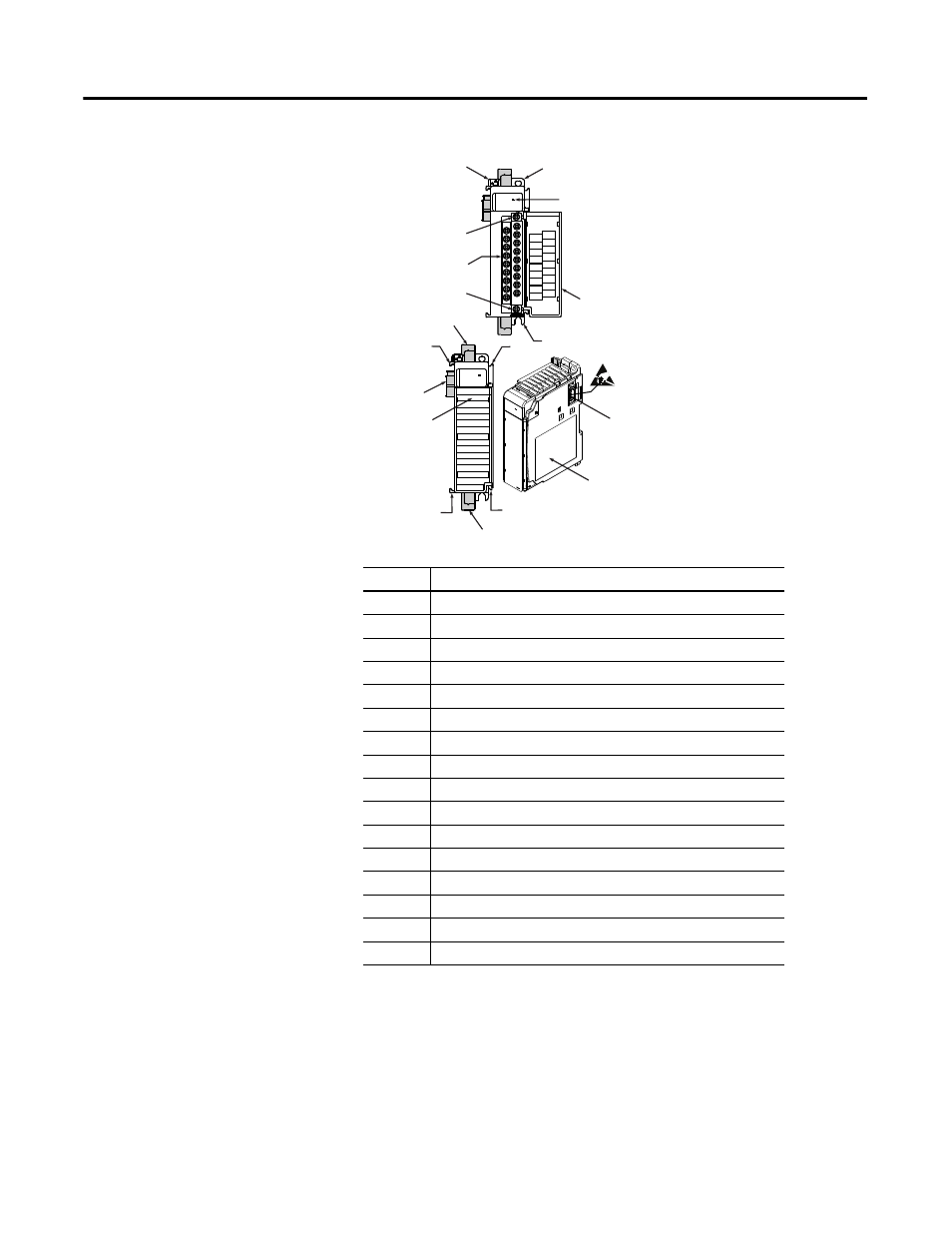

Figure 1.2 Isolated Analog Modules’ Hardware Features
Table 1.2 Isolated Modules’ Feature Descriptions
Item
Description
1
Bus lever (with locking function)
2a
Upper-panel mounting tab
2b
Lower-panel mounting tab
3
Module status LEDs
4
Module door with terminal identification label
5a
Movable bus connector with female pins
5b
Stationary bus connector with male pins
6
Nameplate label
7a
Upper tongue-and-groove slots
7b
Lower tongue-and-groove slots
8a
Upper DIN-rail latch
8b
Lower DIN-rail latch
9
Write-on label for user identification tags
10
Removable terminal block (RTB) with finger-safe cover
10a
RTB upper retaining screw
10b
RTB lower retaining screw
10a
10b
4
10
2b
3
2a
1
5a
9
5b
6
7a
7b
8b
7b
8a
7a
1769-IF4I
DANGER
Do Not Remove RTB Under Power
Unless Area is Non-Hazardous
Ensure Adjacent
Bus Lever is Unlatched/Latched
Before/After
Removing/Inserting Module
N/C
Ch3+
N/C
Ch3-
Ch1+
Ch1-
N/C
Ch3_iRtn
N/C
Ch0+
Ch0-
Ch2+
Ch2-
Ch0_iRtn
N/C
Ch2_iRtn
N/C
Ch1_iRtn
OK
Analog
OK
Analog
