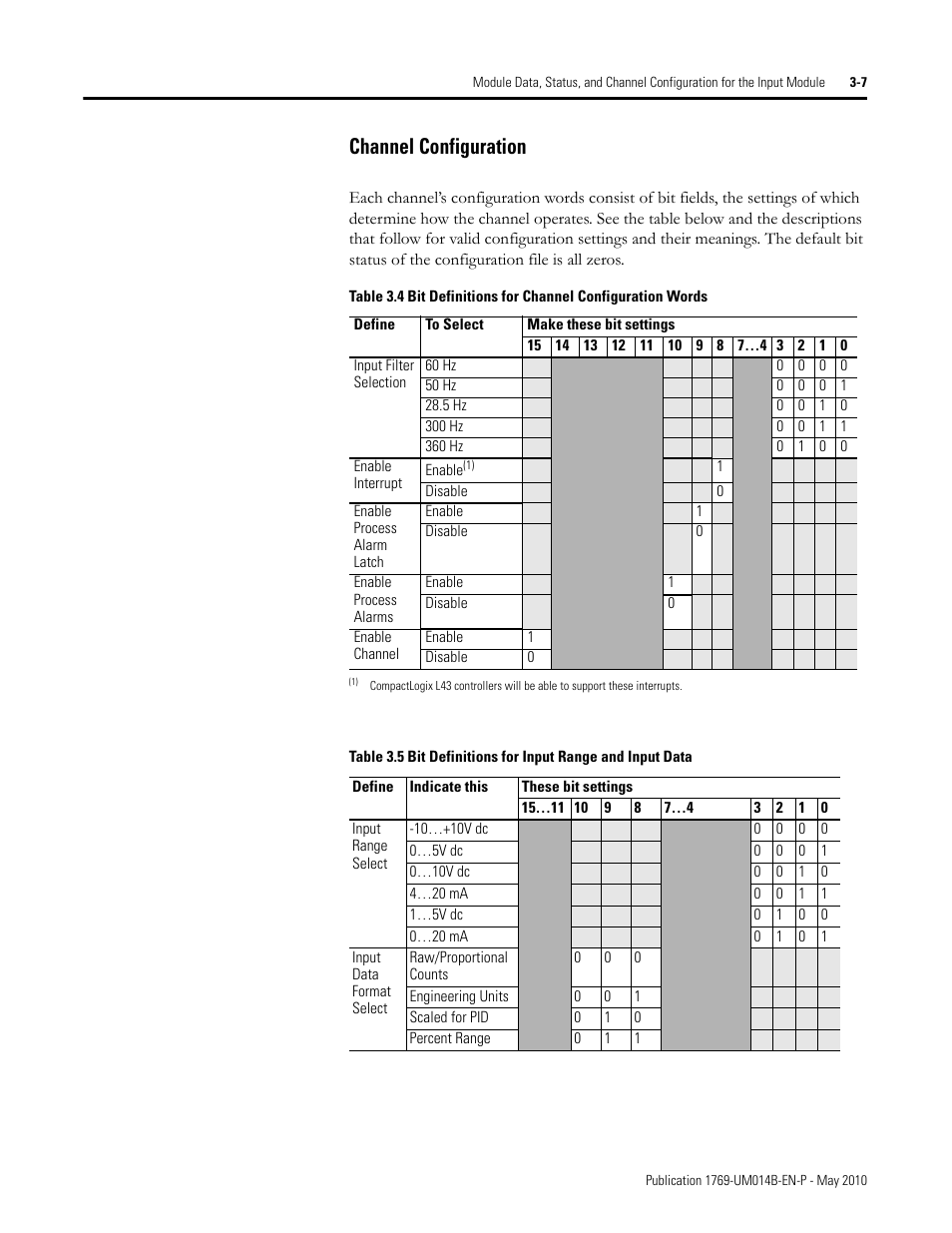

Channel configuration, Channel configuration -7 – Rockwell Automation 1769-OF4VI Compact I/O Isolated Analog Modules User Manual
Page 45
This manual is related to the following products:
