Rockwell Automation 1788-CN2FFR EtherNet/IP and ControlNet to FOUNDATION Fieldbus Linking Device User Manual
Page 80
78
Rockwell Automation Publication 1788-UM057B-EN-P - September 2014
Appendix C
Field Device Block Configuration Examples

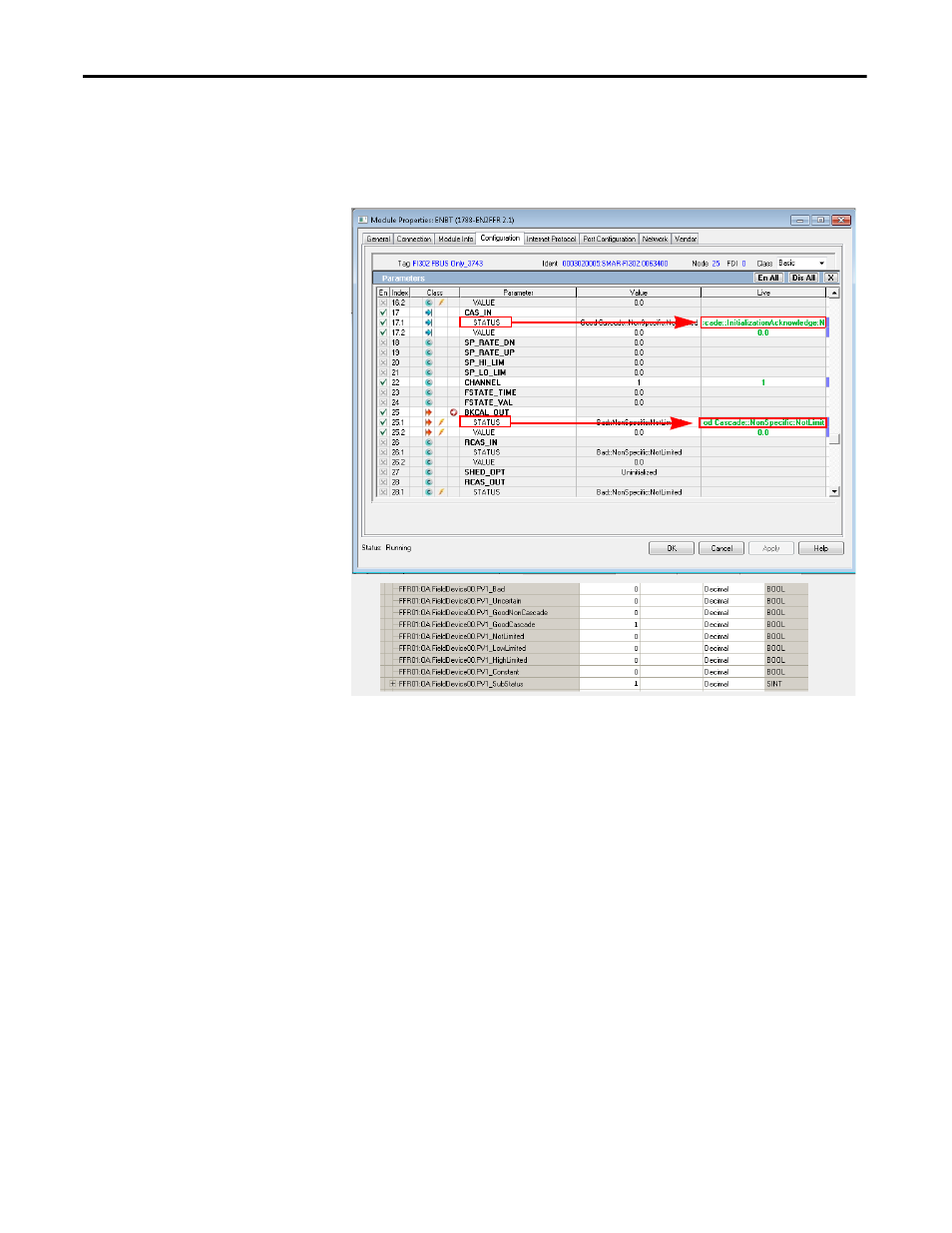

The InitializationRequested status in BKCAL_OUT > STATUS > Live
column is cleared and replaced by the value, NonSpecific.
The CAS_IN > STATUS > Live column displays a status of
InitializationAcknowledge.
