Set Up in the Studio 5000 Logix Designer Application
Chapter 2

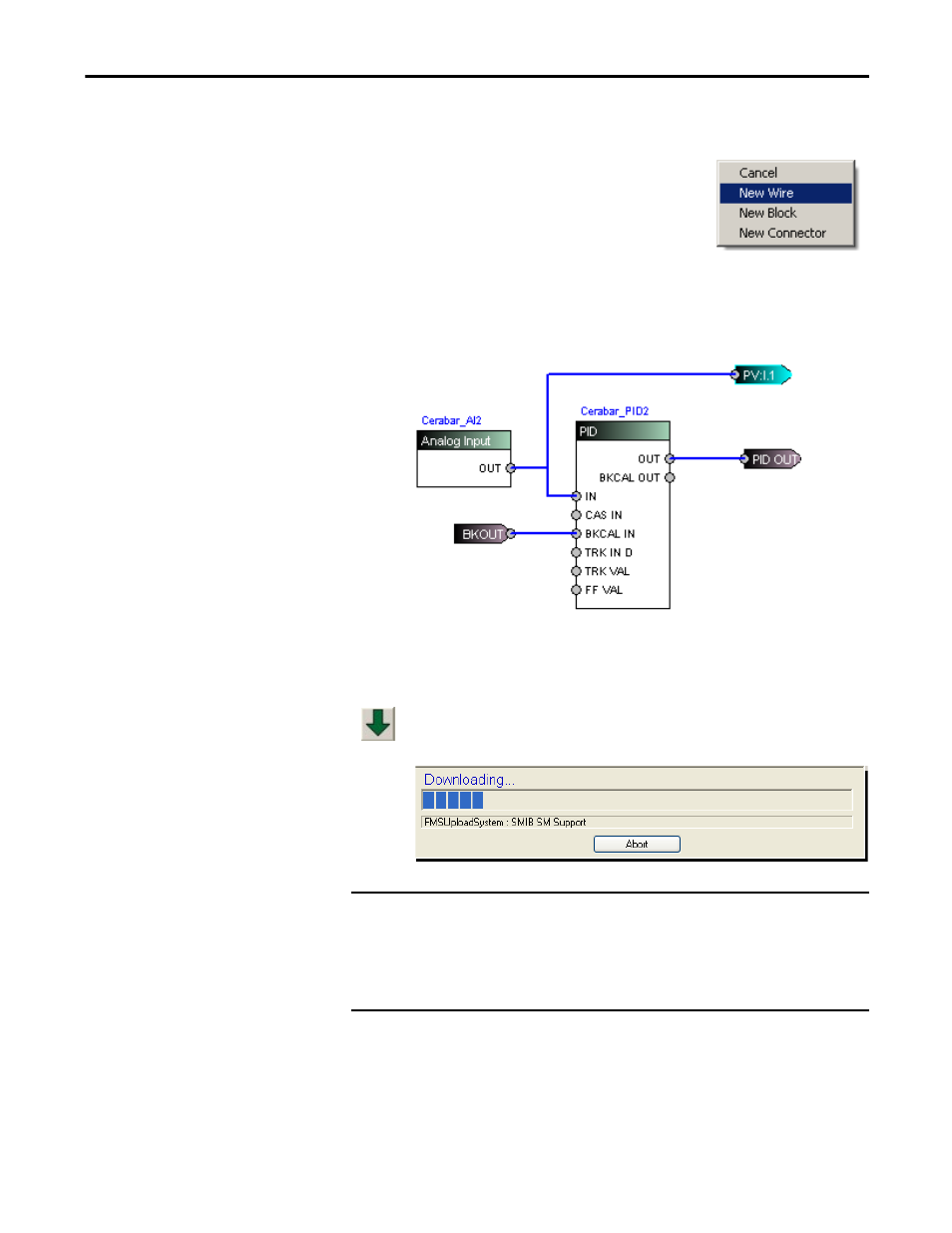

Add Wires
Wires are used to connect input and output ports on
the blocks to other ports or connectors.
Follow these steps to add a wire.
1.
To add a wire, right-click in the window and
choose New Wire.
2.
Drag the ends of the wires to the docking points on the block and the
connectors.
Download the Configuration
When the configuration is complete, click the Download button to
download the configuration to the field device. The download status is
displayed in the progress bar.
IMPORTANT
The first configuration download for a device requires more time than
subsequent downloads due to extra data required for configuring the
communication links (virtual communication relationship [VCR]).
After the communication links are created, configuration downloads are
quicker.
