Interface
1-2
a programmable controller with Allen-Bradley’s pass-through
functionality connected to a host computer on the DH+ network running
application software to initiate communications
Use the RS-232C port (labelled RS-232 in Figure 1.1) with the following:
a host computer using Allen-Bradley DF1 protocol, connected to the
Communications Controller by an RS-232 cable (if the distance is less
than 50 feet)
a host computer using Allen-Bradley DF1 protocol, connected to the
Communications Controller by telephone lines and modems
The Communications Controller requires an external 24 VDC power
supply. It provides a multiplexed, 32 channel interface to the Terminal
Blocks. All of the Remote I/O and RS-232C communications parameters
are set on the Communications Controller using push buttons and a seven
segment LED display.

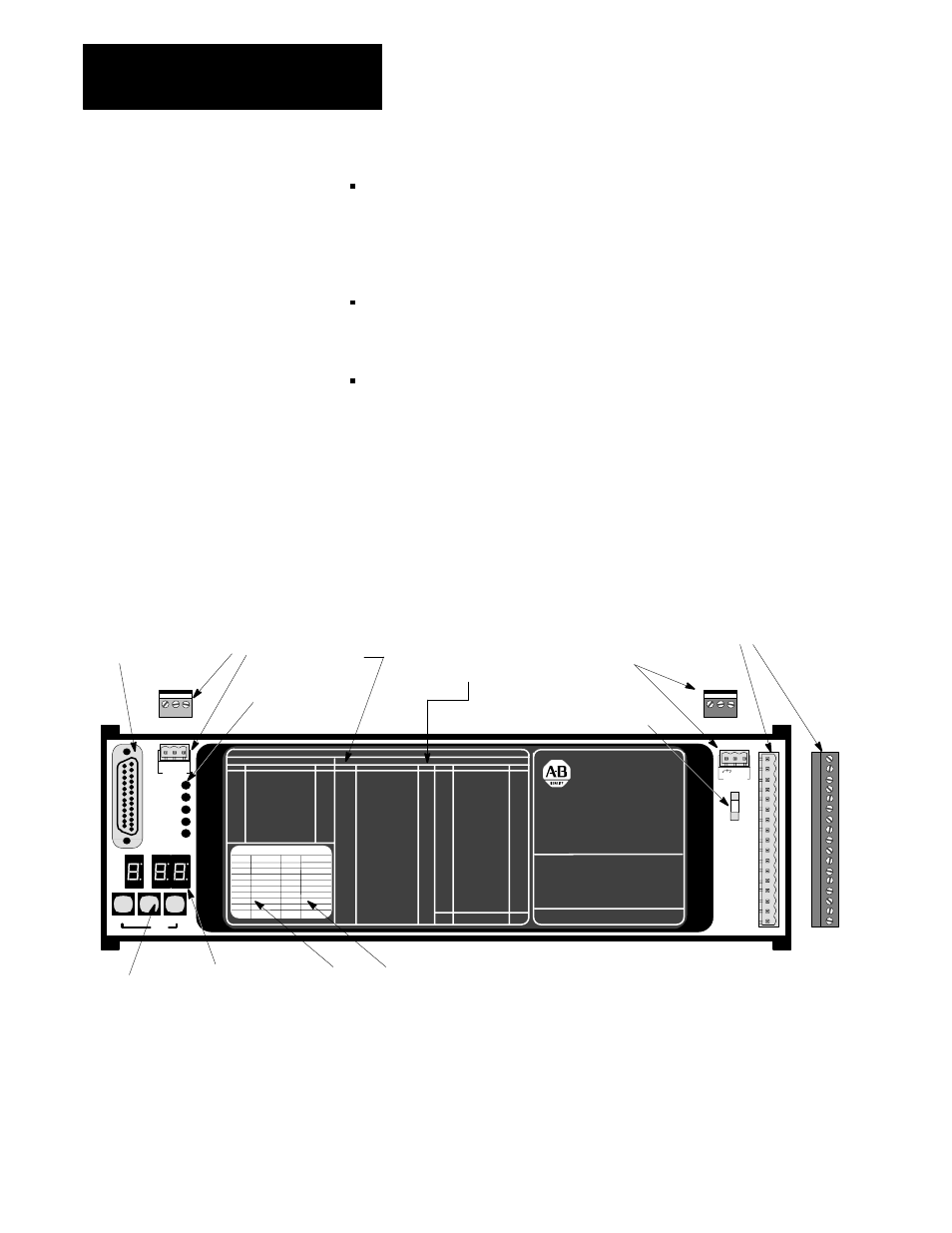

Figure 1.1
