Rockwell Automation Publication 1769-UM005B-EN-P - March 2012 99
Configuring the 1769-IR6 RTD Module with the Generic Profile Appendix B
This screen narrows your search for I/O modules to configure into your
system. With the initial release of the CompactLogix5320 controller, this
screen only includes the “Generic 1769 Module”. Click the OK button and the
following default Generic Profile screen appears:

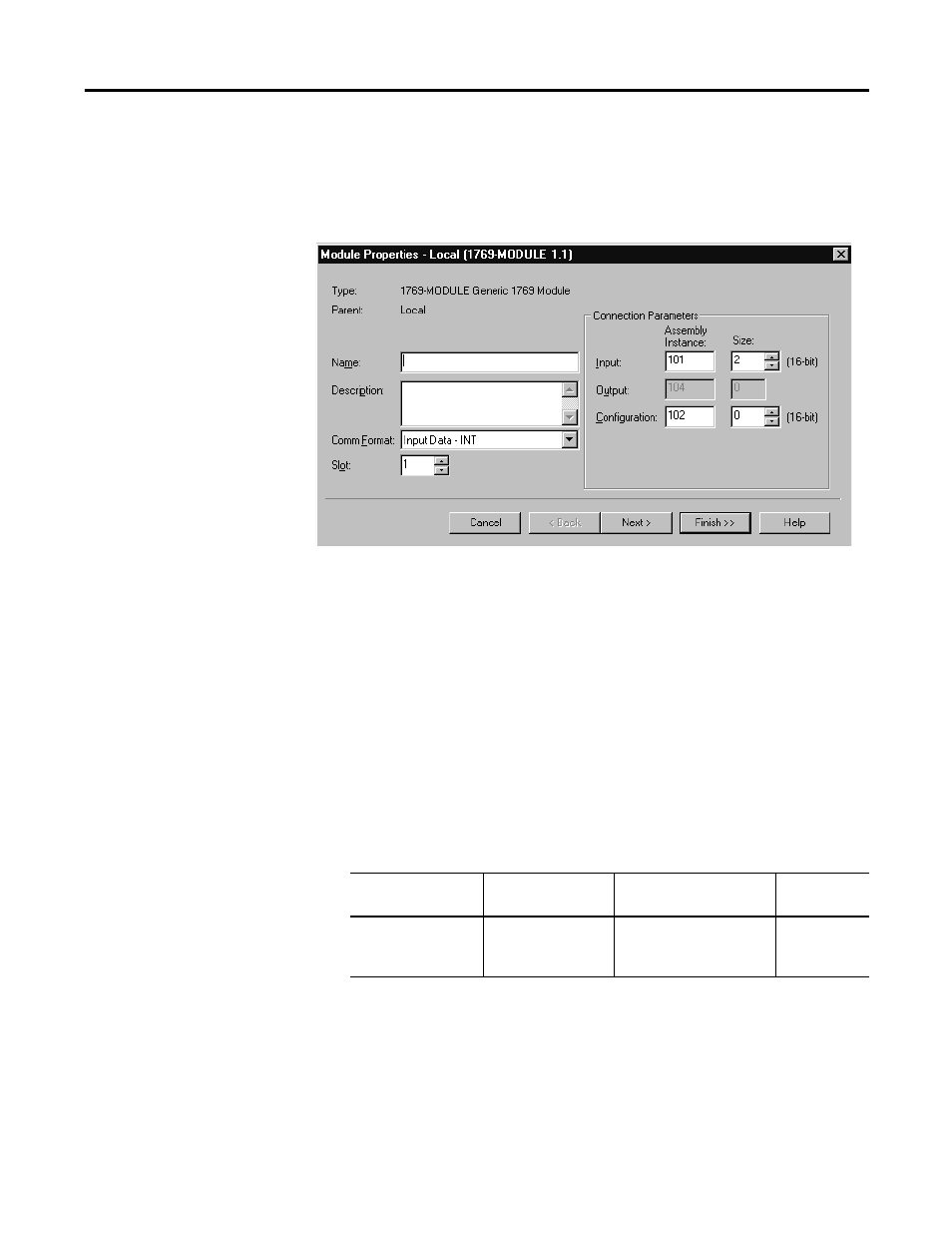

This is the default Generic Profile screen. First, select the Comm Format
(“Input Data – INT” for the 1769-IR6), then fill in the name field. In this
example, “IR6” is used to help identify the module type in the Controller
Organizer. The Description field is optional and may be used to provide more
details concerning this I/O module in your application.
The slot number must be selected next, although it begins with the first
available slot number, 1, and increments automatically for each subsequent
Generic Profile you configure. In this example, the 1769-IR6 RTD Input
module is located in slot 1.
The Comm Format, Assembly Instance and Size values can be found in the
following table for the 1769-IR6 RTD Input module:
Comm Format Parameter Assembly
Instance
Size
(16-bit)
Input Data – INT Input
Output
Config
101
104
102 8
0
8
