Rockwell Automation 1769-IR6 Compact I/O 1769-IR6 RTD/Resistance Input Module User Manual
Page 96
96
Rockwell Automation Publication 1769-UM005B-EN-P - March 2012
Appendix A Module Addressing and Programming with MicroLogix 1500 and RSLogix 500

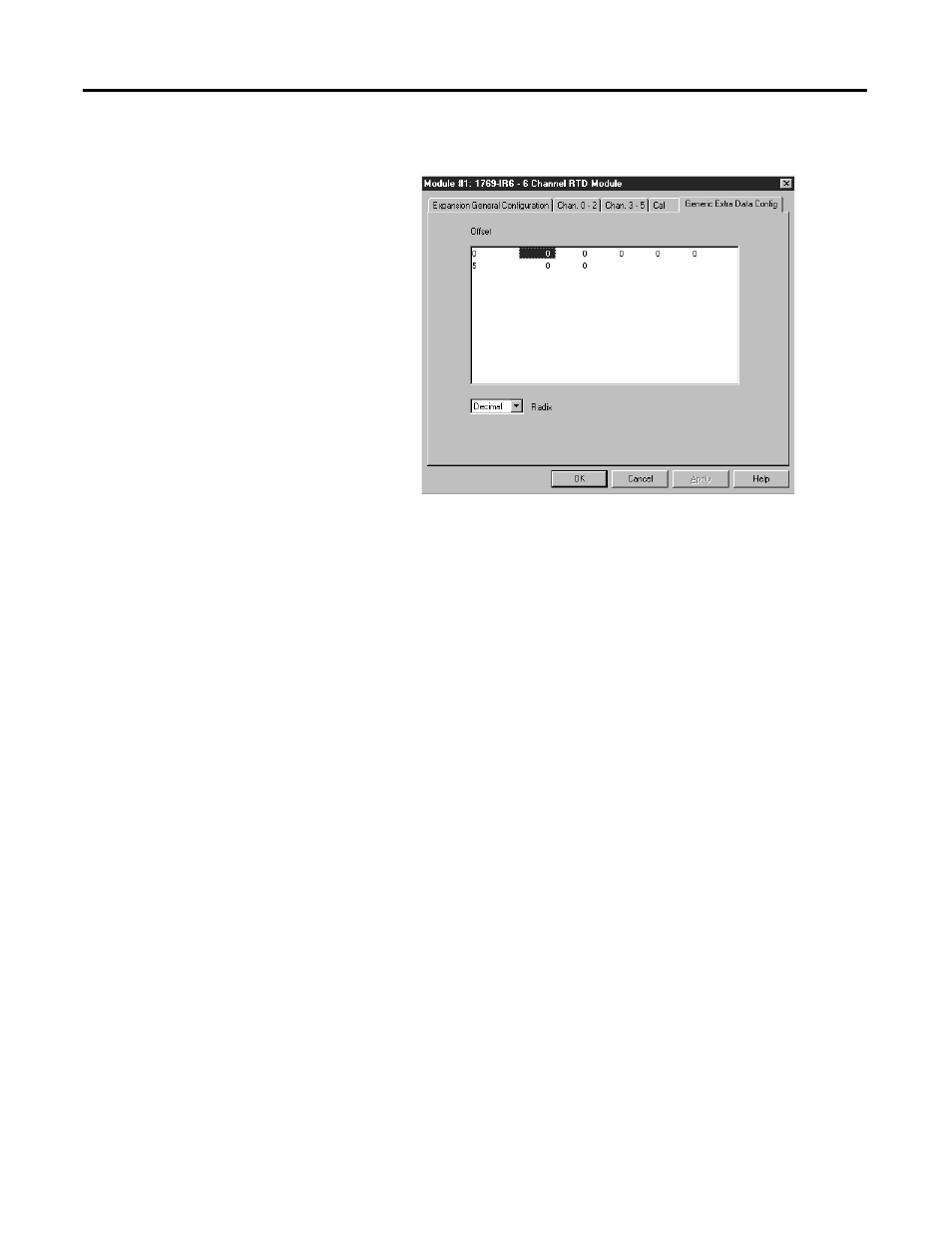

Generic Extra Data Configuration
This tab redisplays the configuration information entered on the Analog Input
Configuration screen in a raw data format. You have the option of entering the
configuration using this tab instead of the module Configuration tab. You do
not have to enter data in both places.
