Module Addressing and Programming with MicroLogix 1500 and RSLogix 500 Appendix A
Configuring the 1769-IR6 in
a MicroLogix 1500 System This example takes you through configuring your 1769-IR6 RTD/resistance
input module with RSLogix 500 programming software, assumes your module
is installed as expansion I/O in a MicroLogix 1500 system, and that RSLinx™
is properly configured and a communications link has been established
between the MicroLogix processor and RSLogix 500.

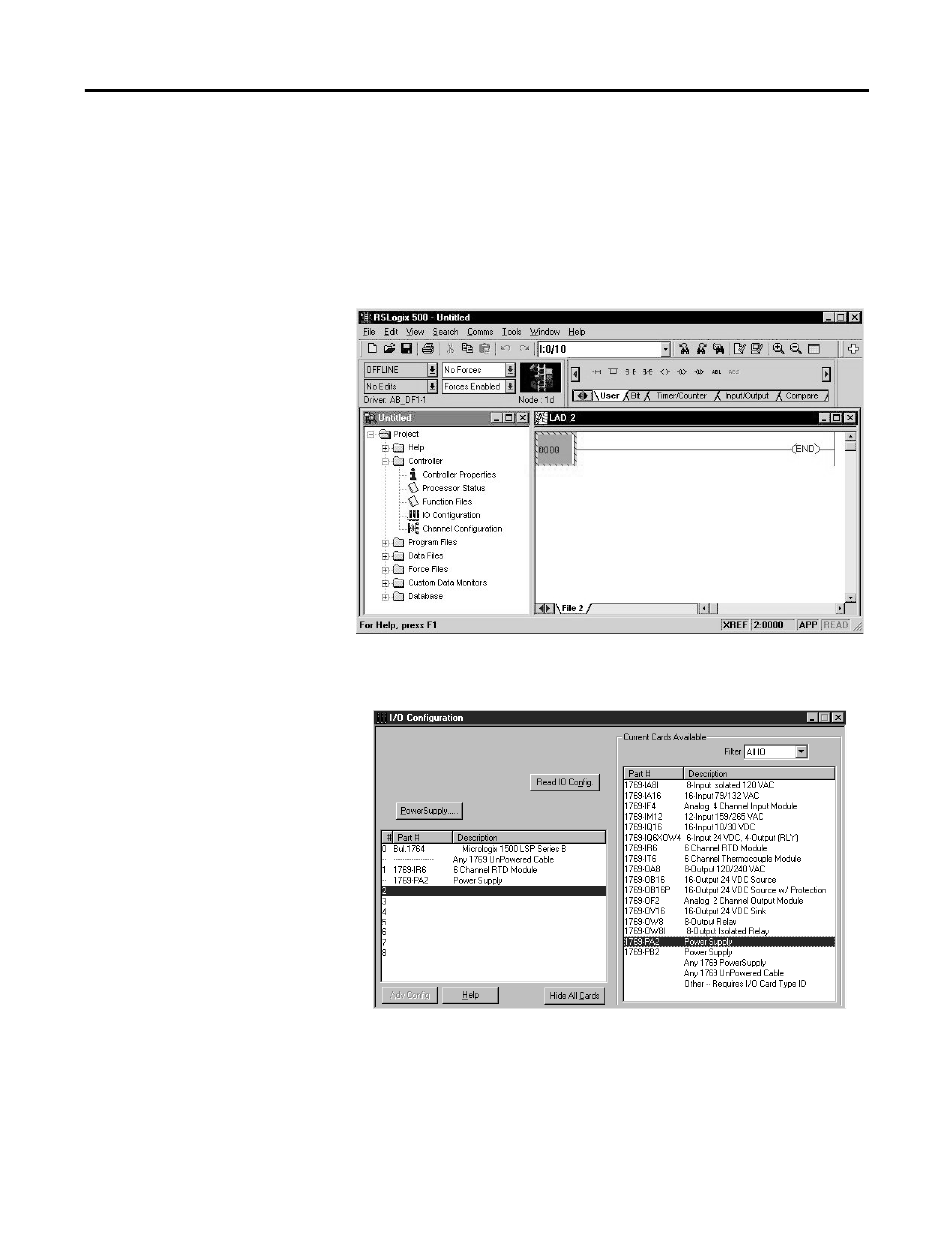

Start RSLogix and create a MicroLogix 1500 application. The following screen
appears:
While offline, double-click on the IO Configuration icon under the controller
folder and the following IO Configuration screen appears.
This screen lets you manually enter expansion modules into expansion slots, or
to automatically read the configuration of the controller. To read the existing
controller configuration, click on the Read IO Config button.
