Block format instructions chapter 10 – Rockwell Automation 1772-LV Mini-PLC - 2/15 Programmable Controller (Series B) Programming and Operations User Manual
Page 126

Block Format Instructions
Chapter 10
10Ć4
KEY
DISPLAY
Now the cursor is on the first digit of the file length.
EN
DN
112
05
200
17
200
15
007
0200
001
007
0000-0000
0000-0000
000
File to File Move
Counter Addr:
Position:
File Length:
File A:
File R:
Rate Per Scan:

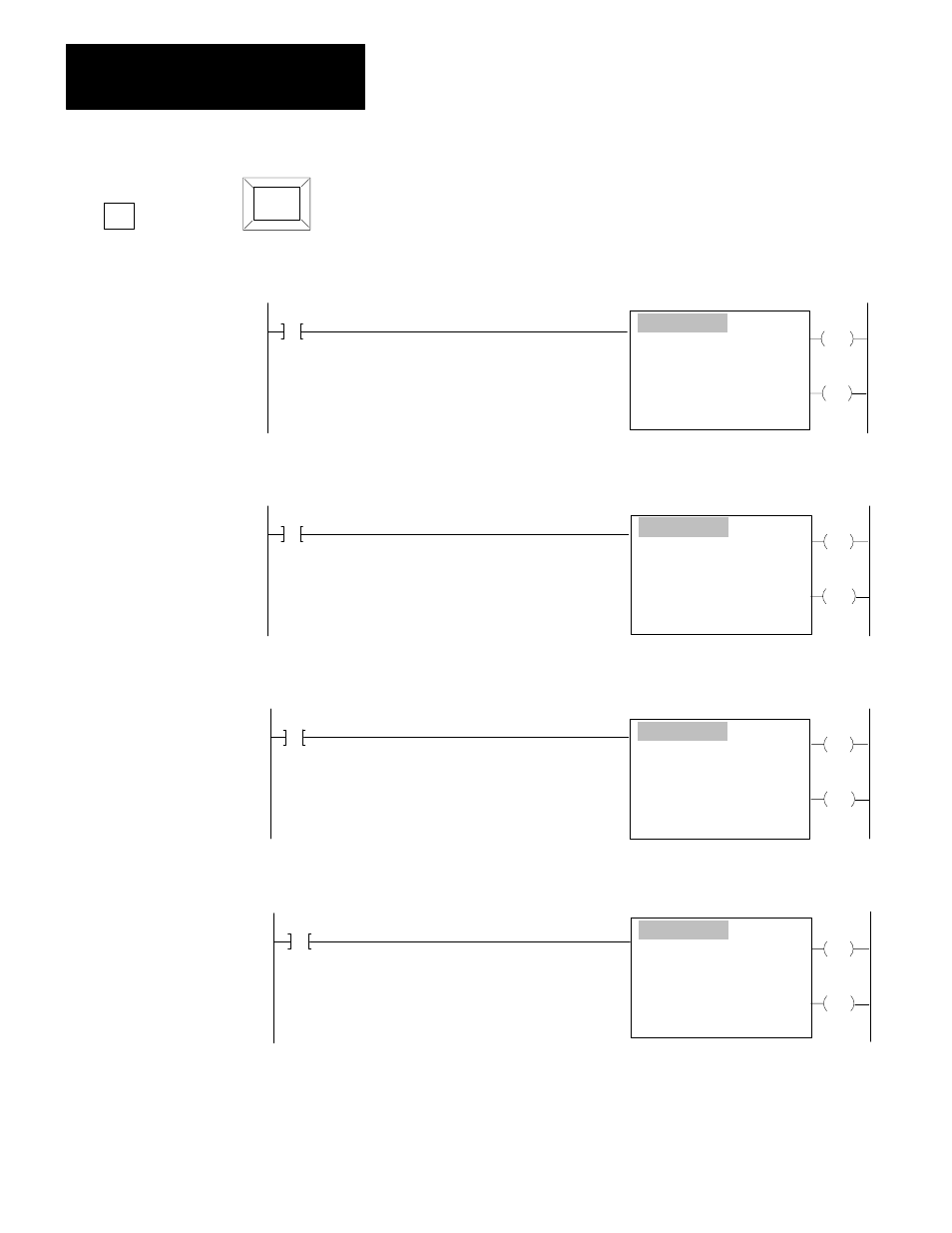

The cursor moved to the first digit of file A.
EN
DN
112
05
200
17
200
15
0400
200
001
007
0400Ć0406
0000-0000
000
File to File Move
Counter Addr:
Position:
File Length:
File A:
File R:
Rate Per Scan:
The cursor moved to the first digit of file R.
EN
DN
112
05
200
17
200
15
0500
200
001
007
0400Ć0406
0500Ć0506
000
File to File Move
Counter Addr:
Position:
File Length:
File A:
File R:
Rate Per Scan:
Finally, the cursor is on the first digit of the rate per scan.
EN
DN
112
05
200
17
200
15
007
200
001
007
0400Ć0406
0500Ć0507
007
File to File Move
Counter Addr:
Position:
File Length:
File A:
File R:
Rate Per Scan:
