Publication 1747-UM003A-EN-P
Installing Your ControlNet Adapter Module 2-5

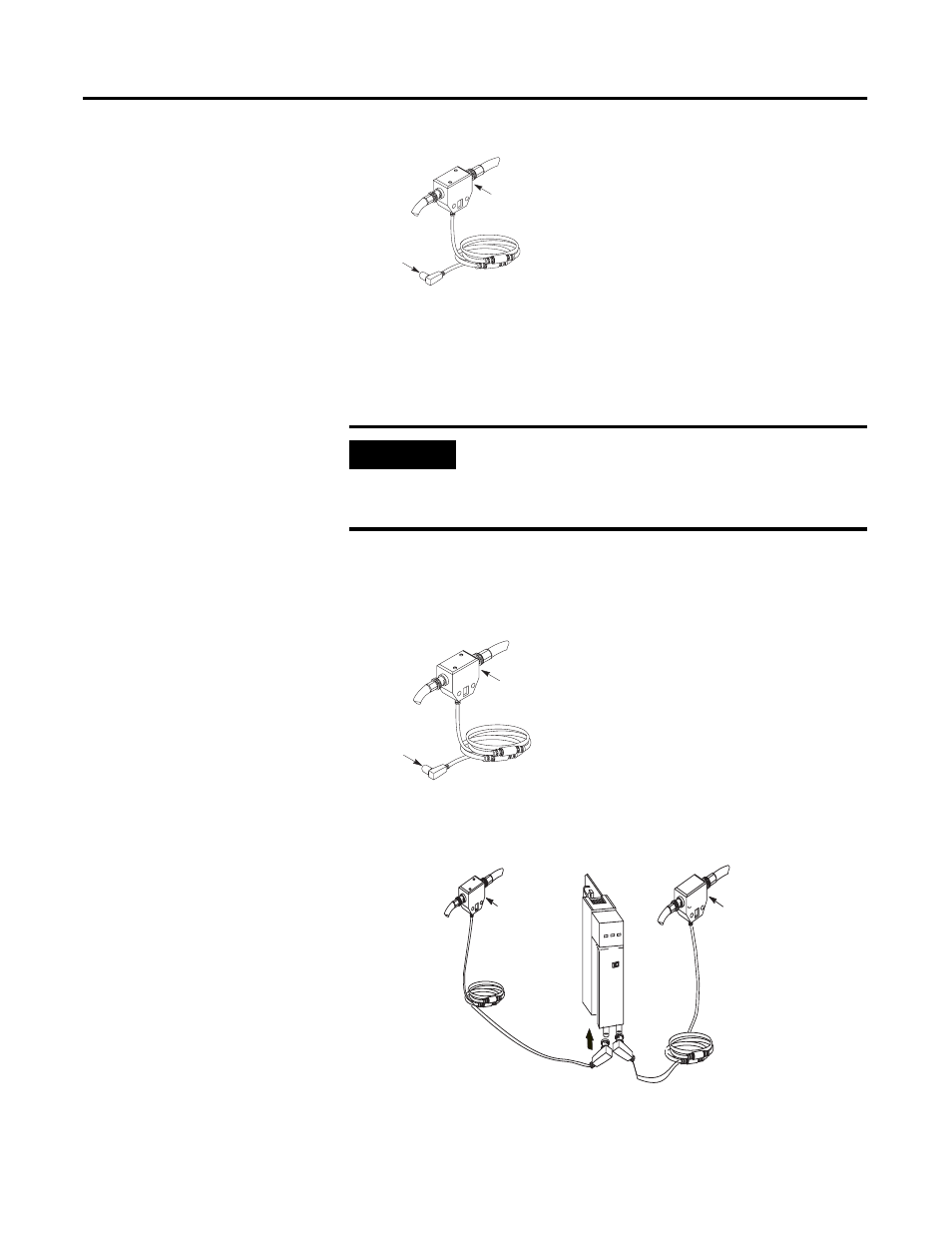

2. Remove and discard the dust caps from the adapter BNC jacks.
3. Connect this tap’s straight or right angle connector to the BNC
connector on the adapter.
4. For redundant adapters (1747-ACNR15), remove (and save) the dust
cap located on the straight or right angle connector of the designated tap
on the second segment (segment 2).
5. Connect this tap’s straight or right angle connector to the BNC
connector on the adapter.
After terminating your segments, connect the node to the network.
IMPORTANT
To prevent inadvertent reversal of the tap connections
(resulting in incorrect LED displays and troubleshooting),
check the tap drop cable for a label indicating the attached
segment before making your connection.
segment 1
Tap
dust cap
segment 2
tap
dust cap
segment 1
tap
segment 2
tap
