Publication 1747-UM003A-EN-P
2-2 Installing Your ControlNet Adapter Module
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low Voltage, by
applying the safety requirements of EN 61131-2 Programmable Controllers,
Part 2 - Equipment Requirements and Tests.
For specific information required by EN 61131-2, see the appropriate sections
in this publication, as well as the following Allen-Bradley publications:
•
Industrial Automation Wiring and Grounding Guidelines For Noise
Immunity, publication 1770-4.1
•
Automation Systems Catalog, publication B111
Determining Power
Requirements
The ControlNet adapter module requires a maximum backplane current of
900 mA at 5V dc. Remember to add this amount to other current
requirements for your I/O chassis.
Setting the Network
Address Switches
The switches on the top of the adapter module determine the network address
of the adapter. The two switches are:
•
the ten’s switch
•
the one’s switch
The combination of these switches allows selection of network addresses from
01 to 99.

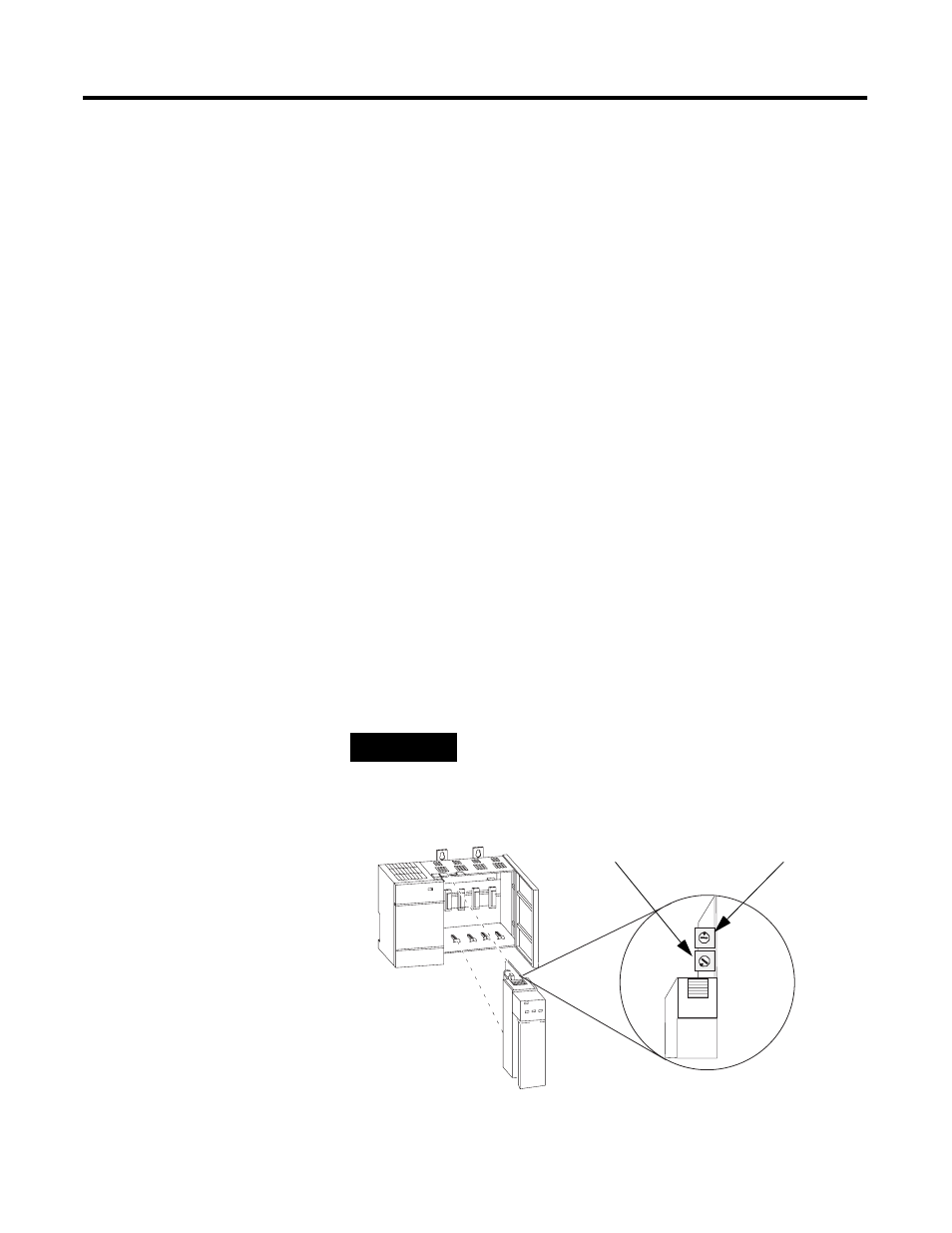

Figure 2.1 Setting the Network Address
NOTE
00 is an invalid number.
Ten’s
Selection
One’s
Selection
