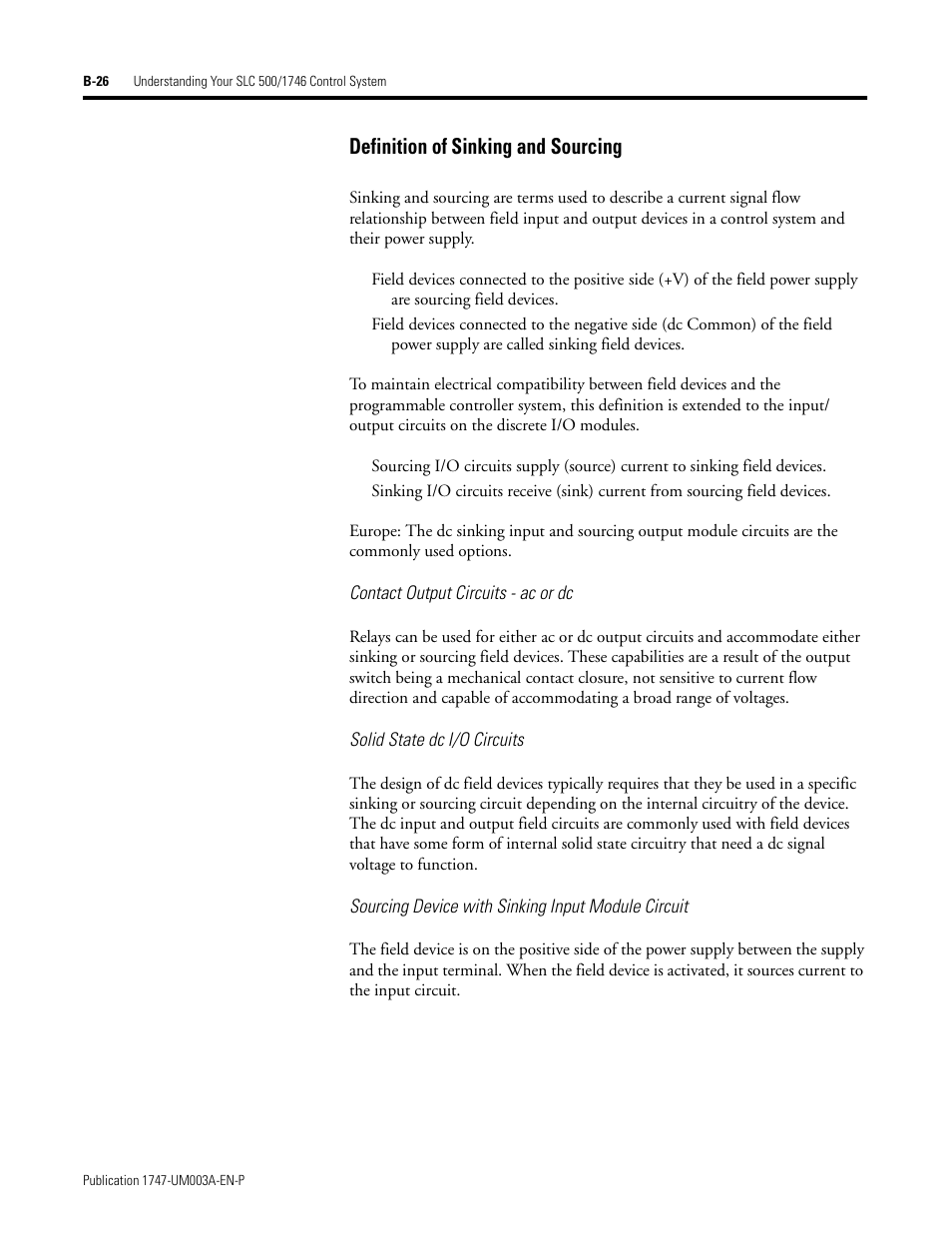

Definition of sinking and sourcing – Rockwell Automation 1747-ACNR15 ControlNet Adapter Module User Manual User Manual
Page 118
