Linking Device Display Status
Appendix A

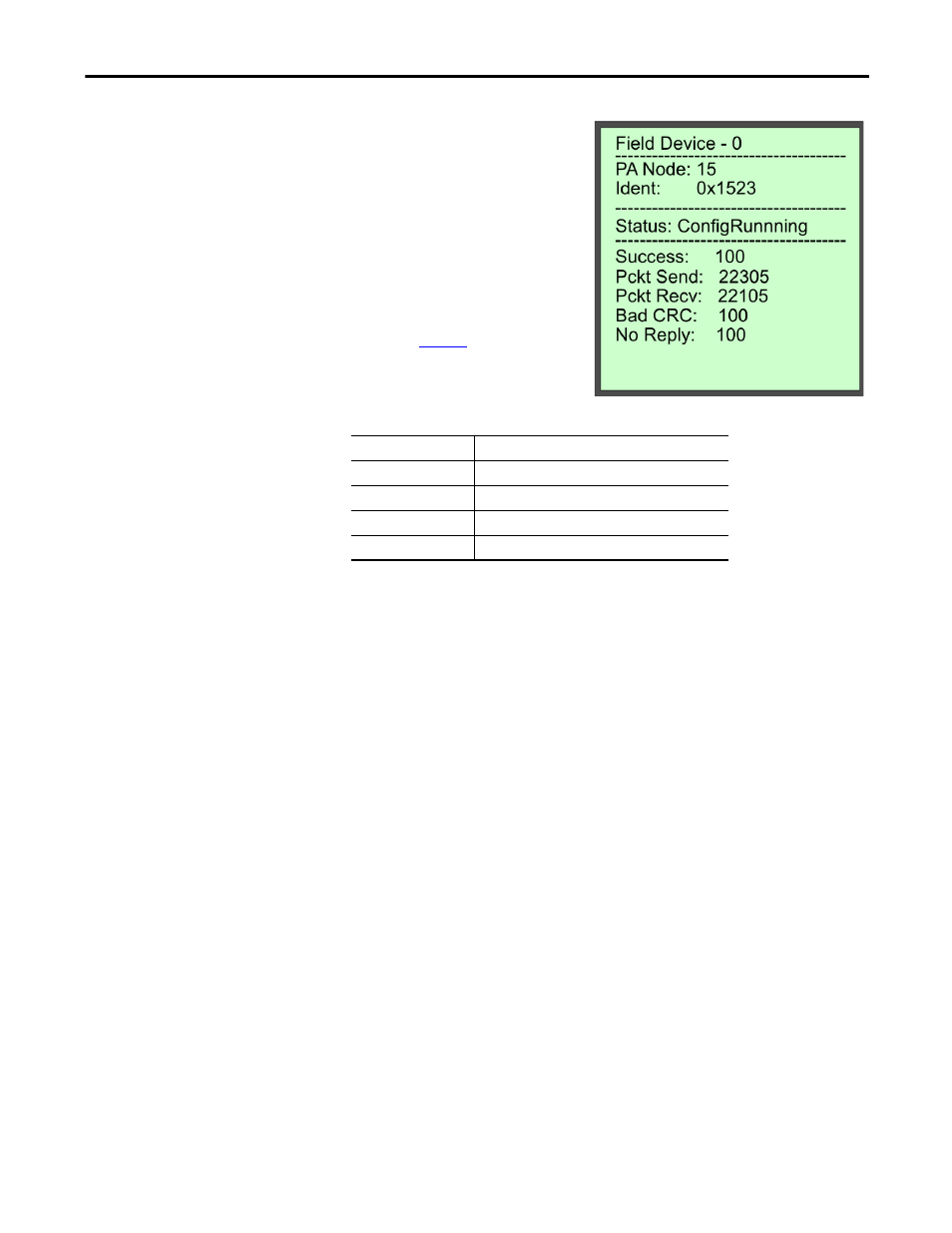

Field Device Page
The next 23 Field Device pages
display the status of each of the
field device indices.
PANode
: Displays the PA node
address.
Ident
: Displays the ident (identity)
number of the specific field device.
Status:
Displays the field device
status (see
Table 9
).
Table 9 - Field Device Status Descriptions
Success
:
Displays the data packets that are received as a percentage of packets
that are sent for the previous 100 packets.
Pckt Send
:
Displays the total number of data packets that are sent from the field
device.
Pckt Recv
:
Displays the total number of data packets that are received from the
field device.
Bad CRC
:
Displays the total number of bad CRC packets received.
No Reply
:
Displays the total number of data requests to which the field device
did not respond.
Status Message
Description
Not Connected
The device cannot be seen.
Online
The device is online but not configured.
ConfigRunning
The device is configured and exchanging data.
N/A
The device has not been added to the configuration.
