Linking Device Display Status
The lower portion of the main page shows the communication quality to each
field device represented as a percentage of data packets sent compared to data
packets received for each field device index (see
Table 8
).
Table 8 - Field Device Communication Quality

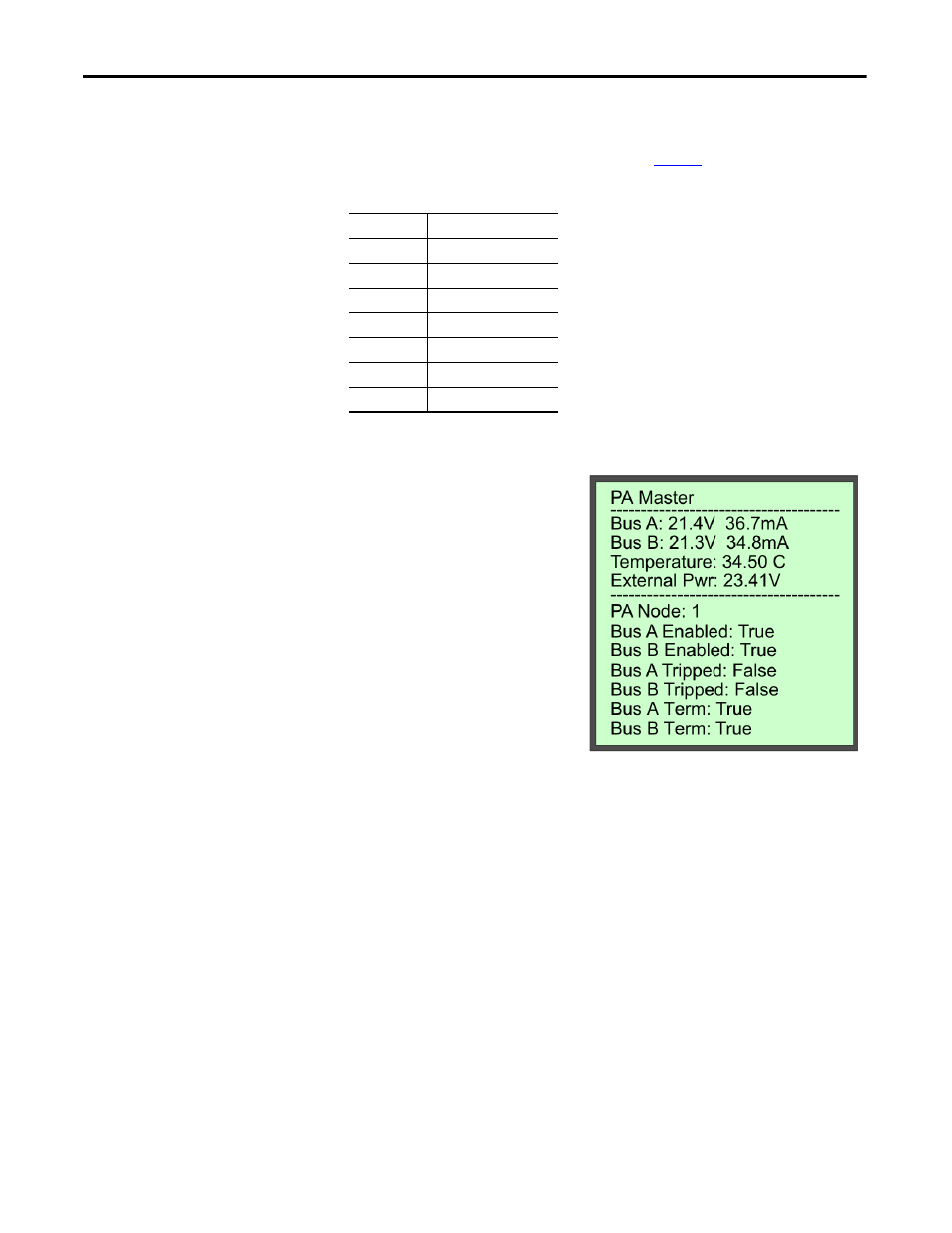

PA Master Page
The next page that is accessed by
the Page button is the PA Master
page.
Bus A/B:
Displays the bus
voltages and currents.
Temperature:
Displays the
internal temperature of the linking
device.
External Pwr:
Displays the power
supply voltage.
PA Node:
Displays the node
address of the linking device.
Bus A/B Enabled:
PA Bus A and/or PA Bus B is enabled for communication.
Bus A/B Tripped:
PA Bus A and/or PA Bus B has tripped indicating that there
was an over-current on either port.
Bus A/B Term:
The linking device is configured to terminate PA Bus A and/or
PA Bus B.
Display
Communication Quality
>>>
95+
>>
80+
>
70+
X
60+
XX
50+
XXX
Below 50
???
Unknown
